Pump Issue

post #1 of 15
Thread Starter

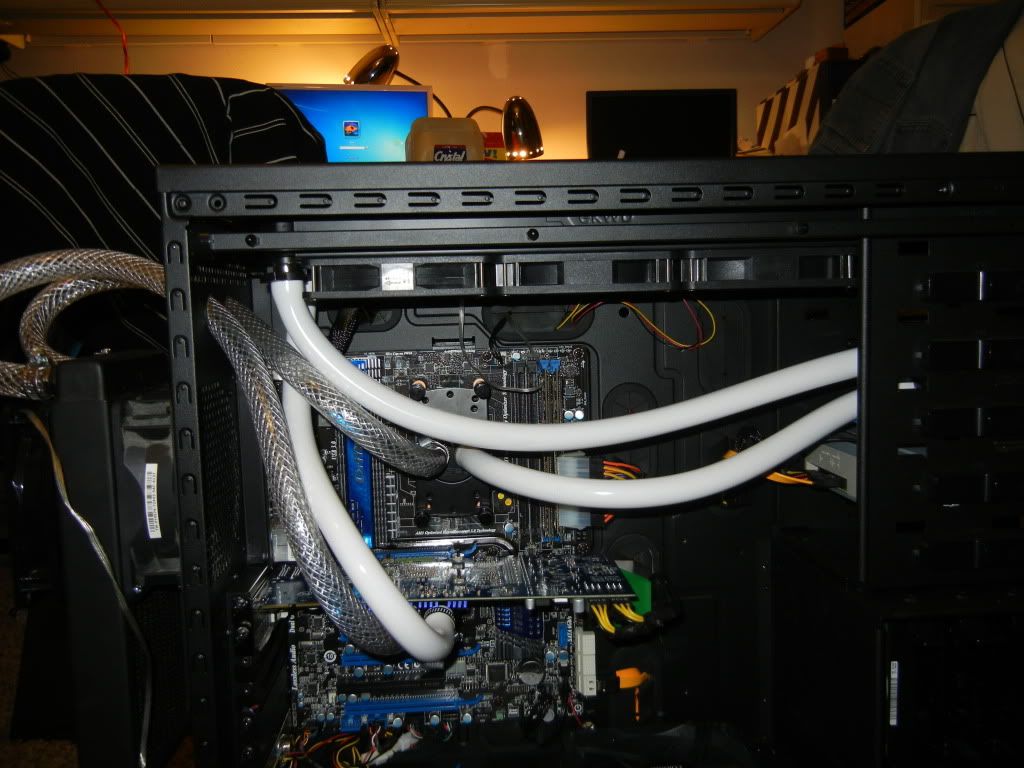

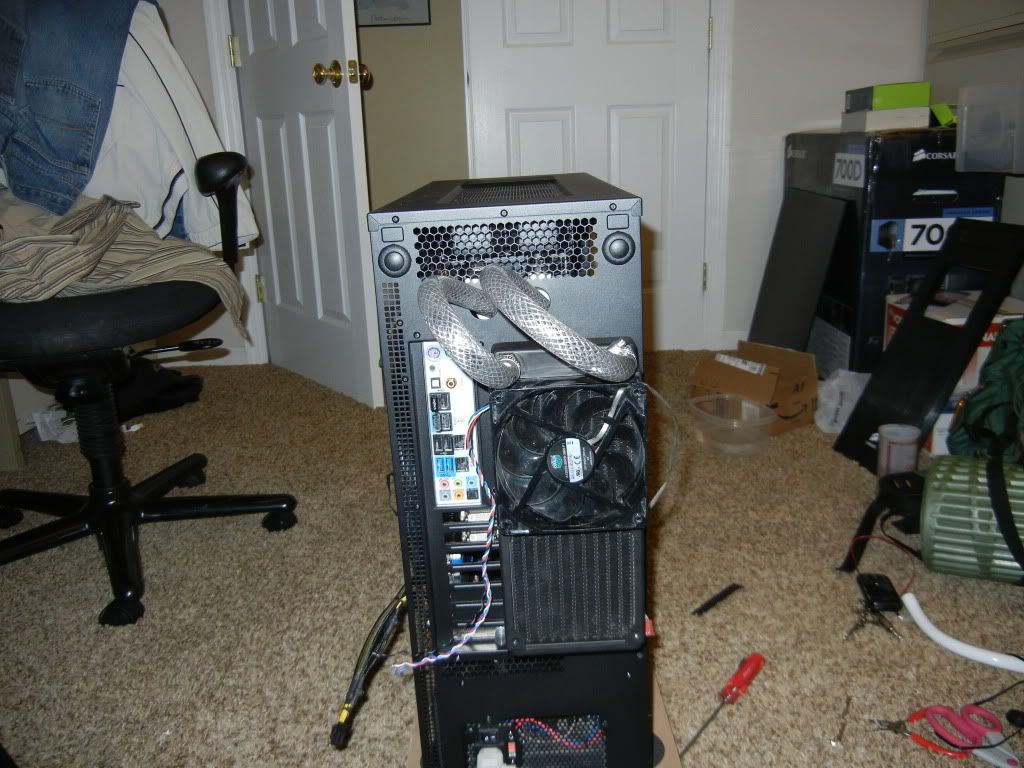

I just added my new radiator to my loop, using braided PVC tubing I got from home depot. I put the 240 on the back, and connected everything, but the tubing isn't filling up all the way, it's just kinda falling downhill once it gets into the case. I don't understand why.
Also, the pump is excrutiatingly loud.



The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
post #2 of 15
That tubing is designed for household pressure. You're killing your pump!
post #3 of 15
Quote:
Originally Posted by mongoloid View Post
That tubing is designed for household pressure. You're killing your pump!
lolno.
post #4 of 15
Thread Starter
Quote:
Originally Posted by mongoloid View Post
That tubing is designed for household pressure. You're killing your pump!
What exactly does that mean? That the tubing is more restrictive? How would it kill my pump?
The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
post #5 of 15
Quote:
Originally Posted by mongoloid View Post
That tubing is designed for household pressure. You're killing your pump!
What? Tubing isn't going to influence the pump like that.

Sounds like your pump is drawing water in, a fairly common problem when bleeding the loop with those res / pump combos. There is a guide on here to bleed it easily, I'll find it and link it.

Edit:

Guide by Simpletech here. It is nothing to do with your tubing.

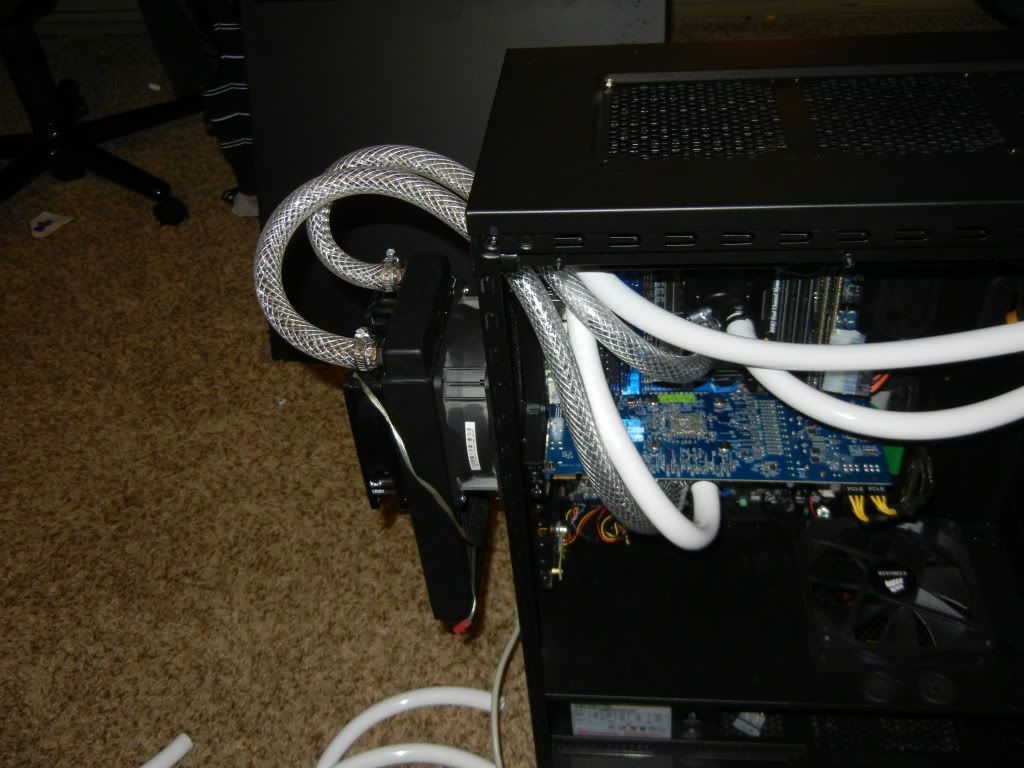

I can even see the bubble in the pump inlet pipe (second photo). You are just recirculating some air.
Edited by GingerJohn - 1/22/11 at 4:31pm
Main
(21 items)

HTPC
(10 items)


CPUMotherboardGraphicsRAM
i5 2550k P8P67 Pro Sapphire HD 7950 G.Skill RipJaws X 1600 Cas 9
Hard DriveHard DriveHard DriveCooling
Corsair Force 120 WD Blue 500GB WD Caviar Green 1TB XSPC RayStorm
CoolingCoolingCoolingCooling
RX240 MCR 220 EK 7950 Copper Acetal  DDC-1T
OSMonitorMonitorKeyboard
Windows 7 64-bit Dell U2311H Oculus Rift DK2 Ducky Shine 3 MX Brown
PowerCaseMouseAudio
Corsair TX 750W CoolerMaster CM690 II G500 Klipsch ProMedia 2.1
Audio
Asus Xonar DX
CPUMotherboardRAMHard Drive
A10-6800K Gigabyte GA-F2A85XN-WIFI G Skill 1600 CAS9 Kingston SSD Now 60GB
Hard DriveOptical DriveCoolingOS
WD Caviar Blue 1TB LG Slim Blu-Ray player Silverstone NT06-PRO  Widows 7 Home Premium
PowerCase
Silverstone Sfx Series ST45SF 450W Silverstone SG05
  hide details
Reply
Main
(21 items)

HTPC
(10 items)


CPUMotherboardGraphicsRAM
i5 2550k P8P67 Pro Sapphire HD 7950 G.Skill RipJaws X 1600 Cas 9
Hard DriveHard DriveHard DriveCooling
Corsair Force 120 WD Blue 500GB WD Caviar Green 1TB XSPC RayStorm
CoolingCoolingCoolingCooling
RX240 MCR 220 EK 7950 Copper Acetal  DDC-1T
OSMonitorMonitorKeyboard
Windows 7 64-bit Dell U2311H Oculus Rift DK2 Ducky Shine 3 MX Brown
PowerCaseMouseAudio
Corsair TX 750W CoolerMaster CM690 II G500 Klipsch ProMedia 2.1
Audio
Asus Xonar DX
CPUMotherboardRAMHard Drive
A10-6800K Gigabyte GA-F2A85XN-WIFI G Skill 1600 CAS9 Kingston SSD Now 60GB
Hard DriveOptical DriveCoolingOS
WD Caviar Blue 1TB LG Slim Blu-Ray player Silverstone NT06-PRO  Widows 7 Home Premium
PowerCase
Silverstone Sfx Series ST45SF 450W Silverstone SG05
  hide details
Reply
post #6 of 15
Well I...braided pvc? I was under the impression that nothing other than tygon should be used on a loop. My mistake, I'll retract my comment.

I thought maybe the PVC didn't have the same flow quality lab. grade 3603 does.
post #7 of 15
The pump noise is caused by air in the loop. The reason the tubing isn't filling all the way is because there isn't enough flow to force the air to leave. Try tiling the case around while running the pump (make sure the reservoir cap is firmly screwed in) to get the air out. The pump noise should go away once you get all of the air bubbles out of your loop.
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
post #8 of 15
The x20 pump does not have a lot of head pressure, only 6.5ft. That happend to me, and what it actually is IS a LOT of air. It's going to take you forever to get it bled out and running properly. Literally hours and hours it's going to take you turning the psu on, off, on off, to fill it up. Not to mention you probably have 10 feet of tubing total, and it's going up and down, up and down, all over the place. Good luck though.

Edit.... WAIT, is that a mcp355 in there?
Edited by Jonesey I7 - 1/22/11 at 4:33pm

CPUMotherboardGraphicsRAM
Evo VIII 475whp/405tq NONE BATTLEFIELD UNTIL
Hard DrivePowerCase
COMES OUT!!!!!
  hide details
Reply

CPUMotherboardGraphicsRAM
Evo VIII 475whp/405tq NONE BATTLEFIELD UNTIL
Hard DrivePowerCase
COMES OUT!!!!!
  hide details
Reply
post #9 of 15
Thread Starter
Quote:
Originally Posted by charliehorse55 View Post
The pump noise is caused by air in the loop. The reason the tubing isn't filling all the way is because there isn't enough flow to force the air to leave. Try tiling the case around while running the pump (make sure the reservoir cap is firmly screwed in) to get the air out. The pump noise should go away once you get all of the air bubbles out of your loop.
It seems to be working itself out now, it's just that I'm used to it only taking about 5 minutes for all of the big air bubbles to go away and the pump to quiet down. I was just worried because it's been about 25 minutes.
The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
The Behemoth
(13 items)


CPUMotherboardGraphicsRAM
1090t @ 4.2 MSI 890FXA-GD70 Gigabyte non-reference 5850 4gb OCZ Platinum DDR3
Hard DriveOptical DriveOSMonitor
2x 500gb Spinpoint F3 MSI DVD-RW Ubuntu 10.10 I-INC 25", Asus 24"
KeyboardPowerCaseMouse
Das Model S Professional Ultra LSP 750w 700D Purple Logitech
  hide details
Reply
post #10 of 15
Quote:
Originally Posted by Jonesey I7 View Post
The x20 pump does not have a lot of head pressure, only 6.5ft. That happend to me, and what it actually is IS a LOT of air.

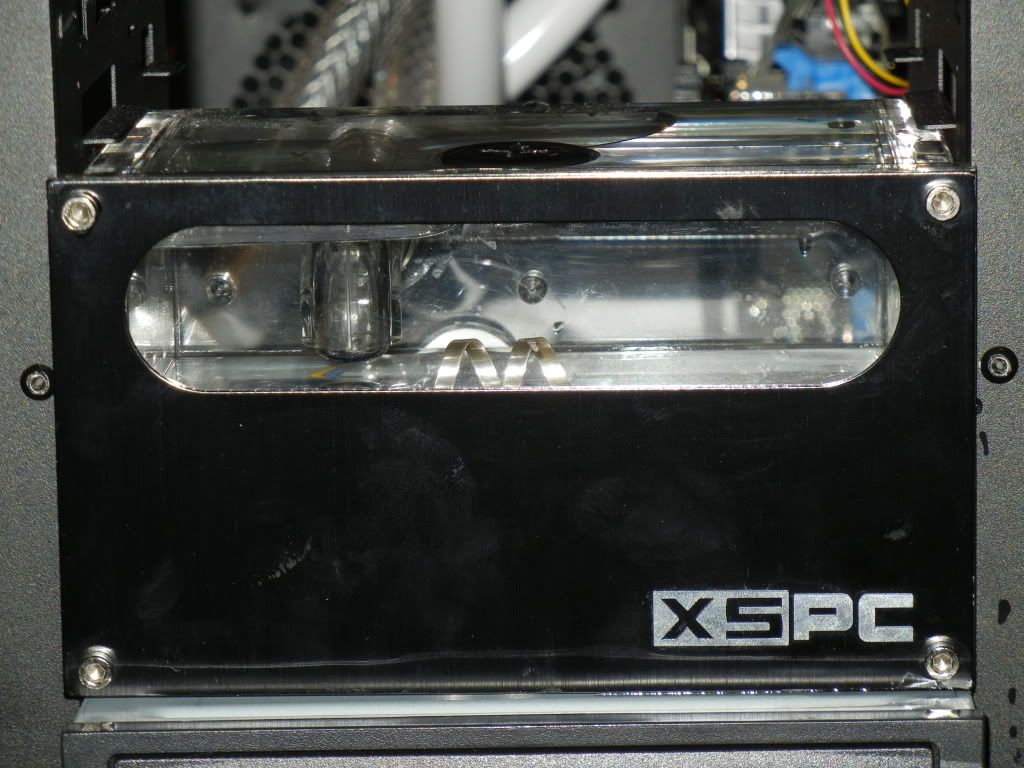

Good info, but that isn't an X2O pump. It looks like the XSPC dual bay res for a single Laing pump, using either a MCP 350 or a MCP 355, both have plenty of power so long as you have water, and no air, at the inlet.
