Tango

Tango is a social dance and musical genere. Its lyrics and music are marked by nostalgia, expressed through melodic instruments like the bandoneon. Originated at the ending of the 19th century in the suburbs of Buenos Aires, it quickly grew in popularity and was internationally spread.

Fileteado is a type of artistic drawing, with stylised lines and flowered, climbing plants typically used in Buenos Aires, Argentina. It is used to adorn all kind of beloved objects, signs, taxis, lorries and even the old Colectivos, Buenos Aires' buses. The Gothic letter, which the filleters called as' esgróstica ", with italics letter, were most used in this art.

Filetes (the lines in Fileteado style) are usually full of colored ornaments and symmetries completed with poetic phrases, sayings and aphorisms, both humorous or roguish, emotional or philosophical. They have been part of the culture of the Porteños (inhabitants of Buenos Aires City) since the beginnings of the 20th century and rather tango.

This work does not attempt to represent the "tango" or "Fileteado", as it would be a very charged work, but it takes its influences for make a more refined case.

The case will be divided into parts that represent the tango in its various forms, the front, represents the tango song,
up: the tango music,
a side: the tango dance,
the other side: the tango art.















Edited by ArgOs - 7/12/11 at 7:55pm
post #2 of 29
Thread Starter
The victim

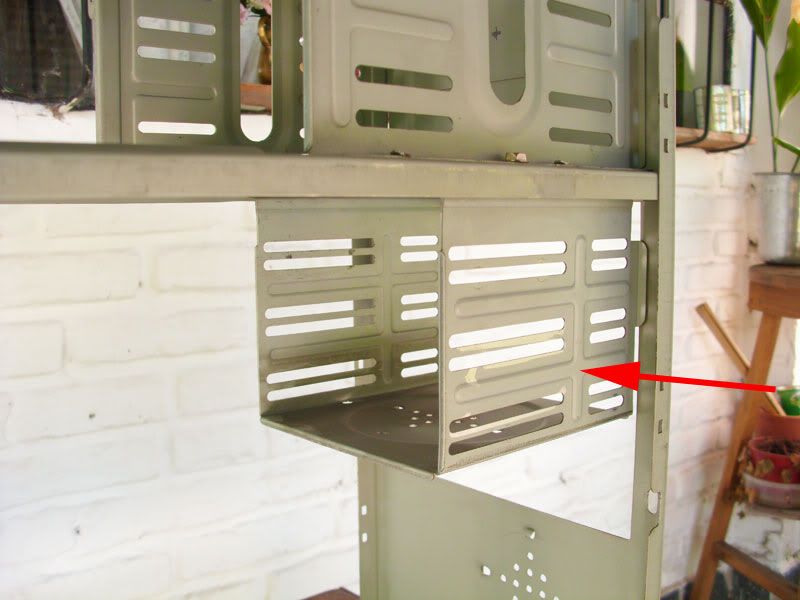

It's a big old cabinet AT format.thumbsupsmiley.png

a single cover.

inside

This is fantastic, the mother tray is sliding.biggrin.gif

The modder

[ame]http://www.youtube.com/watch?v=oe_1W_UThT8[/ame]
Edited by ArgOs - 2/12/11 at 2:36pm
post #3 of 29
Thread Starter
Begin the modding

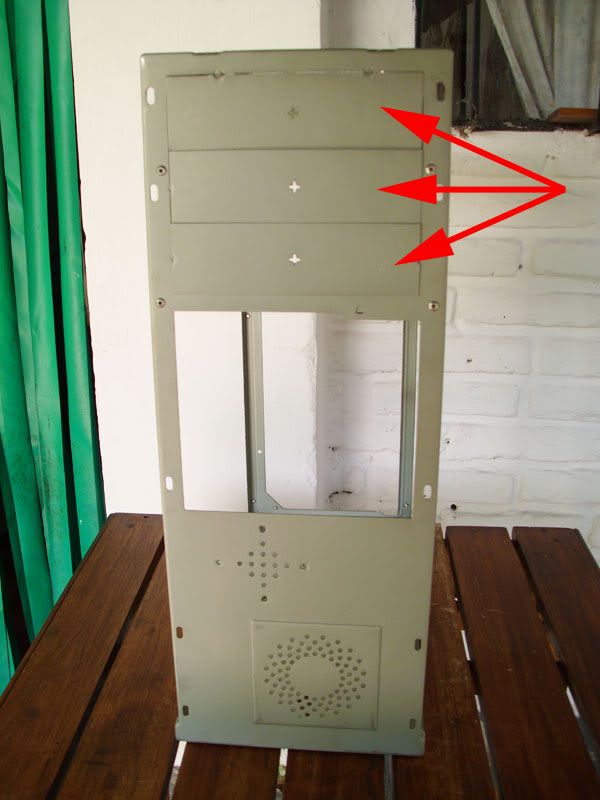

first, removing some parts.

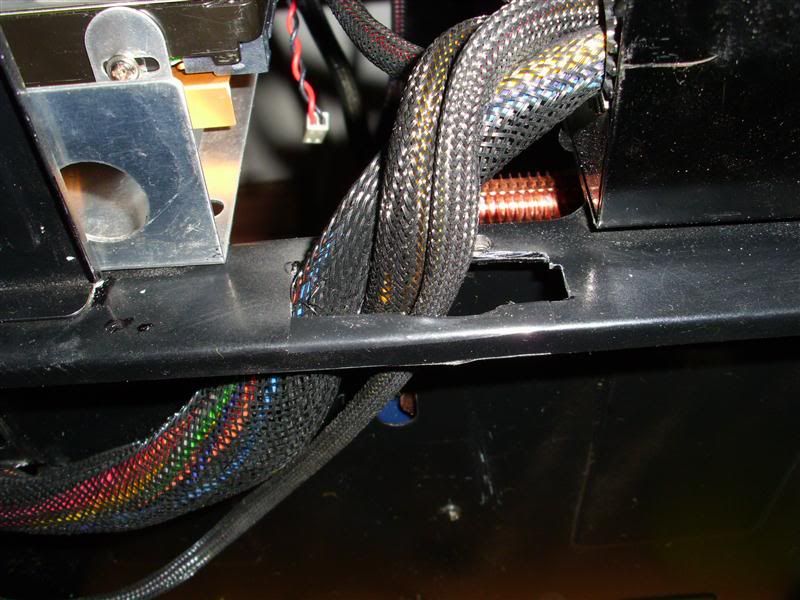

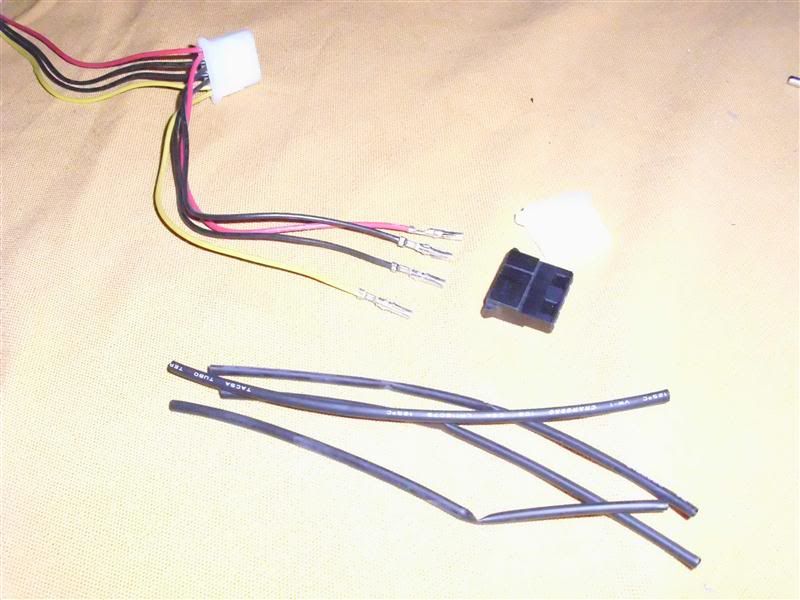

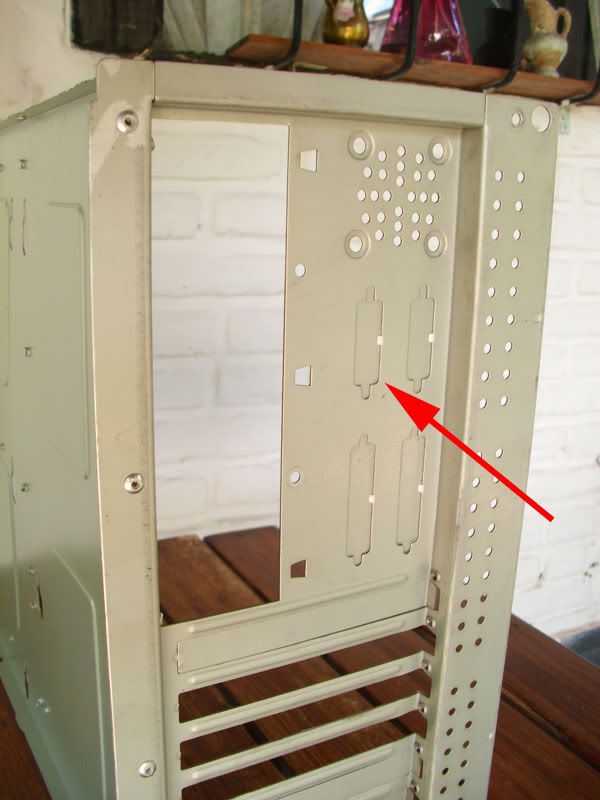

remove the old connectors

creating a new one.

with high technology.

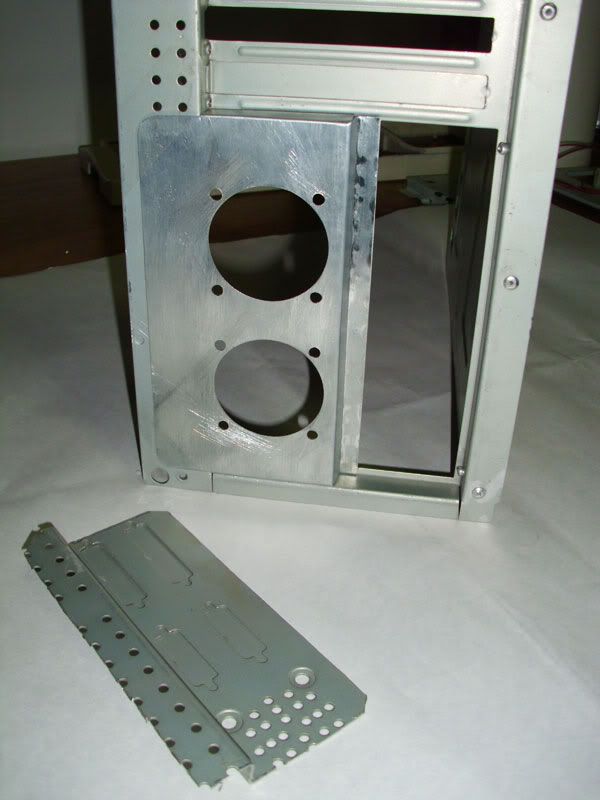

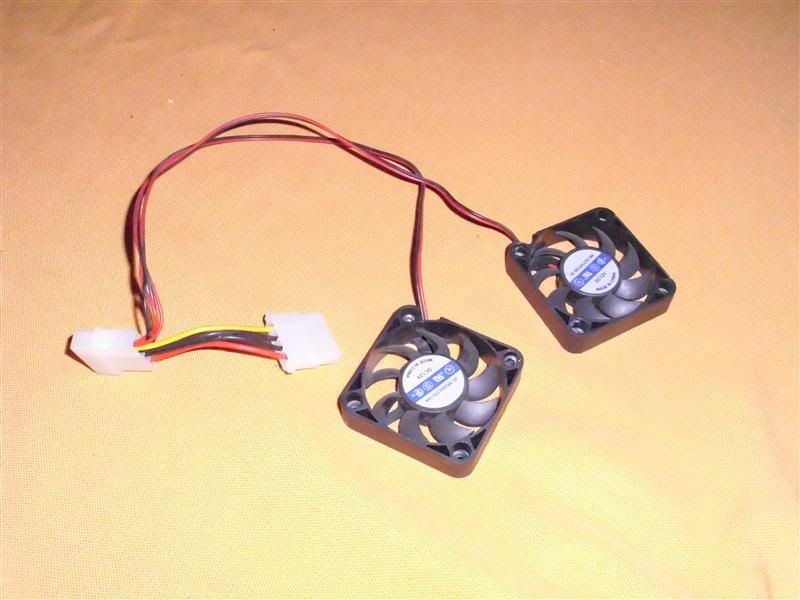

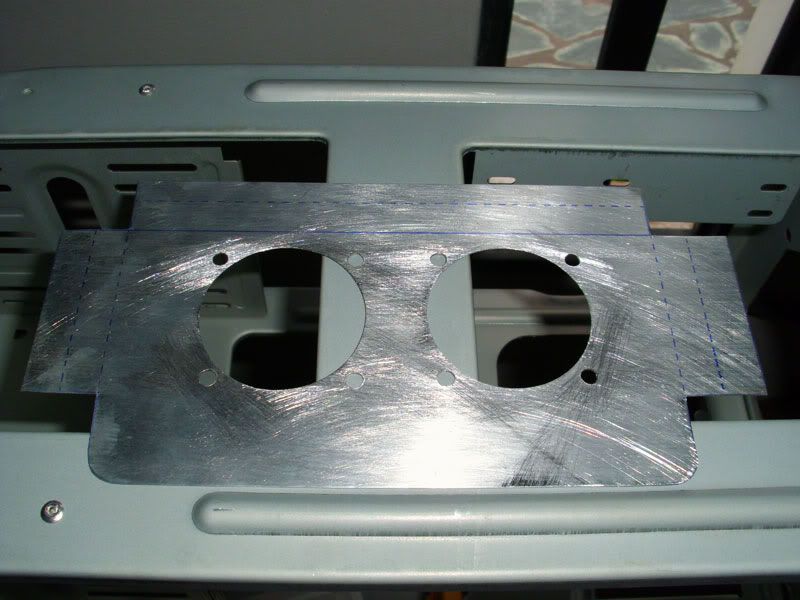

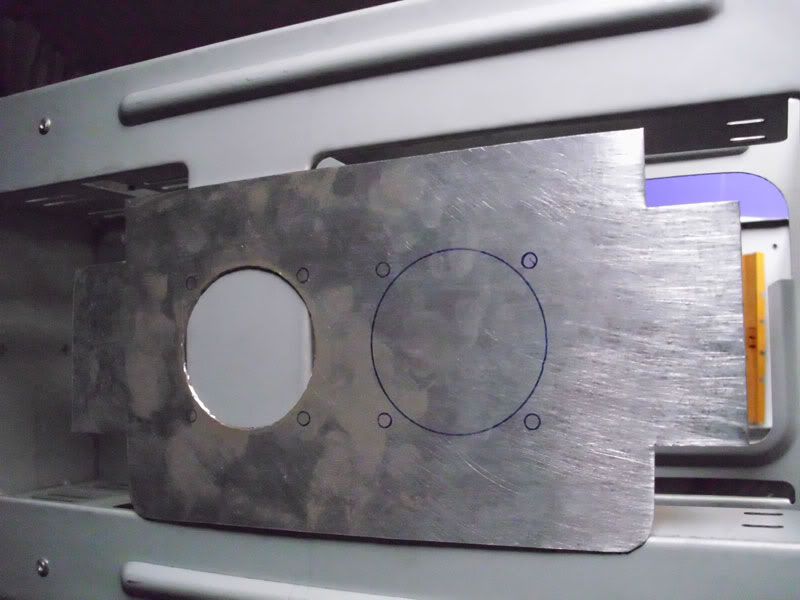

was possible to put a 80mm fan, maybe 2 but I decided to put 2 50mm noiseless fans.

more high tech
post #4 of 29
Thread Starter
Changing the direction of the hard disk.
because I need more space biggrin.gif
I remove the supports.


new supports.
post #5 of 29
Thread Starter
Dance begins

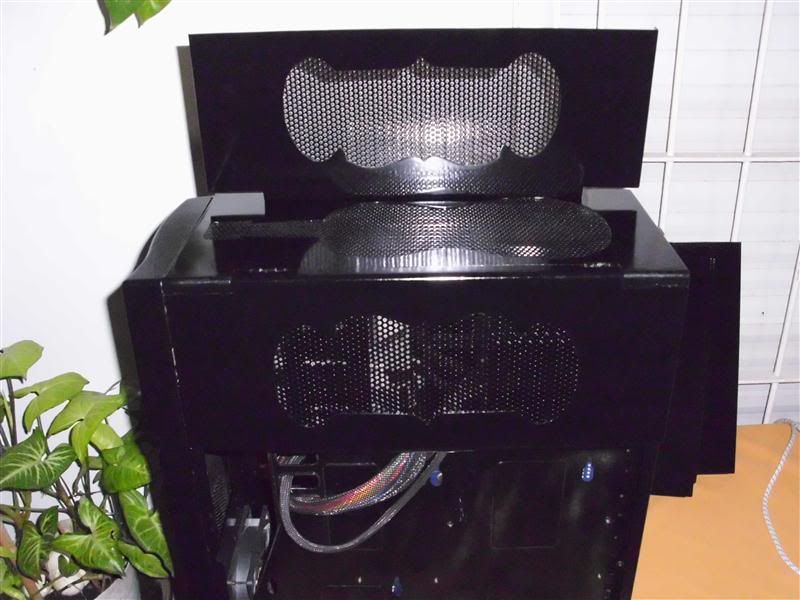

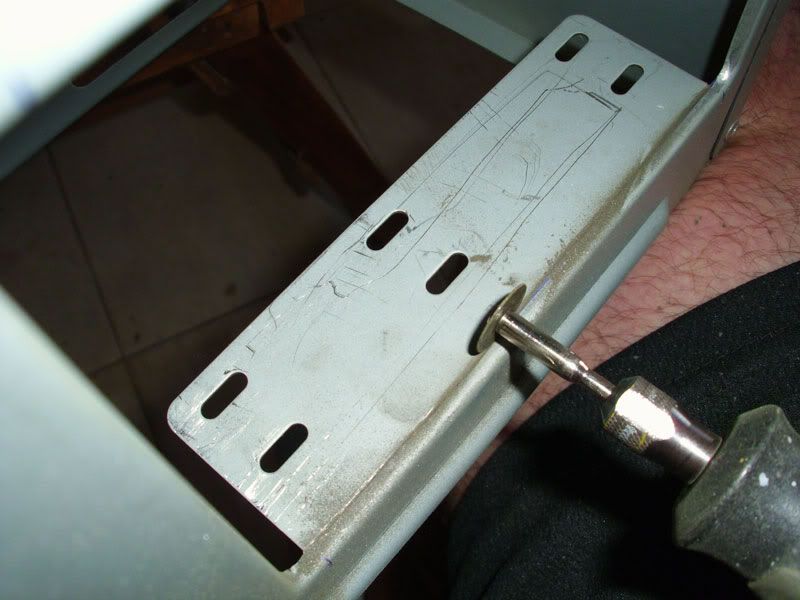

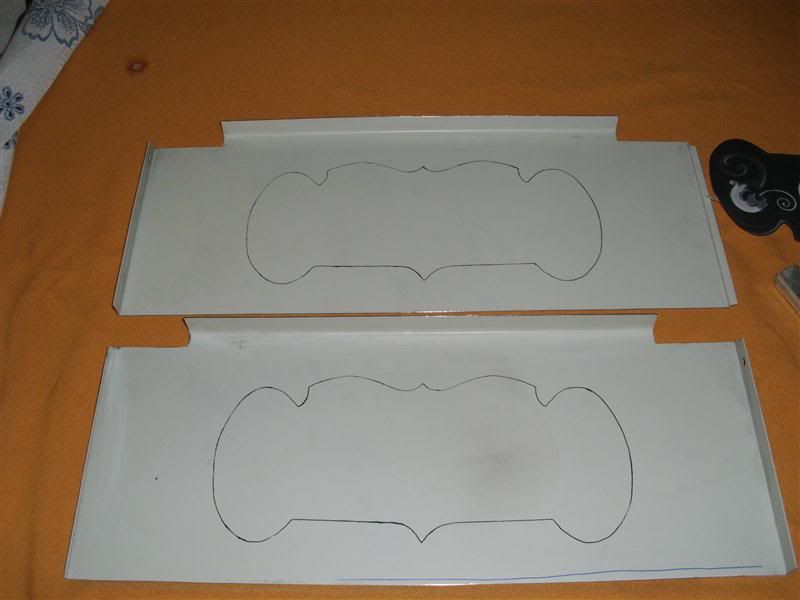

I made ​​a window to the top cover.

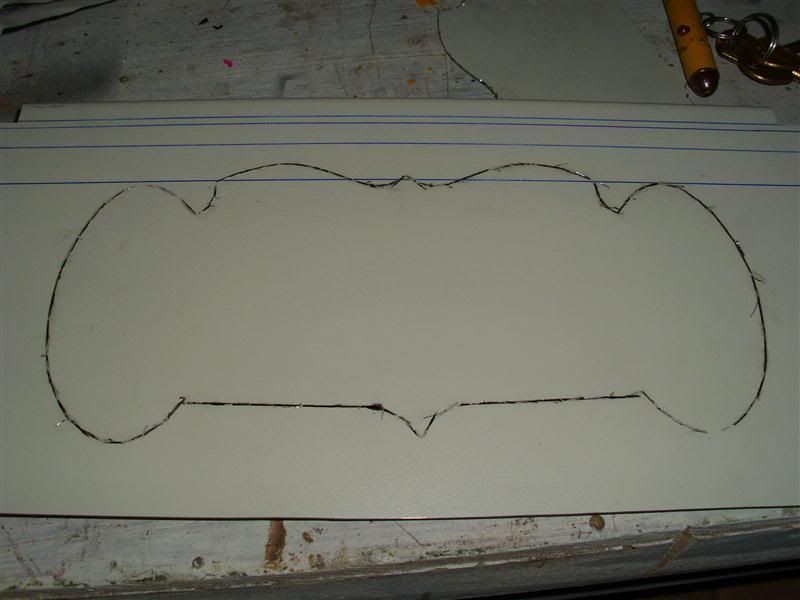

cut side.

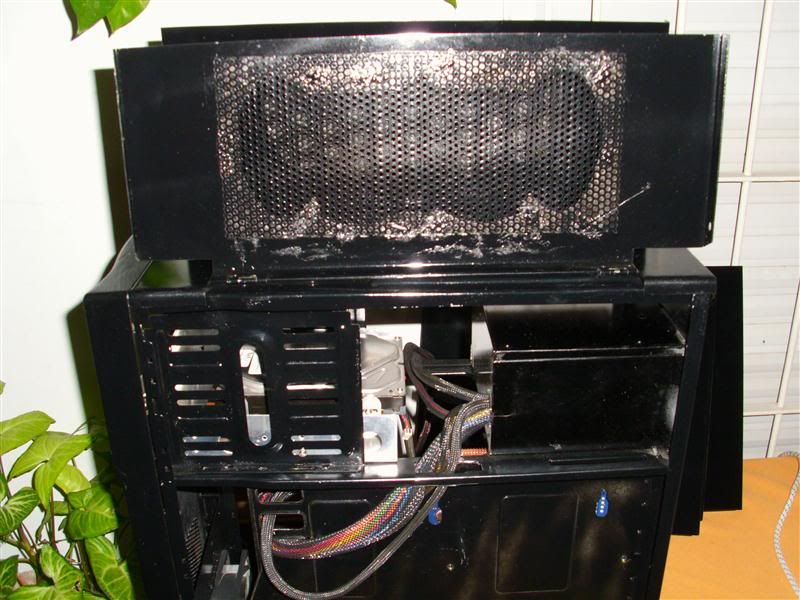

I'll put behind metal mesh for better ventilation.

and old school video biggrin.gif.

[ame]http://www.youtube.com/watch?v=vvcOa1GNraU[/ame]
post #6 of 29
Thread Starter
One of the first musical instruments of the tango was guitar, played it Carlos Gardel, how seen in this photo in New York,1934.

here work, which I will build on top of the case.

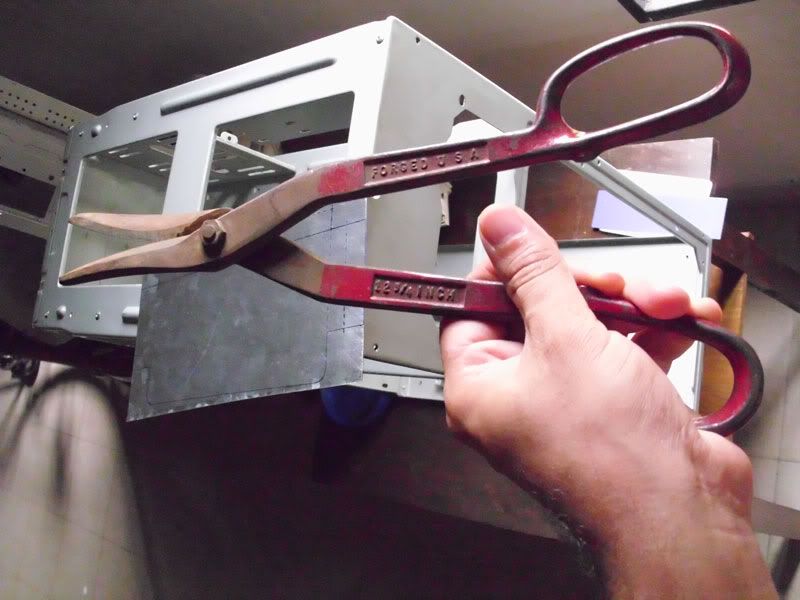

cut.

I created new feet to the case, folding a sheet metal.

I put a rubber between the foot and the base.

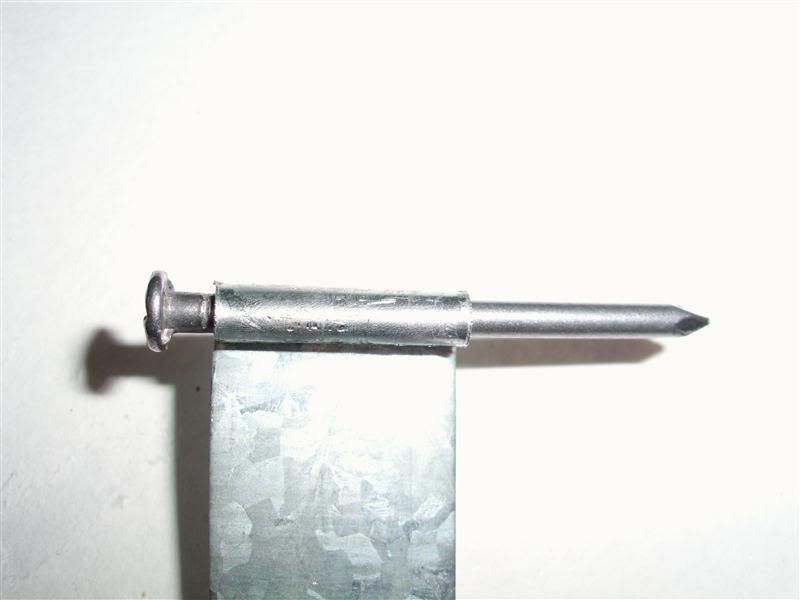

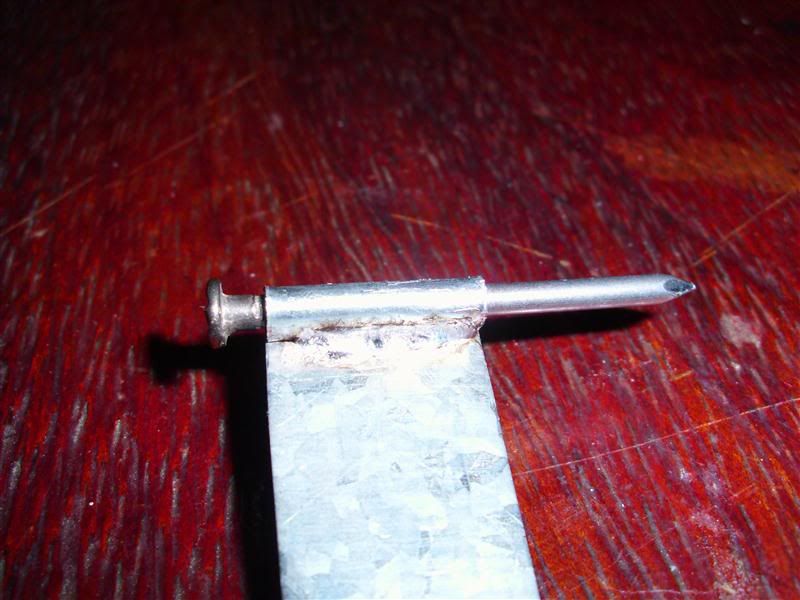

I had problems to get hinges, so I decided to create them myself, with a sheet metal and nails.

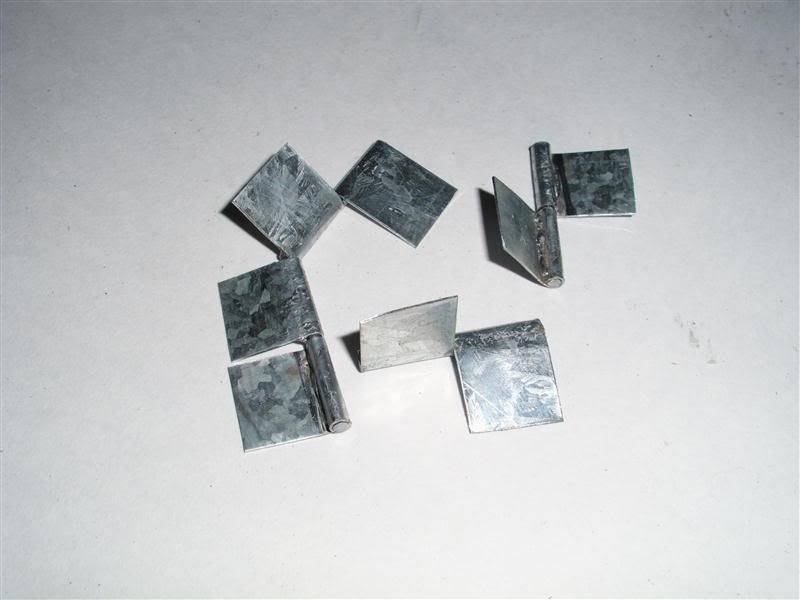

I weld it.
post #7 of 29
Thread Starter
Side of Fileteado

The design of the principal side corresponds to Tango logo design.

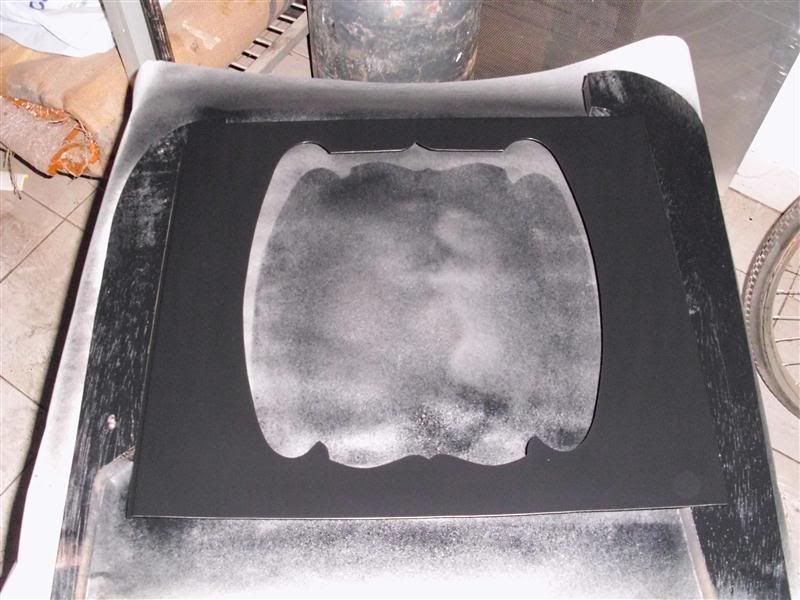

cut it

paint it

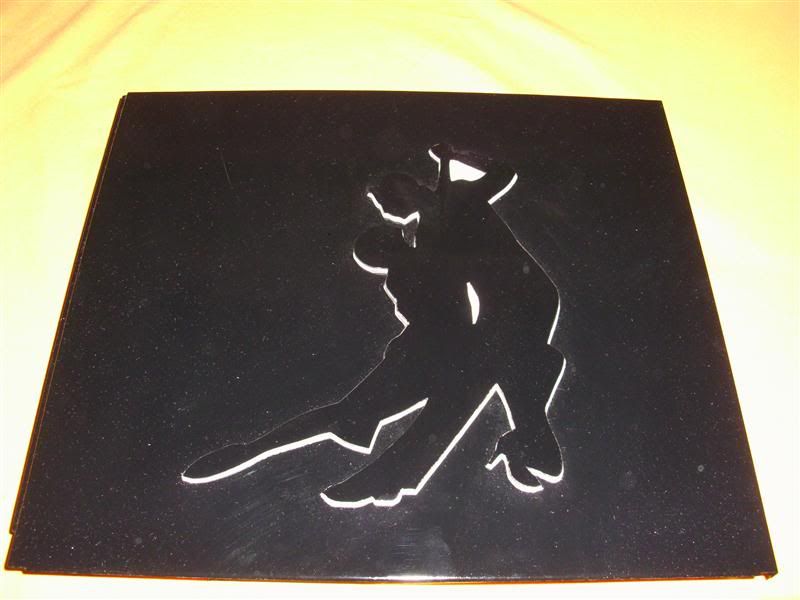

engraving of polycarbonate.

finalized

paint the rest of case.

finally I decided to change the hinge created by my by others purchased:o

I cut to the air intake by the front.

Many must think that I am a fan of the tango, really little, I like metal, but as well as the metal is inspired by classical music, some are inspired by the tango too. band.gif
A solo played by Ian Gerbino with some influences from Astor Piazzolla (Argentinian; 1921-1992). "I was listening to some of his awesome masterpieces like Libertango, Adios Nonino, among others, and this solo came to my mind".
[ame]http://www.youtube.com/watch?v=ZB7aIHajROM[/ame]
post #8 of 29
Thread Starter
Tango Dance

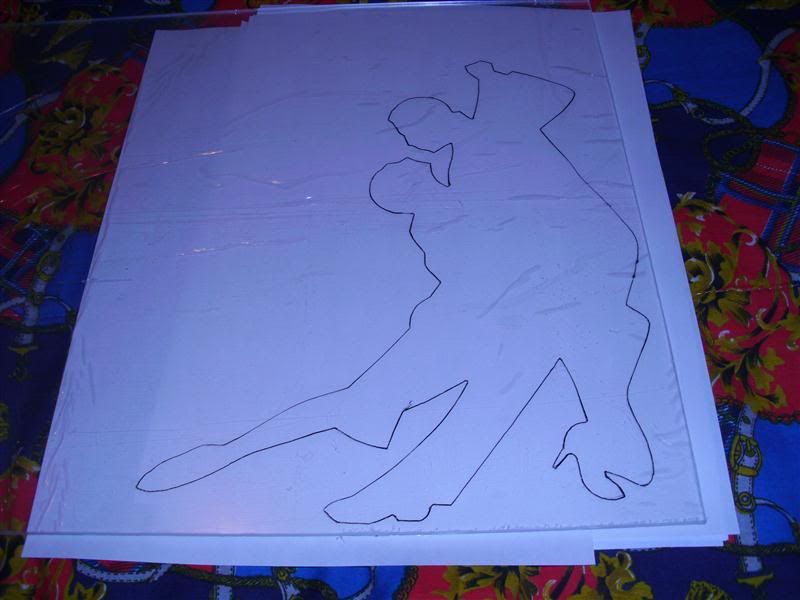

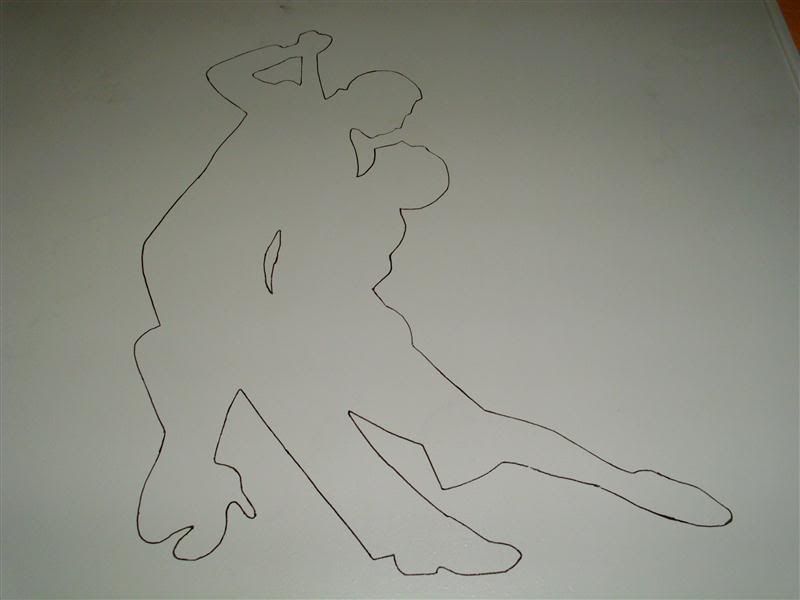

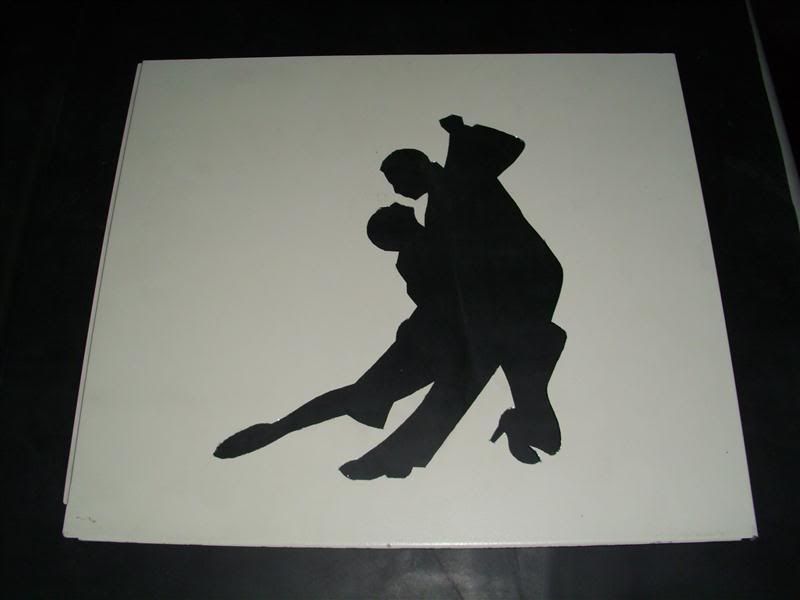

Start with the side of the dance. I draw the acrylic partner dancing.

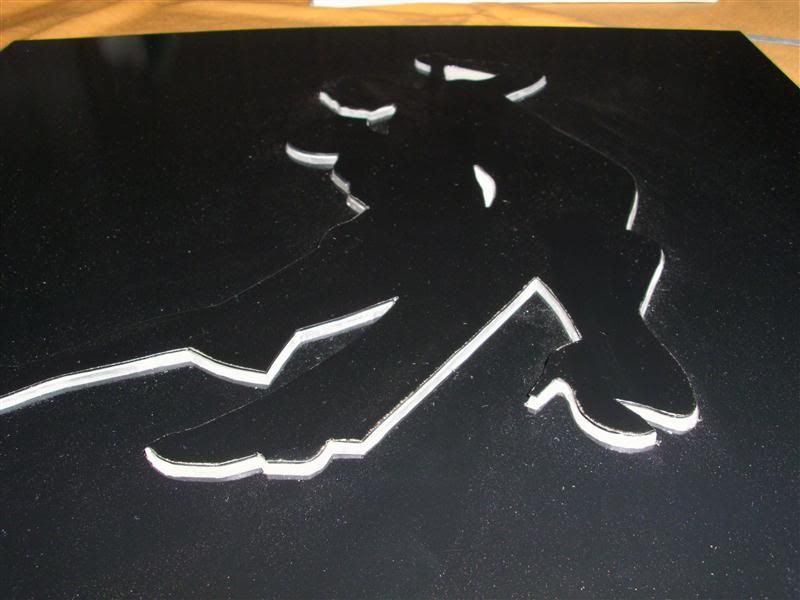

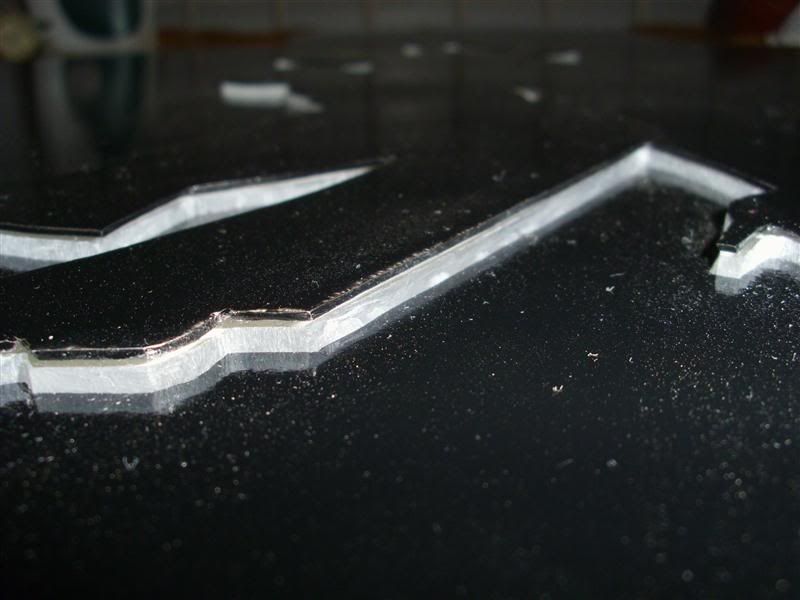

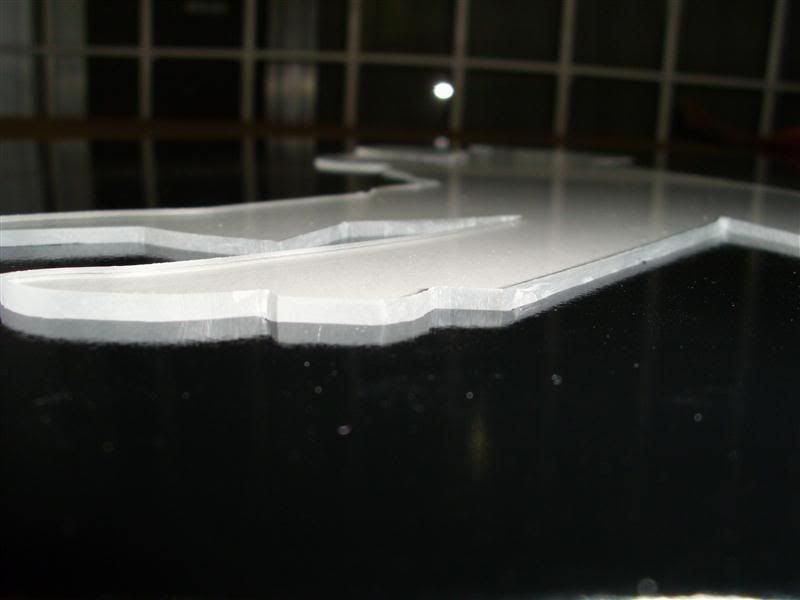

I cut the figure.

I glue the acrylic base.

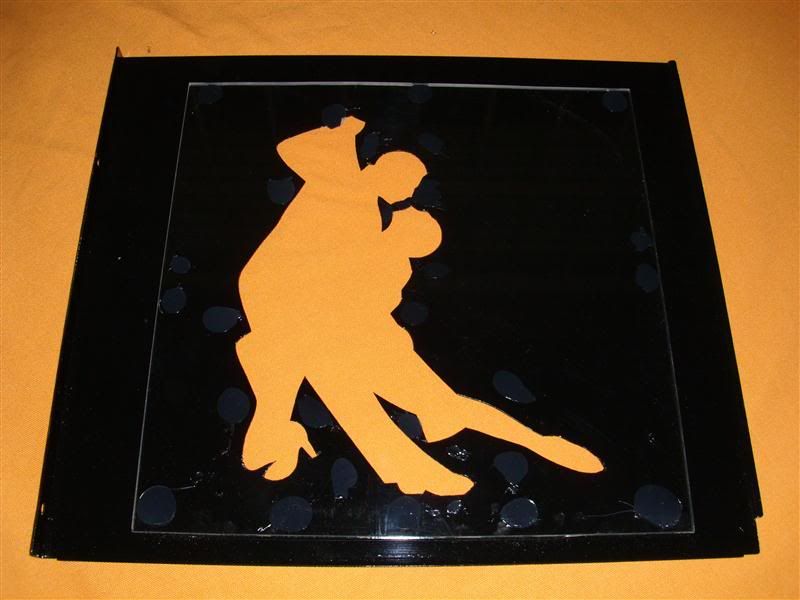

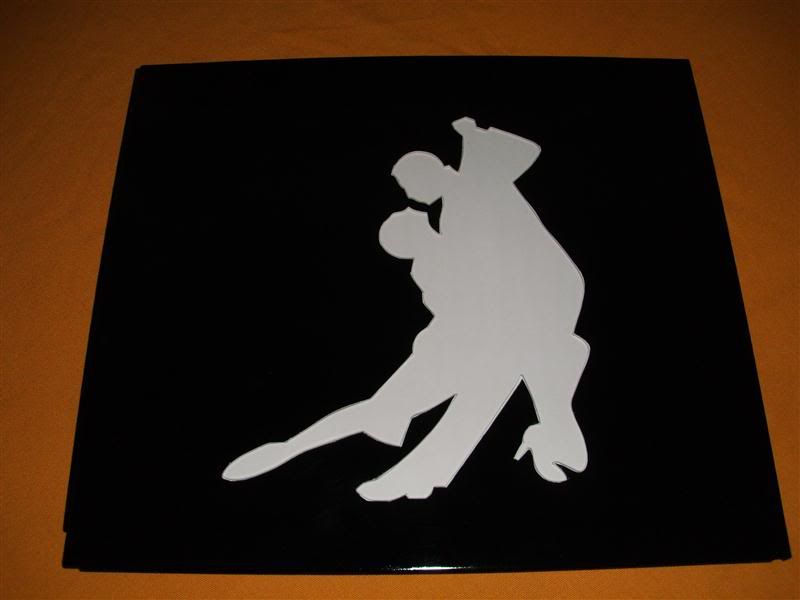

then paste the cut acrylic

and then paste the original plate.

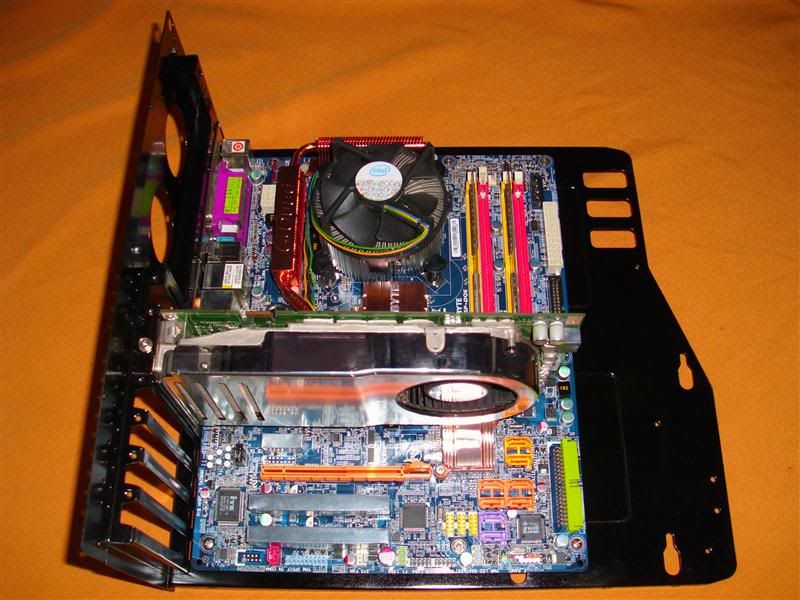

I put the motherboard in place.

the modified HD support

beginning of the assembly.

I cut to pass the wiring.

apologize for so much dust frown.gif
That's all folks.
for the moment biggrin.gif
Edited by ArgOs - 6/26/11 at 8:20pm
post #9 of 29
Thread Starter
The last tango in Argentina

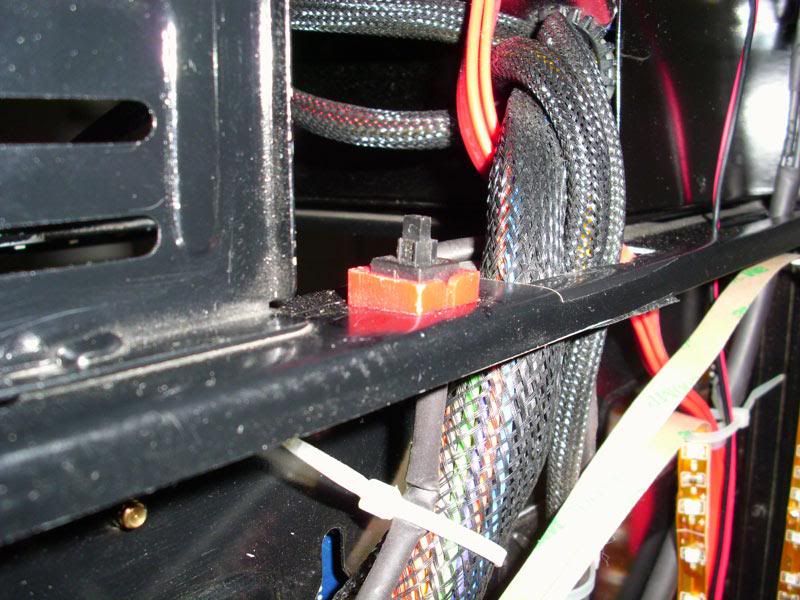

the power button is hidden inside the case.

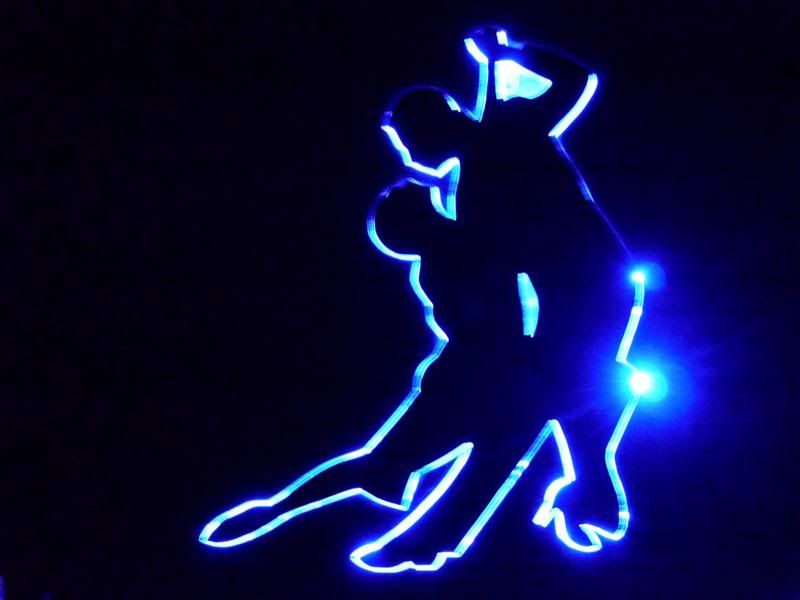

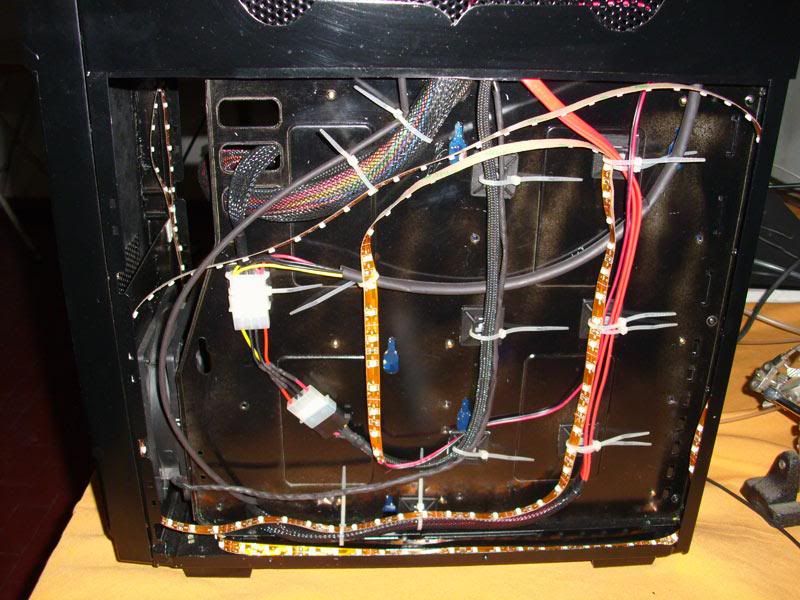

Was placed inside the case 5 meters LEDs.biggrin.gif

fans back.

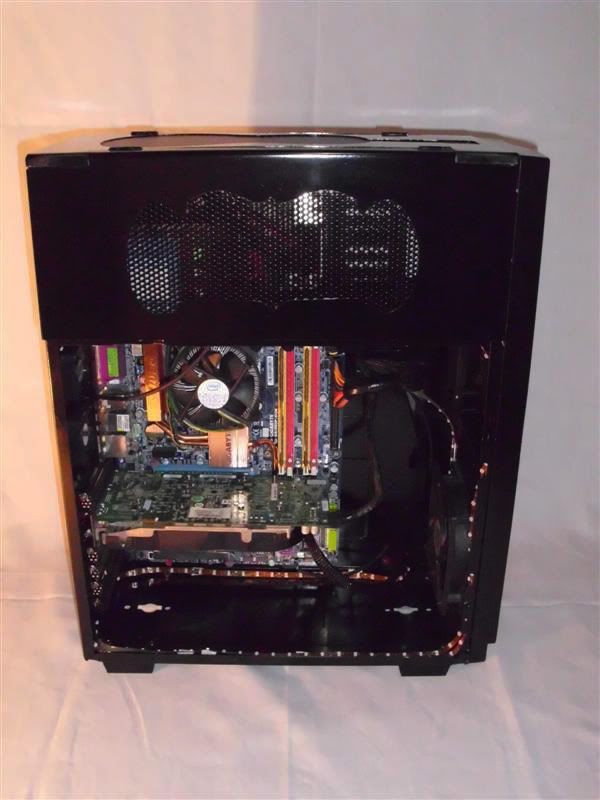

some pictures of the finished work





in the first post are the others.
(For a stupid error mine, I deleted a lot of pictures and I'm trying to recover them.)
Edited by ArgOs - 7/12/11 at 7:53pm
post #10 of 29
Thread Starter
Some details that were previously also more photos and a video last dance tango.

back panel.

Hide power button

the new front.

fans back

other photos.

and for the end of a big dance tango salon.
[ame]http://www.youtube.com/watch?v=9O9T43ItfI0[/ame]

Thank you very much.
