NVidia GTX 570 SLI Scaling

post #1 of 6
Thread Starter
Thought you would like this...

Did a few tests today.

Here it goes...

Configuration

- P6T DELUXE V2
- Core i7 920 D0 @ 4.2Ghz HT OFF (1.28v)
- 6GB DDR3 OCZ CAS 7 @ 800Mhz
- NVidia EVGA GTX 570 SLI (266.58_desktop_win7_winvista_64bit_english_whql) - Stock (732/1900)
- ATI 5970 Black Edition (amd_catalyst_11.1a_win7_jan26_whql) - Overclocked to 850/1200
- Corsair HX1000W 80A
- SSD OCZ Vertex 2 60GB + 3 x Seagate 500GB (Raid 0)
- Windows 7 x64 Ultimate

All tests were run at 1920 x 1080 except 3D Mark Vantage/2011 Performance Preset.









Codemasters Dirt 2 - AA8X - Max Settings





SLI GAIN

Min. FPS: 62,04%
Avg. FPS: 74,95%

Codemasters F1 2010 - AA8X - Max Settings





SLI GAIN

Min. FPS: 40,35%
Avg. FPS: 45,9%

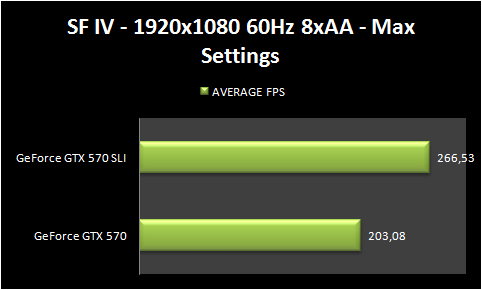

Street Fighter IV - 1920x1080 60Hz 8xAA - Max Settings



GTX 570

SCORE: 13382
AVERAGE: 203.08FPS

GTX 570 SLI

SCORE: 16609
AVERAGE: 266.53FPS

SLI GAIN

AVERAGE: 31,24%

Heaven Benchmark v2.1 - DirectX: 11 - Shaders: High - Tess: Extreme - Aniso: 16x - AA: 8x - 1920x1080





SLI GAIN

FPS: 94,54%
Min: 54,37%
Max: 106,02% (Ouch!)

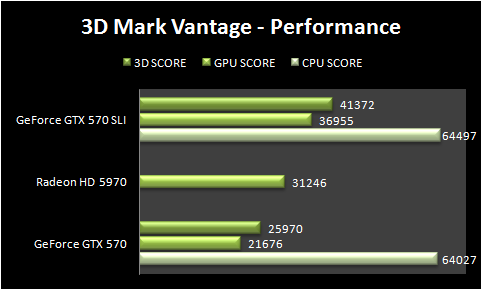

3D Mark Vantage - Performance





SLI GAIN

3D SCORE: 59,30%
GPU SCORE: 70,48%
CPU SCORE: 0,73%

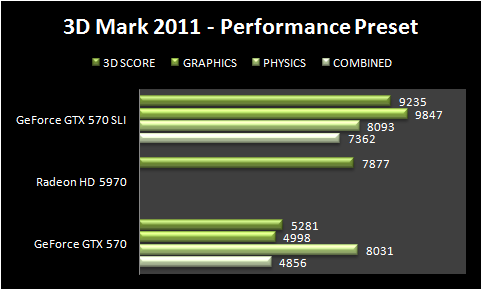

3D Mark 2011 - Performance





SLI GAIN

3D SCORE: 74,87%
GRAPHICS: 97,01%
PHYSICS: 0,72%
COMBINED: 51,6%

3D Mark 2011 - Extreme





SLI GAIN

3D SCORE: 80,34%
GRAPHICS: 88,96%
PHYSICS: 0,66%
COMBINED: 42,49%


Edited by McBacker - 2/12/11 at 7:50pm
Backer's RIG
(15 items)


CPUMotherboardGraphicsRAM
Core i7 3930K ASUS RAMPAGE IV FORMULA EVGA NVidia GTX 780 TI SuperClocked ACX 4 x 4GB DDR3 CORSAIR DOMINATOR 9-11-10-27 2T
Hard DriveHard DriveOptical DriveOS
SSD SAMSUNG 840 EVO 3 X 500GB SEAGATE (RAID 0) ASUS DVD-RAM Windows 8.1 x64
MonitorKeyboardPowerCase
Dell Ultrasharp U2711 - 27'' Logitech G15 Corsair HX1000W Corsair Obsidian 700D
MouseAudio
Logitech MX-400 ASUS XONAR DX
  hide details
Reply
Backer's RIG
(15 items)


CPUMotherboardGraphicsRAM
Core i7 3930K ASUS RAMPAGE IV FORMULA EVGA NVidia GTX 780 TI SuperClocked ACX 4 x 4GB DDR3 CORSAIR DOMINATOR 9-11-10-27 2T
Hard DriveHard DriveOptical DriveOS
SSD SAMSUNG 840 EVO 3 X 500GB SEAGATE (RAID 0) ASUS DVD-RAM Windows 8.1 x64
MonitorKeyboardPowerCase
Dell Ultrasharp U2711 - 27'' Logitech G15 Corsair HX1000W Corsair Obsidian 700D
MouseAudio
Logitech MX-400 ASUS XONAR DX
  hide details
Reply
post #2 of 6
Good reference materials. Here comes your first rep.

If you have time, I wish you can do a simple CPU scaling study as a companion test:
With 570 SLI, re-run those benchmarks above with your i7 920 @ stock 2.6, 3.0, 3.4, 3.8, 4.0, 4.2GHz and see how the curve behaves.

Once again, good job.
(Perhaps under Configuration, state the tested resolution (1920x1080) and make it more complete)
post #3 of 6
Thread Starter
Quote:
Originally Posted by windfire View Post
Good reference materials. Here comes your first rep.

If you have time, I wish you can do a simple CPU scaling study as a companion test:
With 570 SLI, re-run those benchmarks above with your i7 920 @ stock 2.6, 3.0, 3.4, 3.8, 4.0, 4.2GHz and see how the curve behaves.

Once again, good job.
(Perhaps under Configuration, state the tested resolution (1920x1080) and make it more complete)
TY for feedback

I'll when i have time (and patience! ).
Backer's RIG
(15 items)


CPUMotherboardGraphicsRAM
Core i7 3930K ASUS RAMPAGE IV FORMULA EVGA NVidia GTX 780 TI SuperClocked ACX 4 x 4GB DDR3 CORSAIR DOMINATOR 9-11-10-27 2T
Hard DriveHard DriveOptical DriveOS
SSD SAMSUNG 840 EVO 3 X 500GB SEAGATE (RAID 0) ASUS DVD-RAM Windows 8.1 x64
MonitorKeyboardPowerCase
Dell Ultrasharp U2711 - 27'' Logitech G15 Corsair HX1000W Corsair Obsidian 700D
MouseAudio
Logitech MX-400 ASUS XONAR DX
  hide details
Reply
Backer's RIG
(15 items)


CPUMotherboardGraphicsRAM
Core i7 3930K ASUS RAMPAGE IV FORMULA EVGA NVidia GTX 780 TI SuperClocked ACX 4 x 4GB DDR3 CORSAIR DOMINATOR 9-11-10-27 2T
Hard DriveHard DriveOptical DriveOS
SSD SAMSUNG 840 EVO 3 X 500GB SEAGATE (RAID 0) ASUS DVD-RAM Windows 8.1 x64
MonitorKeyboardPowerCase
Dell Ultrasharp U2711 - 27'' Logitech G15 Corsair HX1000W Corsair Obsidian 700D
MouseAudio
Logitech MX-400 ASUS XONAR DX
  hide details
Reply
post #4 of 6
+rep

Very nice editorial with a pleasant layout. Thanks for the review, I've been thinking hard about picking up another 570 for SLI and this scaling seems very promising.

I'd love to see a Metro 2033 benchmark run if you ever get a chance as well
Albino Sasquatch
(13 items)


CPUMotherboardGraphicsRAM
i5-760 @ 4.1ghz MSI H55-GD65 LGA 1156 MSI GTX580 @ 850/2000 1.1v 4GB DDR3 Ripjaws
Hard DriveOSMonitorKeyboard
Kingston 64GB SSD/ 1 TB WD Win7 Ultimate x64 HannsG 28" LCD - 1200p Logitech G15
PowerCaseMouse
TT Black Widow 850w White NZXT Phantom (modded) Cyborg R.A.T. 7
  hide details
Reply
Albino Sasquatch
(13 items)


CPUMotherboardGraphicsRAM
i5-760 @ 4.1ghz MSI H55-GD65 LGA 1156 MSI GTX580 @ 850/2000 1.1v 4GB DDR3 Ripjaws
Hard DriveOSMonitorKeyboard
Kingston 64GB SSD/ 1 TB WD Win7 Ultimate x64 HannsG 28" LCD - 1200p Logitech G15
PowerCaseMouse
TT Black Widow 850w White NZXT Phantom (modded) Cyborg R.A.T. 7
  hide details
Reply
post #5 of 6
Nice job thanks for sharing the data.

PS you'll get better scaling in Vantage if you use a higher preset like High or Extreme ... Performance mode gets a little bottlenecked w/all that GPU power
