I have a cooler master storm scout case and it has a switch to turn on and off the LED's of 2 out of the 3 fans in the case.
the fans that come with the scout are Cooler Master High Performance 120MM R4 fans

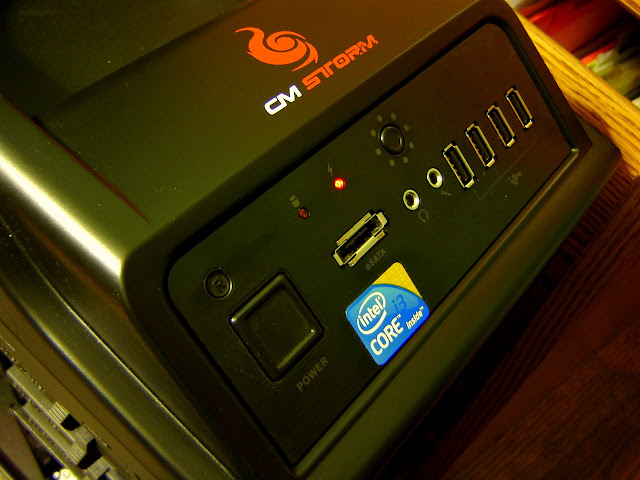

^quick pic i snatched from elsewhere, and the LED button is the round one above the mic and headphone jack^
I recently added 2 new fans to my case. a pair of red Enermax Ucap12
its awesome to have the correct amount of light i want in my case but, when I want to turn off the two new fans i have to pop the case right open and hit their individual switches and its annoying.


since I couldn't find anything on what I want to do i'm asking here;

can any one share their knowledge as to how I can possibly adapt the new switches to the built in switch on my scout?
If i have to take the case apart for more info on wiring and whatnot i'll do it
