NB Overclock: Performance test

post #1 of 43
Thread Starter
It seems that some people forget or don't want to overclock their NB. I don't see why you wouldn't because it can give you a great performance gain in some programs.
In this thread i will show you what the effects are of overclocking your NB.

Apps used: 3DMark11 and MaxxMem²

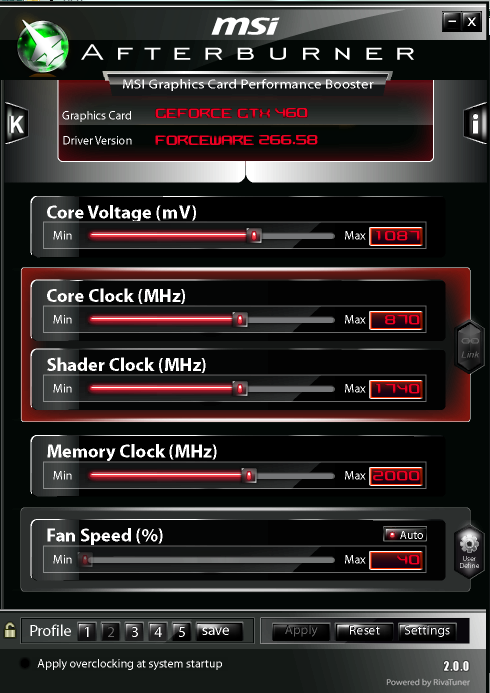

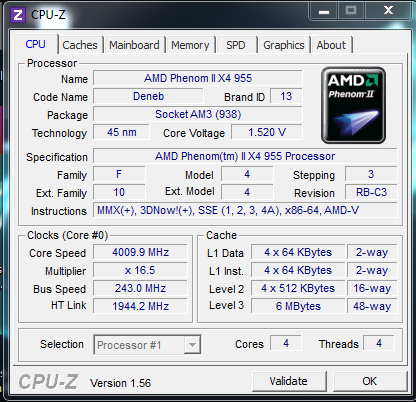

For my tests i will use the same CPU overclock (may be a few Mhz more/less because of FSB frequency) and the same overclock on my GTX460. My RAM will also run at stock frequency and timings.
pic1.png?t=1298581849
pic2.png?t=1298581824

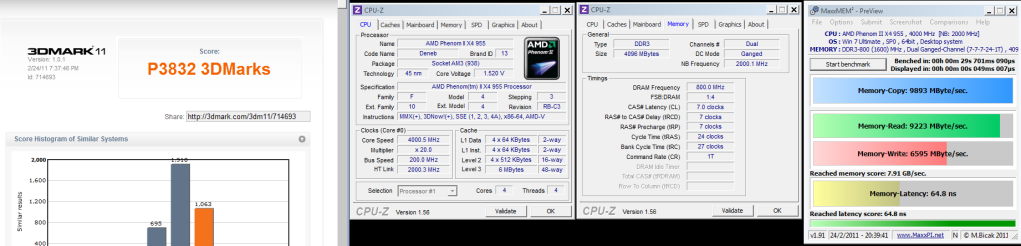

Stock 2000Mhz NB
http://3dmark.com/3dm11/714693;jsessionid=7733D2120C6D57EB86E304377311EE77?show_ads=true&page=/3dm11/714693%3Fkey%3DW5AXBHV426zfPBustwpCCEqL6D5tus
pic3.png?t=1298581921

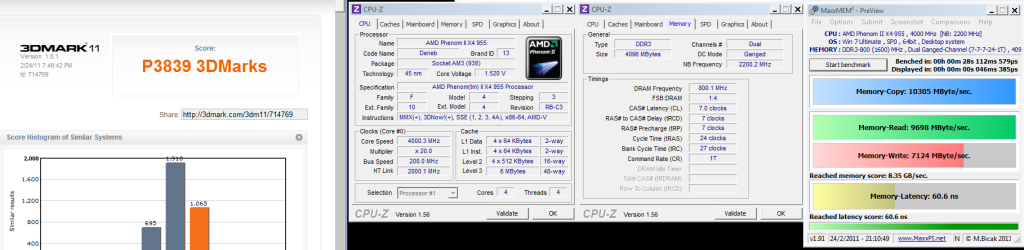

2200Mhz NB
http://3dmark.com/3dm11/714769?show_ads=true&page=/3dm11/714769%3Fkey%3D5t90hkEsDfU4WkR9U0CY2FEFny2CT6
pic4.png?t=1298581996

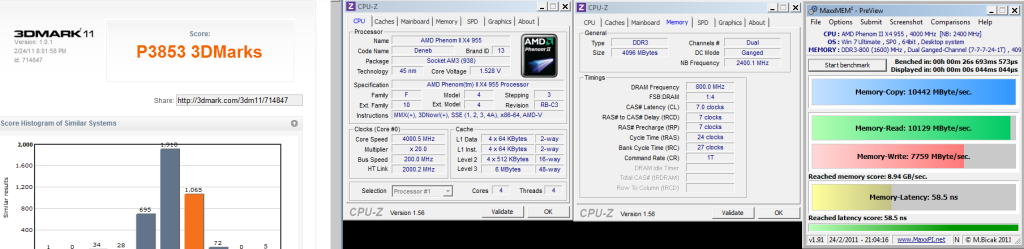

2400Mhz NB
http://3dmark.com/3dm11/714847?show_ads=true&page=/3dm11/714847%3Fkey%3DmSmQLTWUy4xXhHVWBnRVSmuY9WrFHu
pic5.png?t=1298582034

2600Mhz NB
http://3dmark.com/3dm11/715017?show_ads=true&page=/3dm11/715017%3Fkey%3Dqnd9PkuB48YTHjHTJsanz4hKQ7Jnzt
pic6.png?t=1298582068

2800Mhz NB
http://3dmark.com/3dm11/715086?show_ads=true&page=/3dm11/715086%3Fkey%3DJ45FsFtWWB4NU9e0etUSS0M92WKabt
pic7.png?t=1298582096

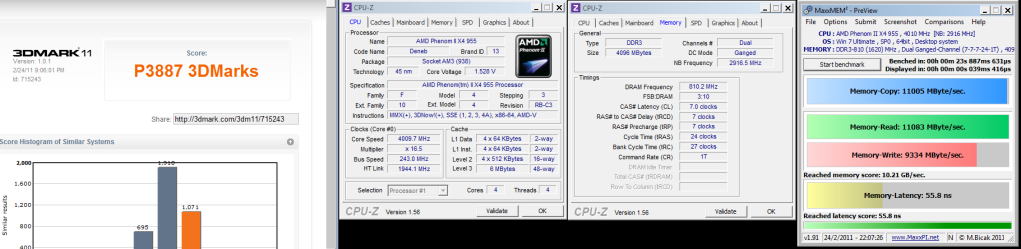

2916Mhz NB
http://3dmark.com/3dm11/715252?show_ads=true&page=/3dm11/715252%3Fkey%3DjjtSeaQRwuxDL2jv2XVNM608uvJZfj
pic8.png?t=1298582130


H.A.W.X Benchmark (fraps was on to make a screenshot)
2000Mhz NB

2400Mhz NB

2800Mhz NB
Edited by nicksasa - 2/25/11 at 5:55am
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
post #2 of 43
biggest boost - memory write ..?

CPUMotherboardGraphicsRAM
Opteron 6386SE G34r1 H8SGL Radeon R9 380X 32GB ECC_DDR3 1333 4ch
Hard DriveHard DriveCoolingOS
Seagate 600 Pro Enterprise SSD WD Green+Black some water Win8.1_64
KeyboardPowerCaseMouse
K120 TX850 Tai-chi M560
AudioAudio
Xmos_u8_DAC; (diy Pluto 2A3/SE estat amp) STAX cookies 3pcs
  hide details
Reply

CPUMotherboardGraphicsRAM
Opteron 6386SE G34r1 H8SGL Radeon R9 380X 32GB ECC_DDR3 1333 4ch
Hard DriveHard DriveCoolingOS
Seagate 600 Pro Enterprise SSD WD Green+Black some water Win8.1_64
KeyboardPowerCaseMouse
K120 TX850 Tai-chi M560
AudioAudio
Xmos_u8_DAC; (diy Pluto 2A3/SE estat amp) STAX cookies 3pcs
  hide details
Reply
post #3 of 43
Nice initiative
Slave
(13 items)


CPUMotherboardGraphicsRAM
i7 3770k Asus Maximus Gene V iGPU HD 4000 16GB DDR3 Crucial Ballistix 1600 Mhz
OSMonitorKeyboardPower
W7 x64 Dell U2412M Filco Majestouch 2 BeQuiet! Dark Power Pro 750w
Case
Open on the desk lol
  hide details
Reply
Slave
(13 items)


CPUMotherboardGraphicsRAM
i7 3770k Asus Maximus Gene V iGPU HD 4000 16GB DDR3 Crucial Ballistix 1600 Mhz
OSMonitorKeyboardPower
W7 x64 Dell U2412M Filco Majestouch 2 BeQuiet! Dark Power Pro 750w
Case
Open on the desk lol
  hide details
Reply
post #4 of 43
Thread Starter
Quote:
Originally Posted by pietro sk;12511725
biggest boost - memory write ..?
Yeah, it's a huge diffrence ...

Oh and tomorrow if i find the time i will test it with 1333Mhz CL9 to see if it changes anything for people with slow ram.
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
post #5 of 43
Where'e that "huge" difference? I thought "huge" means "huge" not "slight" because i see here only slight performance boost :/
Rozpierdalator :D
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 @ 4.2GHz HT On 1.27v MSI Eclipse SLI 2x Gainward GTX570 Phantom 1280MB DDR5 in SLI OCZ Reaper 3x1GB 1866MHz @ 1640MHz 7-6-6-15
Hard DriveOptical DriveOSMonitor
OCZ Vertex 2 60GB + 3x HD502HJ + SP2504C Sony Optiarc AD-7260S Windows 7 32bit Hyundai N220Wa+
PowerCaseMouse
OCZ ModXStream Pro 700W NZXT Phantom White Logitech G300
  hide details
Reply
Rozpierdalator :D
(13 items)


CPUMotherboardGraphicsRAM
Intel Core i7 920 D0 @ 4.2GHz HT On 1.27v MSI Eclipse SLI 2x Gainward GTX570 Phantom 1280MB DDR5 in SLI OCZ Reaper 3x1GB 1866MHz @ 1640MHz 7-6-6-15
Hard DriveOptical DriveOSMonitor
OCZ Vertex 2 60GB + 3x HD502HJ + SP2504C Sony Optiarc AD-7260S Windows 7 32bit Hyundai N220Wa+
PowerCaseMouse
OCZ ModXStream Pro 700W NZXT Phantom White Logitech G300
  hide details
Reply
post #6 of 43
awesome because i have 1333 CL9 "slow" RAM:D
Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 820 (L3 Cache Unlocked) 3.625Ghz Asus M4A89GTD Pro/USB3 HIS 6950 2GB Unlocked 840/1325 1.1v 4GB Corsair XMS2 CL9 1333
Hard DriveOptical DriveOSMonitor
OCZ Vertex 2 50GB 640GB WD Black/500GB WD Samsung DVD Burner x24 Windows 7 Ultimate x64 3x Samsung SyncMaster E2320x Eyefinity - 6048x1080
PowerCase
OCZ ModXStream Pro 600W Cooler Master 310 Mid Case
  hide details
Reply
Rig
(13 items)


CPUMotherboardGraphicsRAM
Phenom II x4 820 (L3 Cache Unlocked) 3.625Ghz Asus M4A89GTD Pro/USB3 HIS 6950 2GB Unlocked 840/1325 1.1v 4GB Corsair XMS2 CL9 1333
Hard DriveOptical DriveOSMonitor
OCZ Vertex 2 50GB 640GB WD Black/500GB WD Samsung DVD Burner x24 Windows 7 Ultimate x64 3x Samsung SyncMaster E2320x Eyefinity - 6048x1080
PowerCase
OCZ ModXStream Pro 600W Cooler Master 310 Mid Case
  hide details
Reply
post #7 of 43
Thread Starter
http://3dmark.com/compare/3dm11/715252/3dm11/714693

As you can see the graphics tests are pretty much equal. The only real diffrence is the cpu test.
Quote:
PhysicsTest 16.05 14.31 FPS
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
post #8 of 43
let's see a ppd test, i think memory bandwidth has a noticeable effect on folding
post #9 of 43
Thread Starter
Hmm ok, i will do that tomorrow. Didn't think of that.
I think you won't see a big diffrence on SMP folding, but on bigadv it's possible tough i can't test that.
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
post #10 of 43
look at the lactency score...from 68.4ns to 55.8ns. thats a jump as well too.
