Trying to get my 980X stable @ 4.41GHz *HELP*

post #1 of 8
Thread Starter
HAI!

======================
BEFORE I START,

Couple of weeks ago, I overclocked my CPU to 4.37GHz and I was using Corsair Dominator GT 12GB of memory (6 sticks) 2000MHz, and it was about 95% stable..
But yesterday I tried to overclock higher than 4.37GHz but I couldn't
Then I decided to take out 3 memory sticks and go back to 6GB, and now here am I in this thread..
======================

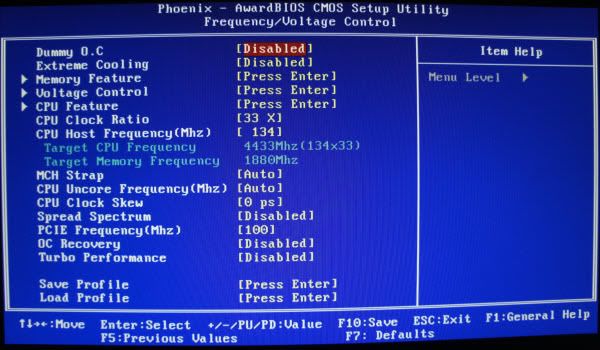

I overclocked my CPU yesterday to 4411MHz but I can't get it to be stable
When I run Prime95 for about 1min my 5th core stop working but the other cores are in 100% stress level
and after I continue stressing, after another 1-2 minutes Prime95 stopped working completely "crashing".

LinX, when I start stressing, the system goes very slow and I can't get my mouse to move smoothly, when I stop LinX everything goes back to normal.
Intel Burn Test, about 4.8 minutes of maximum stressing level, I get this error



Now help me getting my CPU stable at this clocks..PLEASE!
First, I want to get it stable @ 4.41GHz, but I really wish for higher clocks (4.4 - 4.5 or more will be very great).

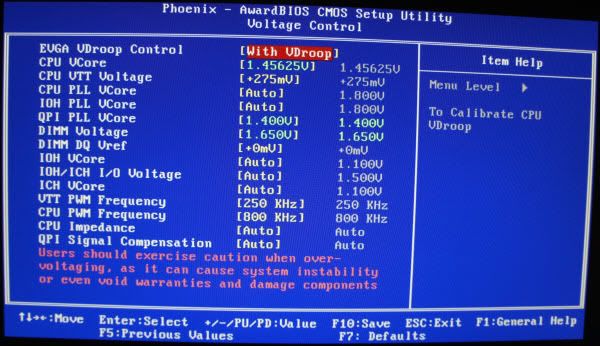

Im pretty sure there is something wrong with my voltages
Mobo: EVGA E770 Classified3








Edited by H.GamersZone - 2/25/11 at 2:16am
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
post #2 of 8
You mite just need a little more Vcore. I need 1.525 in bios to get 4.44ghz stable. Try bumping your ram down 1 notch to the next lowest setting. Use 12x multi and see if that helps. Then bring it back. That ram runs faster at 1600mhz using 7-7-7-20-1t. I have the same stuff.

1st thing I would try is changing the Vdroop. Try without. Just change that and it mite do the trick. If not. then try 1.475, 1.4875, and if you have to 1.5v. Just watch your temps.
Red X9
(20 items)


CPUMotherboardGraphicsGraphics
4790K @ 5ghz 1.350v 75c max load temps Asus Maximus VI Formula Evga Gtx Titan X @ 1500mhz / 7800mhz +112mv EK Acetal / Nickel / Nickel back plate
RAMHard DriveHard DriveOptical Drive
Corsair Vengence Pro 32gig 2400mhz c11 red (4x8... 6x 256gig (1.5tb) in Raid 0 , OS / Gaming Drive 2 x Liteon 256gig (512gig) storage drives Asus Dvd-RW
CoolingCoolingCoolingOS
2x 360mm Alphacool XT45 / 1x 480mm Alphacool Mo... EK X-Res 140 D5 vario Pump/Res combo + EK X-top... EK Supreme HF cpu / EK Acetal / Nickel with Nic... Windows 8.1 64bit
MonitorMonitorKeyboardPower
Asus ROG Swift 27" 144hz with G-Sync Samsung 65" 7150  Logitech G510s Corsair AX1200
CaseMouseMouse PadAudio
Thermaltake Core X9 custom painted Red and Black Logitech G602 Wireless Corsair Aluminum Core 2 sided  Bose Companion 5
  hide details
Reply
Red X9
(20 items)


CPUMotherboardGraphicsGraphics
4790K @ 5ghz 1.350v 75c max load temps Asus Maximus VI Formula Evga Gtx Titan X @ 1500mhz / 7800mhz +112mv EK Acetal / Nickel / Nickel back plate
RAMHard DriveHard DriveOptical Drive
Corsair Vengence Pro 32gig 2400mhz c11 red (4x8... 6x 256gig (1.5tb) in Raid 0 , OS / Gaming Drive 2 x Liteon 256gig (512gig) storage drives Asus Dvd-RW
CoolingCoolingCoolingOS
2x 360mm Alphacool XT45 / 1x 480mm Alphacool Mo... EK X-Res 140 D5 vario Pump/Res combo + EK X-top... EK Supreme HF cpu / EK Acetal / Nickel with Nic... Windows 8.1 64bit
MonitorMonitorKeyboardPower
Asus ROG Swift 27" 144hz with G-Sync Samsung 65" 7150  Logitech G510s Corsair AX1200
CaseMouseMouse PadAudio
Thermaltake Core X9 custom painted Red and Black Logitech G602 Wireless Corsair Aluminum Core 2 sided  Bose Companion 5
  hide details
Reply
post #3 of 8
Thread Starter

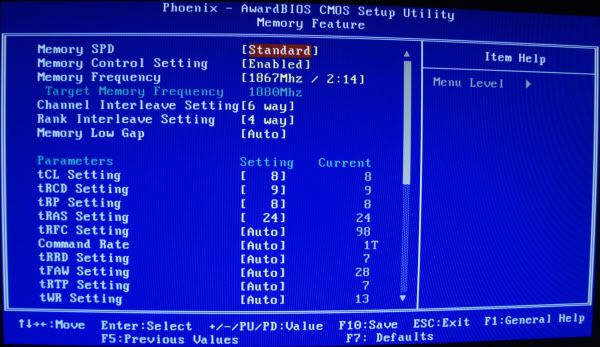

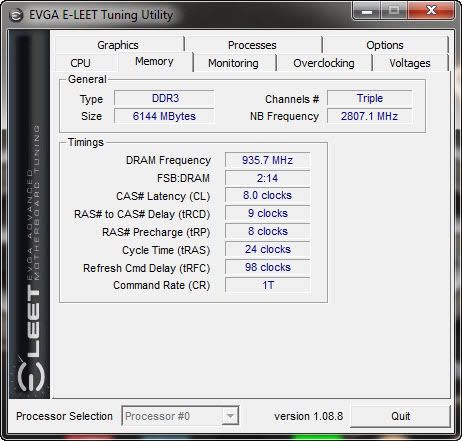

Thanks man, I tried to enable VDroop and lower my memory speeds to 1337 (auto) and my timings to 9-9-9-24

ran Intel Burn Test on High stressing, it passes with no freezing/blue screen





but the problem is my tempatures is a little bit high..i don't know if it's safe to stay like that 24/7?

IDLE: it's normal here, no problems


But after 8min of Prime95..i think it's too high


I noticed something with my cpu speeds
while Prime95 stressing..my speeds go down and up for no reason (?)
is that normal or it's a sign for unstable oc?

Edited by H.GamersZone - 3/1/11 at 1:06am
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
post #4 of 8
You need to keep your chip 85'C or lower while running a stress test like IBT.

At those temps, your chip will last a few weeks more.

CPUMotherboardGraphicsRAM
Xeon E5-1680 V2  R4BE  TITAN X (Pascal)   2666 Dominator Platinum CL10
Hard DriveCoolingCoolingOS
750 NVMe 1.2TB EK HF/rx360/rx120 EK FC/GTs/mcp655 Windows 10 Pro
MonitorPowerCaseAudio
BL3200PT 1600 T2 800d Pro Audio 2.1 + DragonFly Red
  hide details
Reply

CPUMotherboardGraphicsRAM
Xeon E5-1680 V2  R4BE  TITAN X (Pascal)   2666 Dominator Platinum CL10
Hard DriveCoolingCoolingOS
750 NVMe 1.2TB EK HF/rx360/rx120 EK FC/GTs/mcp655 Windows 10 Pro
MonitorPowerCaseAudio
BL3200PT 1600 T2 800d Pro Audio 2.1 + DragonFly Red
  hide details
Reply
post #5 of 8
...talk about having money to burn... how to melt a thousand dollar processor in under a month.
post #6 of 8
why is your VTT at 1.475?
why is your qpi pll at 1.4?
post #7 of 8
Thread Starter
Quote:
Originally Posted by redhat_ownage View Post
why is your VTT at 1.475?
why is your qpi pll at 1.4?
That's why im asking for help in this thread?
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
<3
(16 items)


CPUMotherboardGraphicsRAM
i7-3960X 4.5GHz Asus Rampage IV Extreme 2x MSI GTX580 3GB Lightning Xtreme Edition Corsair Dominator-GT 16GB (4x4) 2133MHz
Hard DriveHard DriveOptical DriveCooling
Corsair Force GT 120GB SSD Western Digital Black 2TB WD2002FAEX Samsung BluRay 12x Corsair H100 w/ 2 Bgears b-Blaster 103CFM 120mm...
OSMonitorKeyboardPower
Genuine Windows 7 64bit Samsung P2770HD Logitech G19 Corsair AX 1200W
CaseMouseMouse PadAudio
Corsair 600T White Special Edition Razer Mamba Razer Goliathus Speed SteelSeries 7H 7.1 Virtual USB
  hide details
Reply
post #8 of 8
Those temps seem awefully high. If you want higher clocks/less heat you may want to turn off Hyperthreading.

CPUMotherboardGraphicsRAM
i5-2500k @ 4300Mhz Biostar TP67XE Waiting to buy a new one 8GB 1600Mhz 7-8-7-21 1T
Hard DriveCoolingOSMonitor
Samsung 840 SSD [250GB] Antec H20 620 Windows 7 x64 Acer S242HL
PowerCase
Thermaltake 775W NZXT Phantom [White]
  hide details
Reply

CPUMotherboardGraphicsRAM
i5-2500k @ 4300Mhz Biostar TP67XE Waiting to buy a new one 8GB 1600Mhz 7-8-7-21 1T
Hard DriveCoolingOSMonitor
Samsung 840 SSD [250GB] Antec H20 620 Windows 7 x64 Acer S242HL
PowerCase
Thermaltake 775W NZXT Phantom [White]
  hide details
Reply
