How do I plug in case fans?

post #1 of 7
Thread Starter
I'm building a new system, and I'm using the stock HAF 932 cooling, 4 or 5 fans. I was wondering, where do I plug these in on my motherboard/PSU?
post #2 of 7
Some fans should just be hooked up to the psu and run constant, others like the cpu, and possibly the rear exhaust fan can be put on the 3 pin headers on the motherboard.

Ill try and find you a few pictures.

Edit: The cpu fan will go on the 4 pin connector.
Edited by Tw34k - 3/13/11 at 12:56pm
Daily Desktop
(13 items)


CPUMotherboardGraphicsRAM
Phenom II X2 555 Black @ 4.0 MSI 870A-G54 Radeon HD 5850 8 Gigs DDR3 1600
OSMonitorKeyboardPower
Windows 7 Pro x64 22" Primary, 19" Secondary Razor Reclusa (Temp) Cheap 650 that I'm embarrassed of.
CaseMouse
CM HAF 932 Black G5
  hide details
Reply
Daily Desktop
(13 items)


CPUMotherboardGraphicsRAM
Phenom II X2 555 Black @ 4.0 MSI 870A-G54 Radeon HD 5850 8 Gigs DDR3 1600
OSMonitorKeyboardPower
Windows 7 Pro x64 22" Primary, 19" Secondary Razor Reclusa (Temp) Cheap 650 that I'm embarrassed of.
CaseMouse
CM HAF 932 Black G5
  hide details
Reply
post #3 of 7
post #4 of 7
I usually run my exhaust fans at 100% and attach the others to a fan controller, or mobo header
Jimi Hendrix v2
(16 items)


CPUMotherboardGraphicsRAM
i5 750 @ 3.6ghz GA-P55A-UD4P radeon hd 5850 g skill ripjaws 7-8-7-24-2N 1600 4gb 2x2gb
Hard DriveHard DriveOptical DriveCooling
samsung spinpoint f3 500gb agility 3 120gb some loud samsung archon (stock)
OSMonitorKeyboardPower
windows 7 home premium 64 bit Asus VH242H steelseries merc ocz modxstream pro 700w
CaseMouseMouse PadAudio
HAF 922 Gigabyte M8000 Ghost gaming JVC RX700
  hide details
Reply
Jimi Hendrix v2
(16 items)


CPUMotherboardGraphicsRAM
i5 750 @ 3.6ghz GA-P55A-UD4P radeon hd 5850 g skill ripjaws 7-8-7-24-2N 1600 4gb 2x2gb
Hard DriveHard DriveOptical DriveCooling
samsung spinpoint f3 500gb agility 3 120gb some loud samsung archon (stock)
OSMonitorKeyboardPower
windows 7 home premium 64 bit Asus VH242H steelseries merc ocz modxstream pro 700w
CaseMouseMouse PadAudio
HAF 922 Gigabyte M8000 Ghost gaming JVC RX700
  hide details
Reply
post #5 of 7

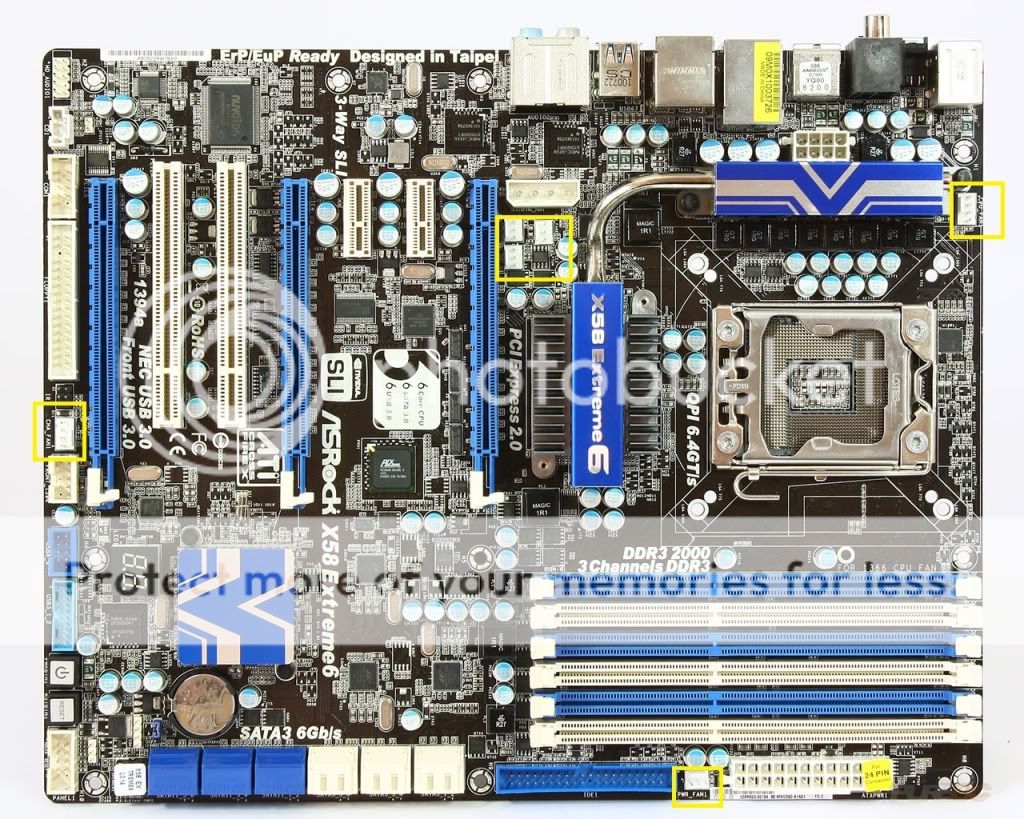

I highlighted the ones I could see in yellow.
