noob water cooling question

post #1 of 6
Thread Starter
Hi, new to water cooling and planning on changing my system from AIR to WATER next month. I was just wondering, I have a HAF X case, will I need to drill any holes for installing the Rad and Pump, stuff like that? I plan to put get a XSPC RX360 radd and put it on the top of the case.
My System
(13 items)


CPUMotherboardGraphicsRAM
2600k 4.6ghz asus p8p67 deluxe evga gtx 580 sli 8gb 1600mhz
Hard DriveMonitorPowerCase
160gb intel ssd + 1tb WD black dell u3011 1000w cosair haf x
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
2600k 4.6ghz asus p8p67 deluxe evga gtx 580 sli 8gb 1600mhz
Hard DriveMonitorPowerCase
160gb intel ssd + 1tb WD black dell u3011 1000w cosair haf x
  hide details
Reply
post #2 of 6
The RX360 is quite nice, you shouldn't need to drill any holes to be honest, I'm assuming it's like the Obsidian 800d and is designed to have rad's mounted internally
post #3 of 6
The HAF-X should fit a thick 360mm radiator such as the XSPC RX360 quite easily without modification.

The pump in the kit mounts in your 5.25" drive bays just like an optical drive, you just need a screwdriver.

EDIT: I thought you wrote kit, my bad. Ginger's post below mine explains pump/res mounting quite well.
Edited by charliehorse55 - 3/18/11 at 6:44pm
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
Labor of Love
(14 items)


CPUMotherboardGraphicsRAM
2600k @ 5.0 GHz/1.42v ASUS P8P67 Pro MSI GTX 670 OC 20 GB/1600/7-7-7-24
Hard DriveHard DriveOptical DriveOS
120GB Vertex SSD Western Digital 1TB None! Ubuntu 12.04/Win8/OSX 10.8.2
MonitorKeyboardPowerCase
27" 1440p X-Star OCN Mechanical - MX Browns Seasonic X-560 800D w/RX480 top mounted
Mouse
Logitech USB Generic
  hide details
Reply
post #4 of 6
The HAF X takes a 360 in the roof without modding.

For the pump, it depends on where and how you want to mount it. I have my pump sitting at the bottom of the case on some Petra Tech Gel Stuff to reduce vibration and it is pretty stable there.

The res might need some mounting holes, again depending on which res and how / where you want to mount it. Shouldn't take much, and there are always non-drilling options available, such as 3M sticky pads, velcro pads or even zip ties.
Main
(21 items)

HTPC
(10 items)


CPUMotherboardGraphicsRAM
i5 2550k P8P67 Pro Sapphire HD 7950 G.Skill RipJaws X 1600 Cas 9
Hard DriveHard DriveHard DriveCooling
Corsair Force 120 WD Blue 500GB WD Caviar Green 1TB XSPC RayStorm
CoolingCoolingCoolingCooling
RX240 MCR 220 EK 7950 Copper Acetal  DDC-1T
OSMonitorMonitorKeyboard
Windows 7 64-bit Dell U2311H Oculus Rift DK2 Ducky Shine 3 MX Brown
PowerCaseMouseAudio
Corsair TX 750W CoolerMaster CM690 II G500 Klipsch ProMedia 2.1
Audio
Asus Xonar DX
CPUMotherboardRAMHard Drive
A10-6800K Gigabyte GA-F2A85XN-WIFI G Skill 1600 CAS9 Kingston SSD Now 60GB
Hard DriveOptical DriveCoolingOS
WD Caviar Blue 1TB LG Slim Blu-Ray player Silverstone NT06-PRO  Widows 7 Home Premium
PowerCase
Silverstone Sfx Series ST45SF 450W Silverstone SG05
  hide details
Reply
Main
(21 items)

HTPC
(10 items)


CPUMotherboardGraphicsRAM
i5 2550k P8P67 Pro Sapphire HD 7950 G.Skill RipJaws X 1600 Cas 9
Hard DriveHard DriveHard DriveCooling
Corsair Force 120 WD Blue 500GB WD Caviar Green 1TB XSPC RayStorm
CoolingCoolingCoolingCooling
RX240 MCR 220 EK 7950 Copper Acetal  DDC-1T
OSMonitorMonitorKeyboard
Windows 7 64-bit Dell U2311H Oculus Rift DK2 Ducky Shine 3 MX Brown
PowerCaseMouseAudio
Corsair TX 750W CoolerMaster CM690 II G500 Klipsch ProMedia 2.1
Audio
Asus Xonar DX
CPUMotherboardRAMHard Drive
A10-6800K Gigabyte GA-F2A85XN-WIFI G Skill 1600 CAS9 Kingston SSD Now 60GB
Hard DriveOptical DriveCoolingOS
WD Caviar Blue 1TB LG Slim Blu-Ray player Silverstone NT06-PRO  Widows 7 Home Premium
PowerCase
Silverstone Sfx Series ST45SF 450W Silverstone SG05
  hide details
Reply
post #5 of 6

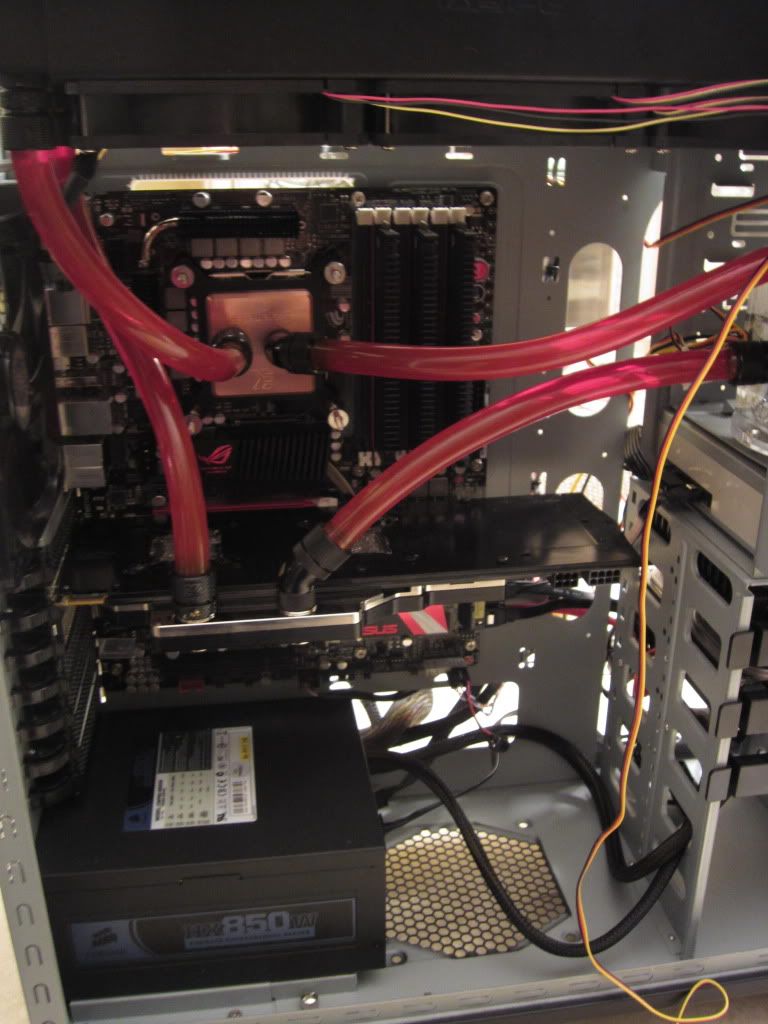

Yes a RASA RX 360 rad will fit in the top nicely on the HAF X. It fits well in my 932 which has the standard metal finish instead of the black. You will have more than enough space to fit that rad in the top here is a pic for reference.
You will need to remove the top part of the case with the front connectors in it. There are 3 screws that you have to remove to take off the top to get at the last 2 screw holes in the front of the case.

Gaming PC
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.2 GHz Asus Rampage III Extreme ATI Radeon HD 5970 6 GB Corsair Dominator Tri-Channel
Hard DriveOSMonitorKeyboard
32 GB OCZ SSD, 2x 150 GB WD Velociraptor 10000 rpm Windows 7 Ultimate 64 bit 2x Acer AL1622W Cyborg Eclipse
PowerCaseMouse
850 W Corsair Modular Cool Master HAF 932 Logitec MX 518
  hide details
Reply
Gaming PC
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.2 GHz Asus Rampage III Extreme ATI Radeon HD 5970 6 GB Corsair Dominator Tri-Channel
Hard DriveOSMonitorKeyboard
32 GB OCZ SSD, 2x 150 GB WD Velociraptor 10000 rpm Windows 7 Ultimate 64 bit 2x Acer AL1622W Cyborg Eclipse
PowerCaseMouse
850 W Corsair Modular Cool Master HAF 932 Logitec MX 518
  hide details
Reply
post #6 of 6
The HAF X will mount the RX360 rad in the roof fine. I would recommend mounting the 120mm fans on the top of the case under the panels. Gives you more room. The HAF X case is tighter than a 932 from the roof to the mobo, so keep this in mind. It still fits, but less room. As for pumps, you can just get the XSPC RASA RX360 kit and use the X20 750 pump/reservoir combo that it comes with in two of the 5.25" bays.
