post #21 of 71
Thread Starter
Quote:
Originally Posted by 78@pwnt4lif3;12834895
Seriously don't call deaf people MUTE. I'm offended.

It isn't meant to offend. Its from JD Salinger's "Catcher in the Rye". "I thought what I'd do was, I'd pretend I was one of those deaf-mutes." Those in the know may get a clue where I'm going with this theme.
post #22 of 71
Thread Starter
Got the window today! Many thanks to OCN artisan Pedgette! He did a wonderful job laser etching the window for an amazing price. I was tempted to have two done for what he charged.

On to the installation.

I wasn't entirely happy with my first cut out for the window. Although I followed mnpctech.com's guide to cutting a window in a HAF 922 panel their measurements were off. The opening came out far too narrow so I trimmed it out about 1/2 an inch more on the left and right sides.


I covered the exposed cut with u-channel from McMaster-Carr and I'm securing the window with Scotch 4010 clear mounting tape.


Simply press the window on to the tape and...


Looks good, but it'd look even better edge lit! So I got a dual 4" cold cathode tube kit. For now everything is held in place with some electrical tape until I finalize on the wiring.


So how's it look? You be the judge.




I'm loving it.

So what's next? I'll be adding some purple cold cathode tubes to light the interior of the case next week and start sleeving everything I can with paracord (purple, kelly green and charcoal black) as soon as it arrives.
Edited by Philistine - 5/5/11 at 10:17pm
post #23 of 71
congratz well done mod i love the effect it gives
post #24 of 71
So sexy, I like it

Almost gives me the courage to mod my own case
...almost
Archaic-Reborn!
(14 items)


CPUMotherboardGraphicsRAM
Intel E8400 @ 3.6 GA-EP45-UD3P HIS 4870 1GB 2 x 2GB G.Skill DDR2 1066
Hard DriveOSMonitorPower
2 x WD740 Raptor, WD Caviar Black 1TB Win7 64bit Dell U2311H Silverstone ST60F 600W
CaseAudio
Antec 1200 Audigy 2 ZS Platinum Pro
  hide details
Reply
Archaic-Reborn!
(14 items)


CPUMotherboardGraphicsRAM
Intel E8400 @ 3.6 GA-EP45-UD3P HIS 4870 1GB 2 x 2GB G.Skill DDR2 1066
Hard DriveOSMonitorPower
2 x WD740 Raptor, WD Caviar Black 1TB Win7 64bit Dell U2311H Silverstone ST60F 600W
CaseAudio
Antec 1200 Audigy 2 ZS Platinum Pro
  hide details
Reply
post #25 of 71
That windows looks sooooo good lit up!

CPUMotherboardGraphicsRAM
Intel i7 CPU 860 @ 3.80GHz GIGABYTE P55A-UD7 2x-ASUS ENGTX470 SLI G Skill 4gig
Hard DriveOptical DriveOSMonitor
Vertex 2 60gig /Raptor 150 Asus DVD Lightscribe Win7 64 bit Pro Asus VW246 24", (2) Dell 20's
KeyboardPowerCaseMouse
G-15 Cosair 850 watt Custom HAF-932 EXT G-9
Mouse Pad
Razor eXactMat
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel i7 CPU 860 @ 3.80GHz GIGABYTE P55A-UD7 2x-ASUS ENGTX470 SLI G Skill 4gig
Hard DriveOptical DriveOSMonitor
Vertex 2 60gig /Raptor 150 Asus DVD Lightscribe Win7 64 bit Pro Asus VW246 24", (2) Dell 20's
KeyboardPowerCaseMouse
G-15 Cosair 850 watt Custom HAF-932 EXT G-9
Mouse Pad
Razor eXactMat
  hide details
Reply
post #26 of 71
looks EPIC!
R&B
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T Black Edition ASUS Crosshair IV Formula XFX RADEON HD6870 Corsair XMS3 DDR3 1333MHz 6GB
Hard DriveOptical DriveOSMonitor
Western Digital 680 GB Sony Optical Drive Windows 7 Ultimate 64 Bit SAMSUNG SyncMaster 245B
KeyboardPowerCaseMouse
A keyboard from 2001 XFX CORE EDITION 750W Cooler Master HAF 912 Plus Moded Logitech School Mouse
Mouse Pad
My Table
  hide details
Reply
R&B
(13 items)


CPUMotherboardGraphicsRAM
AMD Phenom II X6 1090T Black Edition ASUS Crosshair IV Formula XFX RADEON HD6870 Corsair XMS3 DDR3 1333MHz 6GB
Hard DriveOptical DriveOSMonitor
Western Digital 680 GB Sony Optical Drive Windows 7 Ultimate 64 Bit SAMSUNG SyncMaster 245B
KeyboardPowerCaseMouse
A keyboard from 2001 XFX CORE EDITION 750W Cooler Master HAF 912 Plus Moded Logitech School Mouse
Mouse Pad
My Table
  hide details
Reply
post #27 of 71
Thread Starter
Thanks guys! I'm really happy with how it turned out.
post #28 of 71
i like the way the window looks lit up.

CPUMotherboardGraphicsRAM
Ryzen 1600 MSI b350 tomahawk MSI Gaming X 1070 8GB G.SKILL Flare X 16Gb (2x8)
Hard DriveHard DriveOptical DriveCooling
Barracuda 1TB Sata 6 OCZ Vertex 3 120Gb Samsung Model SH-222AB Nzxt Kraken X61
OSMonitorKeyboardPower
Windows 10 Pro Asus VG248QE Logitech G710+ Antec TruePower New Blue 750W
CaseMouseMouse PadAudio
Cooler Master Master case pro 5 G502 Proteus core roccat taito Logitech G430
  hide details
Reply

CPUMotherboardGraphicsRAM
Ryzen 1600 MSI b350 tomahawk MSI Gaming X 1070 8GB G.SKILL Flare X 16Gb (2x8)
Hard DriveHard DriveOptical DriveCooling
Barracuda 1TB Sata 6 OCZ Vertex 3 120Gb Samsung Model SH-222AB Nzxt Kraken X61
OSMonitorKeyboardPower
Windows 10 Pro Asus VG248QE Logitech G710+ Antec TruePower New Blue 750W
CaseMouseMouse PadAudio
Cooler Master Master case pro 5 G502 Proteus core roccat taito Logitech G430
  hide details
Reply
post #29 of 71
Hmmm gives me an idea for my 932 plexi. I gotta git him to do mine.

I love that show btw. She is such a badass. OCN needs to have that as a emote. thumb.gif

~Ceadder:drink:

CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair IV Formula Sapphire Radeon HD 6870 Sapphire Radeon HD 6870
RAMRAMRAMHard Drive
Corsair Dominator G. Skill Ripjaws X G. Skill x2 HITACHI 1TB Deskstars 1TB RAID0
Optical DriveCoolingCoolingCooling
ASUS DRW-24B1ST  Swiftech 6950/6870 GPU Heatsink Swiftech 6950/6870 GPU Heatsink Monsoon 1/2"x5/8" PETG White Hardline tubing.
CoolingCoolingCoolingCooling
Monsoon Economy Hardline fittings EK Dual DDC V2 top Swiftech Pump DDC-1T (2) Liquid Fusion V Double helix Reservoir
CoolingCoolingCoolingCooling
Yate Loon 120x20 (D12SM-12C) Medium Speed Silen... EK Supreme HF Classified EK Thermosphere GPU Block EK Thermosphere GPU Block
OSMonitorKeyboardPower
Win7 64 bit Ultimate OEM Asus VH222H Black HDMI Widescreen Logitech the OCZ went buhbye adios. Don't know ... Corsair CMPSU HX 850w Modular
CaseMouseMouse PadAudio
HAF 932 Logitech g9x COOLER MASTER Weapon of Choice: M4 Duramesh Pad Logitech X-240 2.1 speakers
OtherOther
Sunbeam Rheosmart 3 Creative X-Fi
  hide details
Reply

CPUMotherboardGraphicsGraphics
AMD Phenom II X6 1100T Crosshair IV Formula Sapphire Radeon HD 6870 Sapphire Radeon HD 6870
RAMRAMRAMHard Drive
Corsair Dominator G. Skill Ripjaws X G. Skill x2 HITACHI 1TB Deskstars 1TB RAID0
Optical DriveCoolingCoolingCooling
ASUS DRW-24B1ST  Swiftech 6950/6870 GPU Heatsink Swiftech 6950/6870 GPU Heatsink Monsoon 1/2"x5/8" PETG White Hardline tubing.
CoolingCoolingCoolingCooling
Monsoon Economy Hardline fittings EK Dual DDC V2 top Swiftech Pump DDC-1T (2) Liquid Fusion V Double helix Reservoir
CoolingCoolingCoolingCooling
Yate Loon 120x20 (D12SM-12C) Medium Speed Silen... EK Supreme HF Classified EK Thermosphere GPU Block EK Thermosphere GPU Block
OSMonitorKeyboardPower
Win7 64 bit Ultimate OEM Asus VH222H Black HDMI Widescreen Logitech the OCZ went buhbye adios. Don't know ... Corsair CMPSU HX 850w Modular
CaseMouseMouse PadAudio
HAF 932 Logitech g9x COOLER MASTER Weapon of Choice: M4 Duramesh Pad Logitech X-240 2.1 speakers
OtherOther
Sunbeam Rheosmart 3 Creative X-Fi
  hide details
Reply
post #30 of 71
Thread Starter
Today we have a cooling experiment.

The HAF 922 has a cut out in the motherboard for fitting after market coolers. I looked at this and with the way the sides of the case bulge out to accommodate hiding wires behind the MB I thought, "What if I cut a hole in the side of the case and installed a fan to blow on the bottom of the MB? Would that make a difference in cooling?" That's all the excuse I needed to break out a hole saw and drill.

Time to add a new hole to my new case.

The boring side of the HAF 922.

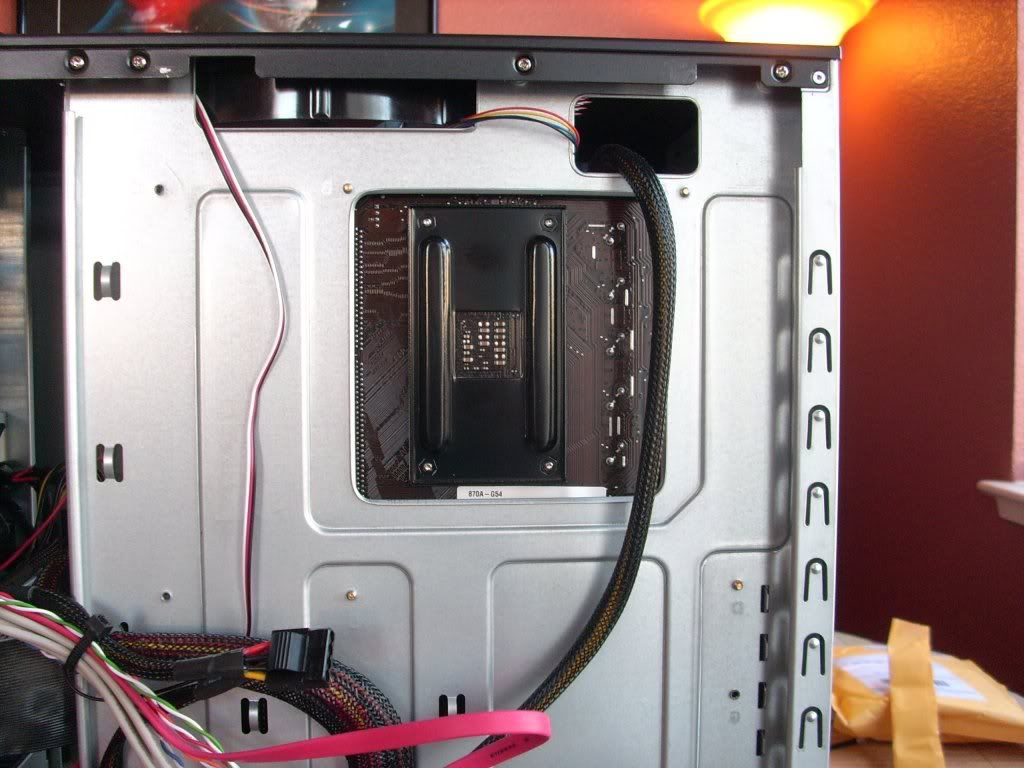

Here's the cut out in the MB tray for after market coolers.

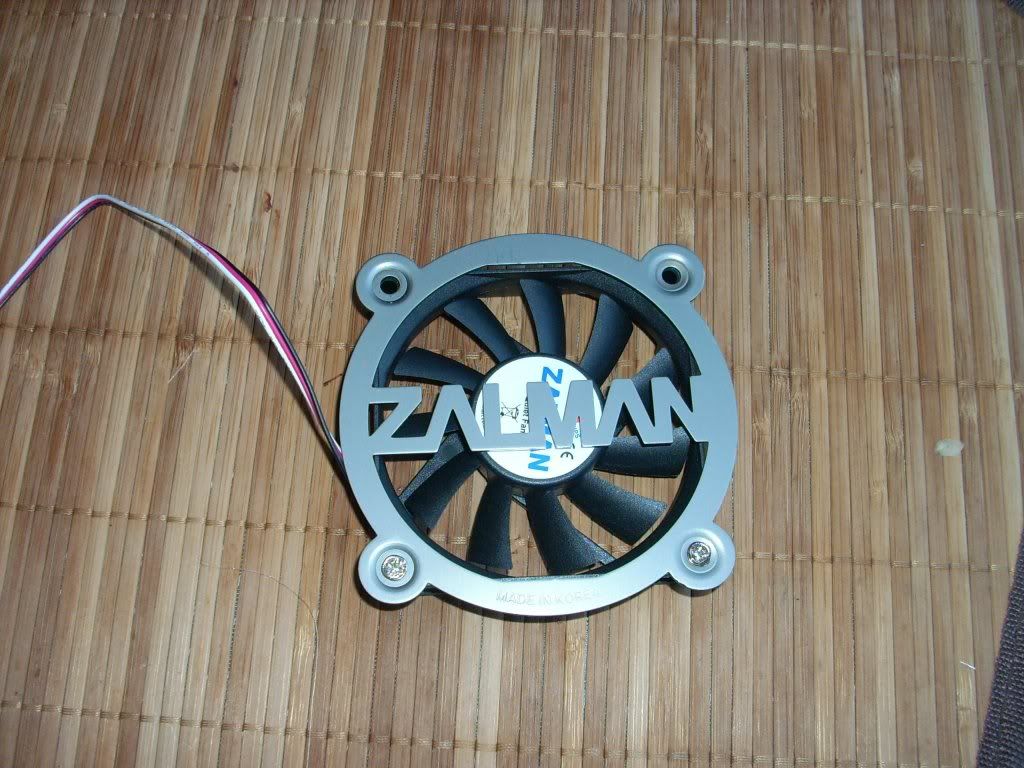

I had maybe 28mm of clearance between the side panel and the MB tray to work with. So I went with a slim 80mm fan from Zalman that was 15mm thick. Also this fan has a lead that allows you to run it at 5v and 12v. Why an 80mm fan? I can't center the fan directly over the processor so having a 120mm fan would just blow air over the back of the MB tray. With the 80mm fan I could direct it a bit more under the processor.

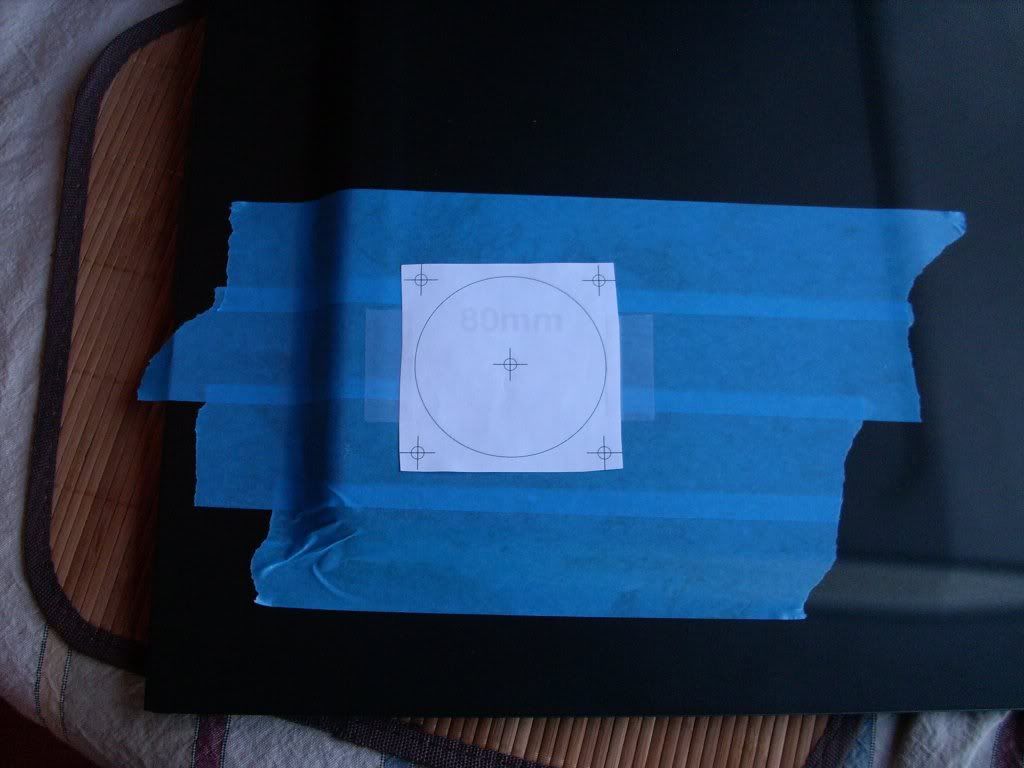

I found the best location for the fan and used a template from mnpctech.com to locate the fan. Time to bring out Mr. Hole Saw.

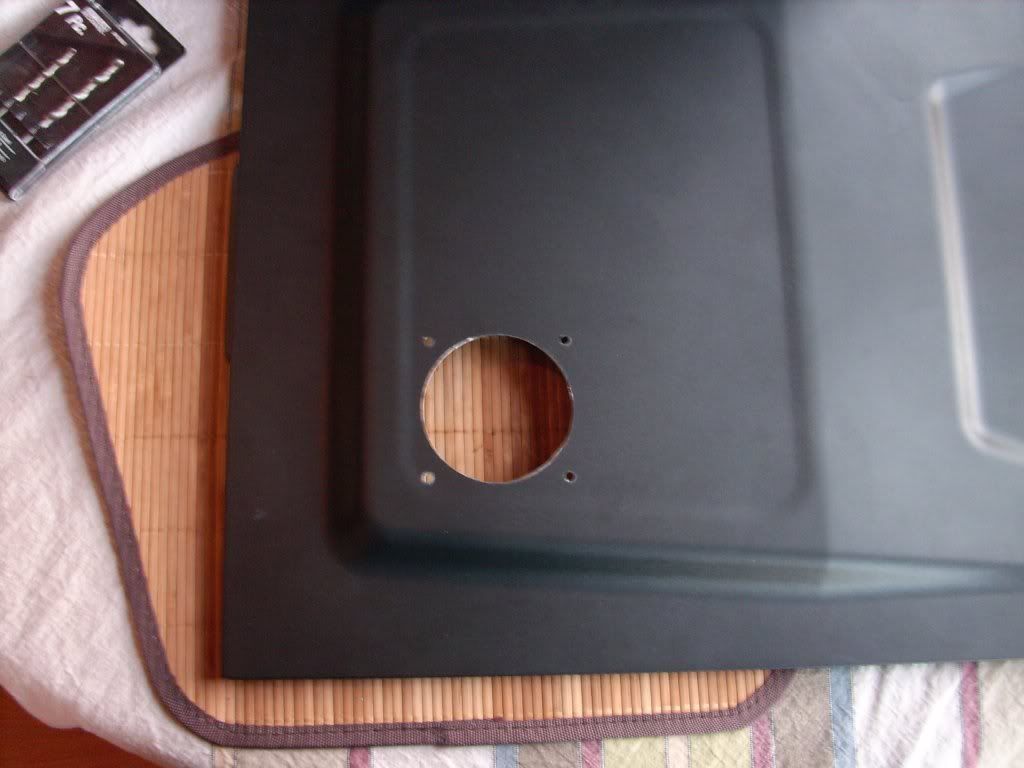

And after Mr. Hole Saw had a quick bite out of the panel.

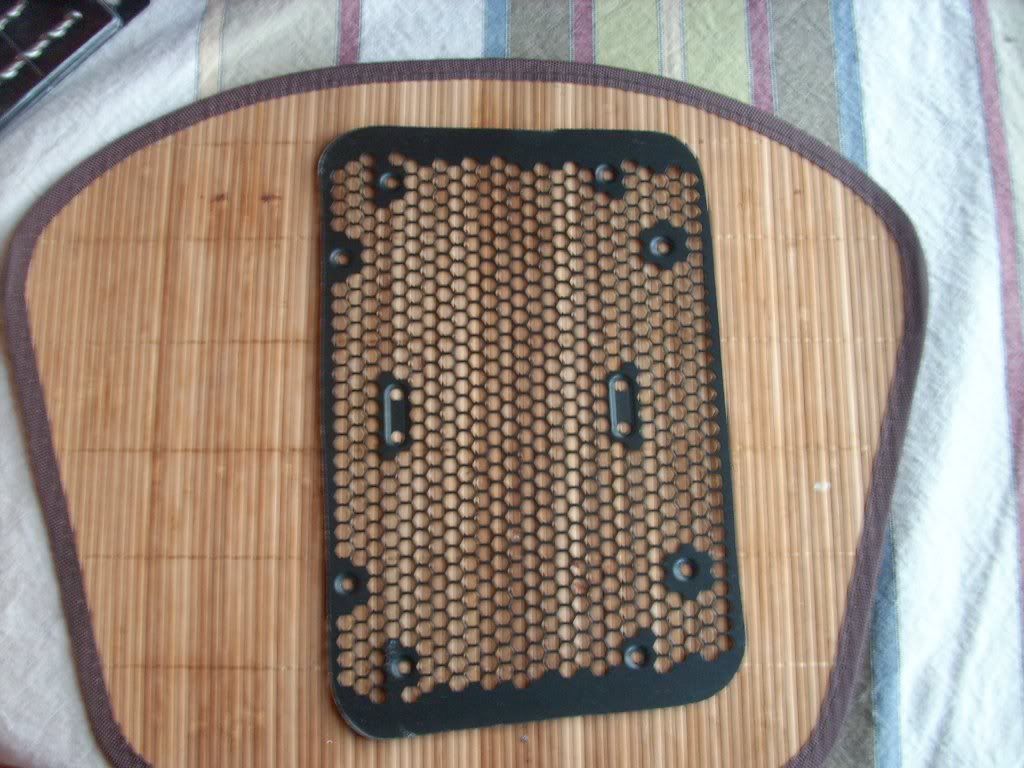

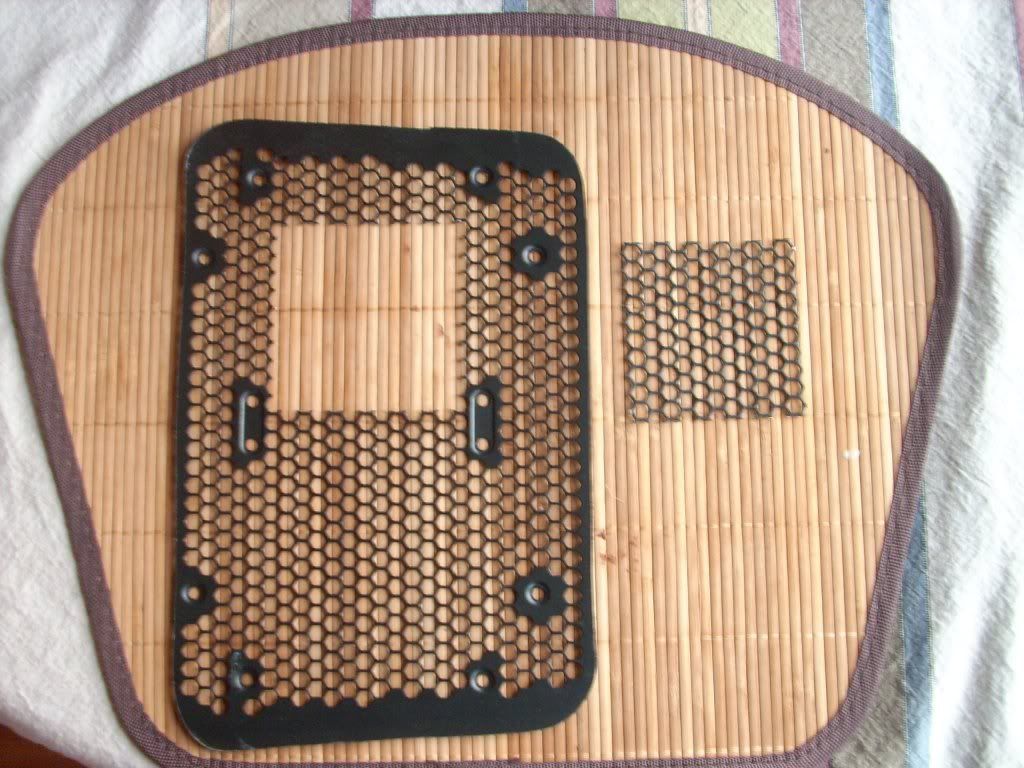

I wanted to keep this looking as stock as possible so I used the grill I cut from the other side of the case where I installed my window to make a fan grill for the 80mm fan.

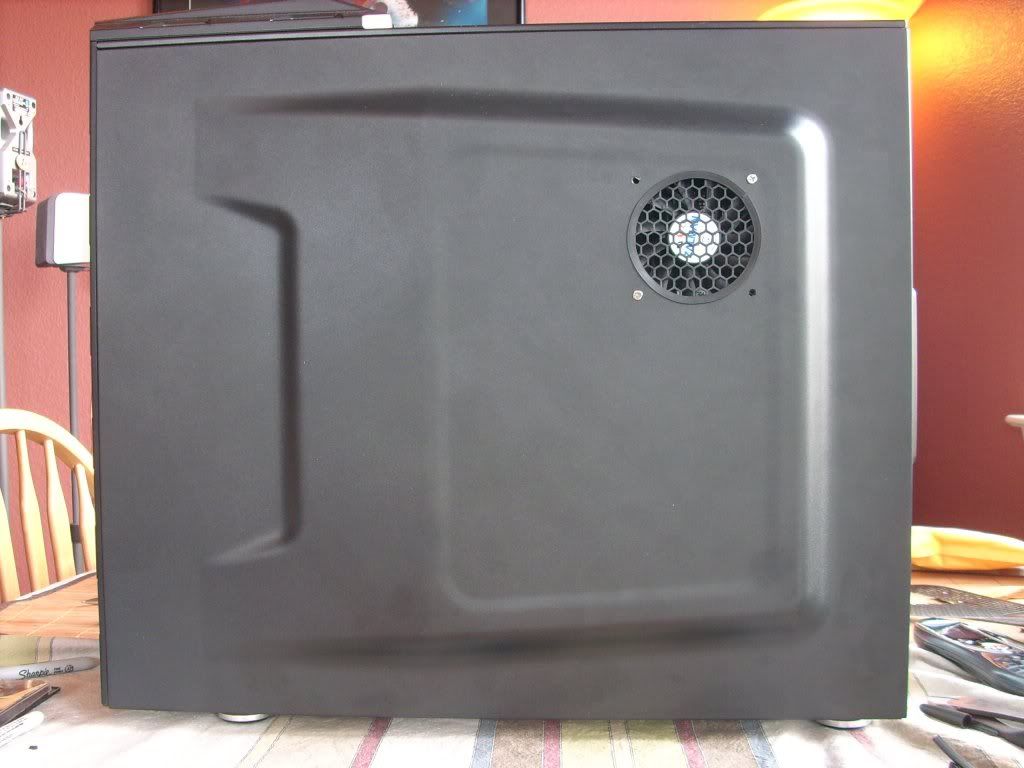

With that and a bit of rubber u-channel this is the end result. Don't mind the screws. The fan only came with two and I'll be replacing them with black button cap screws tomorrow.



So did this make a difference in cooling? Check out my results thread in the air cooling forum.
Edited by Philistine - 3/29/11 at 7:55am
