Ghettochilled reservoir... Next semi-extreme level? - Page 2

post #11 of 17

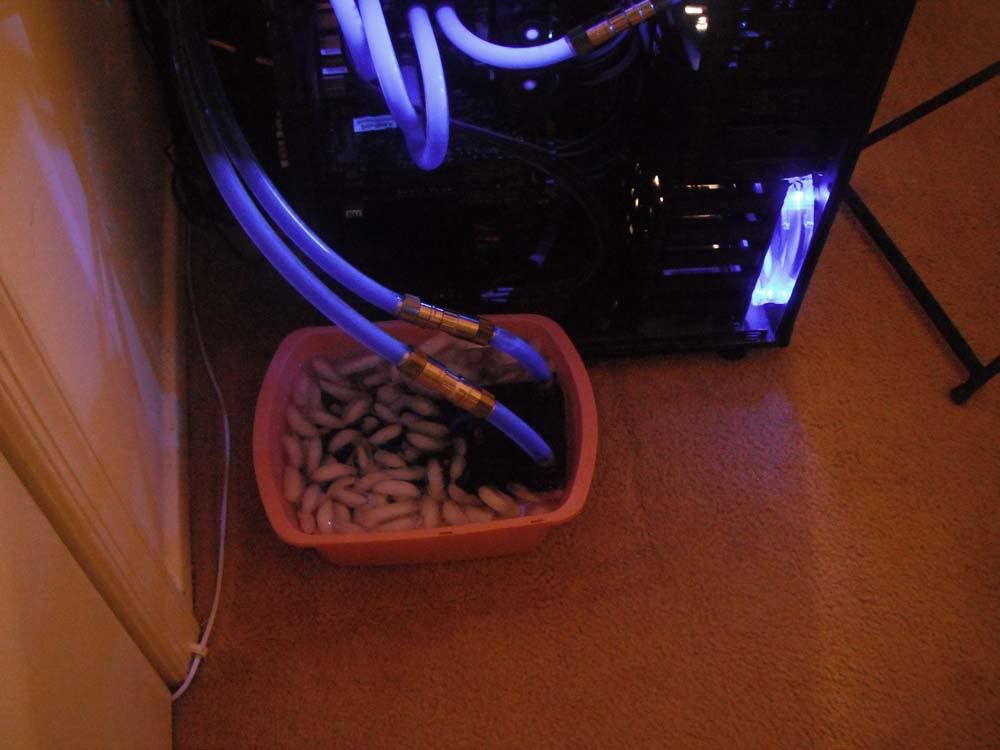

Rather then add ice cubes to your reservoir, just build a slushy box for your radiator and keep adding ice

Something like this:


But i'd use auto coolant instead of water and I'd use more ice cubes to keep it as cold as possible



Or if you don't want to keep adding ice, build the the slushy box out of aluminum, fill it with auto coolant, dunk your radiator in it and then mount a handful of TECs to the aluminum.

To improve the cooling performance of the TECs on the auto coolant, add heatsinks on the inside of the aluminum box, directly opposite the TECs for more surface area.

If your CPU heatload was around 250W and you keep the TECs hotside to 35C, you could used 4 of those cheap ebay "USA Quality" 400W TECs, wire them in series pairs and ran each pair from a 12V 30A source and the coldside of the TECs would be around -15C
Edited by un-nefer - 3/27/11 at 11:02pm
Crimson Basilisk
(25 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600K @ 5.1Ghz AsRock Extreme4 Gen3 Palit GTX 680 Jetstream 2GB Palit GTX 680 Jetstream 2GB
RAMRAMHard DriveHard Drive
G.Skill F3-12800CL9D-8GBXL G.Skill F3-12800CL9D-8GBXL Sandisk Extreme 120GB SSD Sandisk Extreme 120GB SSD
Hard DriveOptical DriveCoolingCooling
WD Caviar "Black" 1TB SATAII LG WH14NS40 Blu-ray Burner XSPC Rasa CPU (Acetal) Black RX360 Triple Fan Radiator
CoolingCoolingOSMonitor
XSPC DDC Two BayRes BMaverick Laing DDC (MCP350) Windows 7 Ultimate x64 Philips 201B 21" CRT
MonitorKeyboardPowerCase
ViewSonic VX922 19" LCD Diamond Digital Black Antec True Power 750w Antec LanBoy Air Red
MouseMouse PadAudioOther
Epic Gear Meduza (By GEIL) Steel Series QCK+ XL Asus Xonar DX ROCCAT Kave 5.1 Surround Sound Gaming Headset
Other
Sennheiser hd555
  hide details
Reply
Crimson Basilisk
(25 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600K @ 5.1Ghz AsRock Extreme4 Gen3 Palit GTX 680 Jetstream 2GB Palit GTX 680 Jetstream 2GB
RAMRAMHard DriveHard Drive
G.Skill F3-12800CL9D-8GBXL G.Skill F3-12800CL9D-8GBXL Sandisk Extreme 120GB SSD Sandisk Extreme 120GB SSD
Hard DriveOptical DriveCoolingCooling
WD Caviar "Black" 1TB SATAII LG WH14NS40 Blu-ray Burner XSPC Rasa CPU (Acetal) Black RX360 Triple Fan Radiator
CoolingCoolingOSMonitor
XSPC DDC Two BayRes BMaverick Laing DDC (MCP350) Windows 7 Ultimate x64 Philips 201B 21" CRT
MonitorKeyboardPowerCase
ViewSonic VX922 19" LCD Diamond Digital Black Antec True Power 750w Antec LanBoy Air Red
MouseMouse PadAudioOther
Epic Gear Meduza (By GEIL) Steel Series QCK+ XL Asus Xonar DX ROCCAT Kave 5.1 Surround Sound Gaming Headset
Other
Sennheiser hd555
  hide details
Reply
post #12 of 17
problem with putting ur rad in their, is the temps wont go below 0, apperantly
or ambient... 4got lol

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply
post #13 of 17
Thread Starter
Yeah the radiator's a problem in my loop, or at least a kind of problem.

I've solved that, I'm gonna make a styrofoam cage for it, so no heat is dumped into the loop through it.


The slush box is a thing I can't fit into the case... And the idea is having the thing nice and clean (and 100% stealthed )


Okay, I need to go check if I find a reservoir big enough, but small enough at the same time, grab it, put the barbs on it, check if the rad's arrived... And I think I forget something, just I don't know what's it o.O


Thanks to those who helped


Edit: Hadn't thought about it, but at the same time the res can be used to fit a small peltier at some point that helps a bit o.O
Edited by Artikbot - 3/28/11 at 2:16am

AGP bencher
(14 items)

CPUMotherboardGraphicsRAM
Ryzen R7 1700 Gigabyte GA-AX370-Gaming 5 Sapphire HD 6950 2GiB 2x8GB KFA2 HOF DDR4-3600
Hard DriveHard DriveHard DriveHard Drive
Crucial MX100 256GB Seagate 600 Series 240GB Seagate 7200.14 2TB Samsung F3 1TB
CoolingCoolingCoolingCooling
EKWB Supreme HF XSPC Rasa GPU EK XT360 EK 4.0
OSMonitorMonitorKeyboard
W10 Pro LG IPS235 LG E2250V KUL ES-87
PowerCaseMouseAudio
SF Leadex II 650W Lian Li PC-A05NB Logitech G9 Xonar DX
AudioAudio
SMSL SA-S3+Technics CB-250 Sennheiser HD555
CPUMotherboardRAMHard Drive
AMD A10-5700 Gigabyte F2A75M-HD2 G.SKILL Ares 2133 CL9 Hitachi 5K750
Hard DriveCoolingOSMonitor
Momentus .7 200GB Noctua NH-L9a Server 2012 R2 Standard AUO B156HW01
PowerCaseOther
PicoPSU-80-WI-25V AIO Aluminium Handmade TP-Link Archer Something Something Wi-Fi AC
CPUCPUCPUMotherboard
Core2Duo E6400 Core2Quad Q6600 Pentium Dual Core E5200 AsRock 4COREDUAL-SATA2 R2.0
GraphicsRAMHard DriveOptical Drive
A dumpload of ancient AGP cards Kingston Value DDR2-667 CL4 2T @CL3 1T Seagate 160GB 7200.10 LG IDE DVD-ROM
CoolingCoolingOSMonitor
Ghettomade CPU waterblock 49cc 2stroke engine copper radiator WinXP SP2 32bit ProView 17"
PowerCase
Tacens Radix V 550W Ghetto aluminium bench
  hide details
Reply

AGP bencher
(14 items)

CPUMotherboardGraphicsRAM
Ryzen R7 1700 Gigabyte GA-AX370-Gaming 5 Sapphire HD 6950 2GiB 2x8GB KFA2 HOF DDR4-3600
Hard DriveHard DriveHard DriveHard Drive
Crucial MX100 256GB Seagate 600 Series 240GB Seagate 7200.14 2TB Samsung F3 1TB
CoolingCoolingCoolingCooling
EKWB Supreme HF XSPC Rasa GPU EK XT360 EK 4.0
OSMonitorMonitorKeyboard
W10 Pro LG IPS235 LG E2250V KUL ES-87
PowerCaseMouseAudio
SF Leadex II 650W Lian Li PC-A05NB Logitech G9 Xonar DX
AudioAudio
SMSL SA-S3+Technics CB-250 Sennheiser HD555
CPUMotherboardRAMHard Drive
AMD A10-5700 Gigabyte F2A75M-HD2 G.SKILL Ares 2133 CL9 Hitachi 5K750
Hard DriveCoolingOSMonitor
Momentus .7 200GB Noctua NH-L9a Server 2012 R2 Standard AUO B156HW01
PowerCaseOther
PicoPSU-80-WI-25V AIO Aluminium Handmade TP-Link Archer Something Something Wi-Fi AC
CPUCPUCPUMotherboard
Core2Duo E6400 Core2Quad Q6600 Pentium Dual Core E5200 AsRock 4COREDUAL-SATA2 R2.0
GraphicsRAMHard DriveOptical Drive
A dumpload of ancient AGP cards Kingston Value DDR2-667 CL4 2T @CL3 1T Seagate 160GB 7200.10 LG IDE DVD-ROM
CoolingCoolingOSMonitor
Ghettomade CPU waterblock 49cc 2stroke engine copper radiator WinXP SP2 32bit ProView 17"
PowerCase
Tacens Radix V 550W Ghetto aluminium bench
  hide details
Reply
post #14 of 17
put it like neer the top? and drop in some dry ice pelets haha

oh wait, would have to be a copper rez. or would/might crack


oh yeh, u gotta give us some pics when ya done

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply
post #15 of 17
Thread Starter
Quote:
Originally Posted by Liighthead View Post
put it like neer the top? and drop in some dry ice pelets haha
More likely I'll remove the back panel and drop them manually... Just to avoid making another hole on the case

Quote:
oh wait, would have to be a copper rez. or would/might crack
Not really, as long as the water never reaches anywere near the top, and it won't, simply because I have an overlevel protection tube that drains any water excess


Quote:
oh yeh, u gotta give us some pics when ya done

Indeed!!

I'll go grab the parts tomorrow since today it's about time for me to leave. Pity, but if everything goes well, I'll have the rad too by tomorrow, so I can start finishing the damn loop finally

AGP bencher
(14 items)

CPUMotherboardGraphicsRAM
Ryzen R7 1700 Gigabyte GA-AX370-Gaming 5 Sapphire HD 6950 2GiB 2x8GB KFA2 HOF DDR4-3600
Hard DriveHard DriveHard DriveHard Drive
Crucial MX100 256GB Seagate 600 Series 240GB Seagate 7200.14 2TB Samsung F3 1TB
CoolingCoolingCoolingCooling
EKWB Supreme HF XSPC Rasa GPU EK XT360 EK 4.0
OSMonitorMonitorKeyboard
W10 Pro LG IPS235 LG E2250V KUL ES-87
PowerCaseMouseAudio
SF Leadex II 650W Lian Li PC-A05NB Logitech G9 Xonar DX
AudioAudio
SMSL SA-S3+Technics CB-250 Sennheiser HD555
CPUMotherboardRAMHard Drive
AMD A10-5700 Gigabyte F2A75M-HD2 G.SKILL Ares 2133 CL9 Hitachi 5K750
Hard DriveCoolingOSMonitor
Momentus .7 200GB Noctua NH-L9a Server 2012 R2 Standard AUO B156HW01
PowerCaseOther
PicoPSU-80-WI-25V AIO Aluminium Handmade TP-Link Archer Something Something Wi-Fi AC
CPUCPUCPUMotherboard
Core2Duo E6400 Core2Quad Q6600 Pentium Dual Core E5200 AsRock 4COREDUAL-SATA2 R2.0
GraphicsRAMHard DriveOptical Drive
A dumpload of ancient AGP cards Kingston Value DDR2-667 CL4 2T @CL3 1T Seagate 160GB 7200.10 LG IDE DVD-ROM
CoolingCoolingOSMonitor
Ghettomade CPU waterblock 49cc 2stroke engine copper radiator WinXP SP2 32bit ProView 17"
PowerCase
Tacens Radix V 550W Ghetto aluminium bench
  hide details
Reply

AGP bencher
(14 items)

CPUMotherboardGraphicsRAM
Ryzen R7 1700 Gigabyte GA-AX370-Gaming 5 Sapphire HD 6950 2GiB 2x8GB KFA2 HOF DDR4-3600
Hard DriveHard DriveHard DriveHard Drive
Crucial MX100 256GB Seagate 600 Series 240GB Seagate 7200.14 2TB Samsung F3 1TB
CoolingCoolingCoolingCooling
EKWB Supreme HF XSPC Rasa GPU EK XT360 EK 4.0
OSMonitorMonitorKeyboard
W10 Pro LG IPS235 LG E2250V KUL ES-87
PowerCaseMouseAudio
SF Leadex II 650W Lian Li PC-A05NB Logitech G9 Xonar DX
AudioAudio
SMSL SA-S3+Technics CB-250 Sennheiser HD555
CPUMotherboardRAMHard Drive
AMD A10-5700 Gigabyte F2A75M-HD2 G.SKILL Ares 2133 CL9 Hitachi 5K750
Hard DriveCoolingOSMonitor
Momentus .7 200GB Noctua NH-L9a Server 2012 R2 Standard AUO B156HW01
PowerCaseOther
PicoPSU-80-WI-25V AIO Aluminium Handmade TP-Link Archer Something Something Wi-Fi AC
CPUCPUCPUMotherboard
Core2Duo E6400 Core2Quad Q6600 Pentium Dual Core E5200 AsRock 4COREDUAL-SATA2 R2.0
GraphicsRAMHard DriveOptical Drive
A dumpload of ancient AGP cards Kingston Value DDR2-667 CL4 2T @CL3 1T Seagate 160GB 7200.10 LG IDE DVD-ROM
CoolingCoolingOSMonitor
Ghettomade CPU waterblock 49cc 2stroke engine copper radiator WinXP SP2 32bit ProView 17"
PowerCase
Tacens Radix V 550W Ghetto aluminium bench
  hide details
Reply
post #16 of 17
Quote:
Originally Posted by Liighthead View Post
problem with putting ur rad in their, is the temps wont go below 0, apperantly
or ambient... 4got lol
There won't be a problem for the OP because his goal is not to get to below 0, it was to try and keep it near 20C

Also, I think you guys are confusing things a little with the radiator - you're getting the placement wrong in your head and misunderstanding things because of that

If you chill the water and then have a radiator after that with ambient air passing through, it will increase the temp of the chilled water to ambient temp.

But that is not what you are doing with the slush box, you are putting the radiator INTO the slush box, thus instead of cooling the radiator with ambient air, you are cooling it with the water and ice slush bath. From their, the coolant passing through the radiator (being cooled by the slush) goes directly into your CPU waterblock.

As for the potential of a slush box - a properly set up slush box will keep a an overclocked Phenom II x6 near 0C at idle and around 20C under load - exactly what the OP was wanting

Check out Slappa's slush box HERE. His slush box setup allowed him to run a bunch of benchmarks at around 4.5Ghz.

It also allowed him to reach almost 5Ghz with his 1090T:




Quote:
Originally Posted by Artikbot View Post
The slush box is a thing I can't fit into the case... And the idea is having the thing nice and clean (and 100% stealthed )
Build it into your case yourself and make it look as stealth as you like
Edited by un-nefer - 3/28/11 at 4:23am
Crimson Basilisk
(25 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600K @ 5.1Ghz AsRock Extreme4 Gen3 Palit GTX 680 Jetstream 2GB Palit GTX 680 Jetstream 2GB
RAMRAMHard DriveHard Drive
G.Skill F3-12800CL9D-8GBXL G.Skill F3-12800CL9D-8GBXL Sandisk Extreme 120GB SSD Sandisk Extreme 120GB SSD
Hard DriveOptical DriveCoolingCooling
WD Caviar "Black" 1TB SATAII LG WH14NS40 Blu-ray Burner XSPC Rasa CPU (Acetal) Black RX360 Triple Fan Radiator
CoolingCoolingOSMonitor
XSPC DDC Two BayRes BMaverick Laing DDC (MCP350) Windows 7 Ultimate x64 Philips 201B 21" CRT
MonitorKeyboardPowerCase
ViewSonic VX922 19" LCD Diamond Digital Black Antec True Power 750w Antec LanBoy Air Red
MouseMouse PadAudioOther
Epic Gear Meduza (By GEIL) Steel Series QCK+ XL Asus Xonar DX ROCCAT Kave 5.1 Surround Sound Gaming Headset
Other
Sennheiser hd555
  hide details
Reply
Crimson Basilisk
(25 items)


CPUMotherboardGraphicsGraphics
Intel i7 2600K @ 5.1Ghz AsRock Extreme4 Gen3 Palit GTX 680 Jetstream 2GB Palit GTX 680 Jetstream 2GB
RAMRAMHard DriveHard Drive
G.Skill F3-12800CL9D-8GBXL G.Skill F3-12800CL9D-8GBXL Sandisk Extreme 120GB SSD Sandisk Extreme 120GB SSD
Hard DriveOptical DriveCoolingCooling
WD Caviar "Black" 1TB SATAII LG WH14NS40 Blu-ray Burner XSPC Rasa CPU (Acetal) Black RX360 Triple Fan Radiator
CoolingCoolingOSMonitor
XSPC DDC Two BayRes BMaverick Laing DDC (MCP350) Windows 7 Ultimate x64 Philips 201B 21" CRT
MonitorKeyboardPowerCase
ViewSonic VX922 19" LCD Diamond Digital Black Antec True Power 750w Antec LanBoy Air Red
MouseMouse PadAudioOther
Epic Gear Meduza (By GEIL) Steel Series QCK+ XL Asus Xonar DX ROCCAT Kave 5.1 Surround Sound Gaming Headset
Other
Sennheiser hd555
  hide details
Reply
post #17 of 17
dam nice! might give it a try. ( would rad size matter with a slush bucket o.O ? )

and i was thinking it might get to cold? and crack acrylic..
but if u dont go that low

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply

CPUMotherboardGraphicsRAM
2600k @ 4.4ghz Asus p8z68-v PRO EVGA gtx 460 EE + ESC 450 4gb ddr3 gskill
Hard DriveOSMonitorKeyboard
2 x 1tb samsung spinpoint windows 7 2 x 19" LCD 1440 x 900 :( Razer Black widow
PowerCaseMouse
Silverstone strider 1000w Plus 600t  Razer Naga
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Cooling Experiments
Overclock.net › Forums › Cooling › Cooling Experiments › Ghettochilled reservoir... Next semi-extreme level?
