6850 pencil/voltmod help - Page 2

post #11 of 42
Sorry to bump an old thread but I was wondering if OP was able to make any progress with this. I have the same card (6850 ZNFC) and would like to push it to ~1.3v to hopefully get it up to 1Mhz+ core =). Would rather do hard mod though and not pencil mod

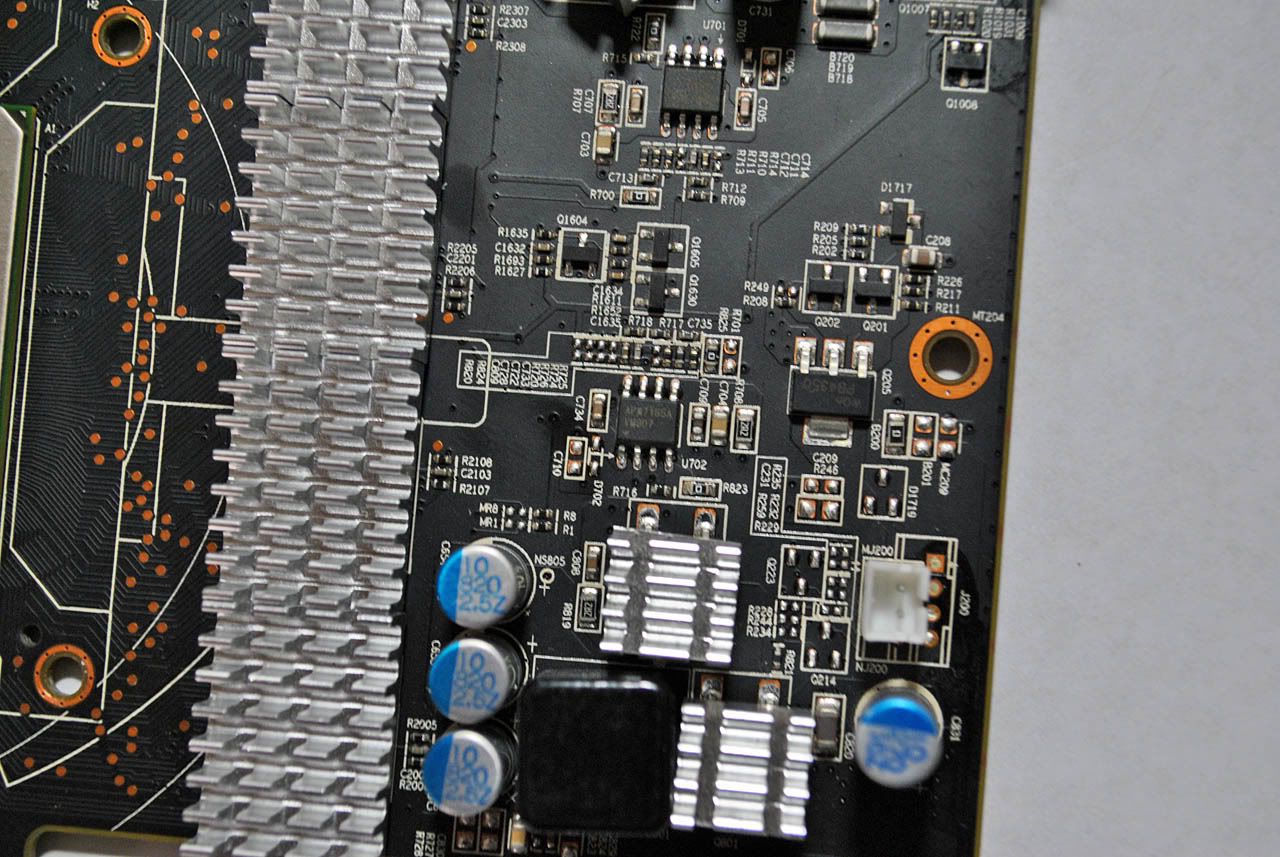

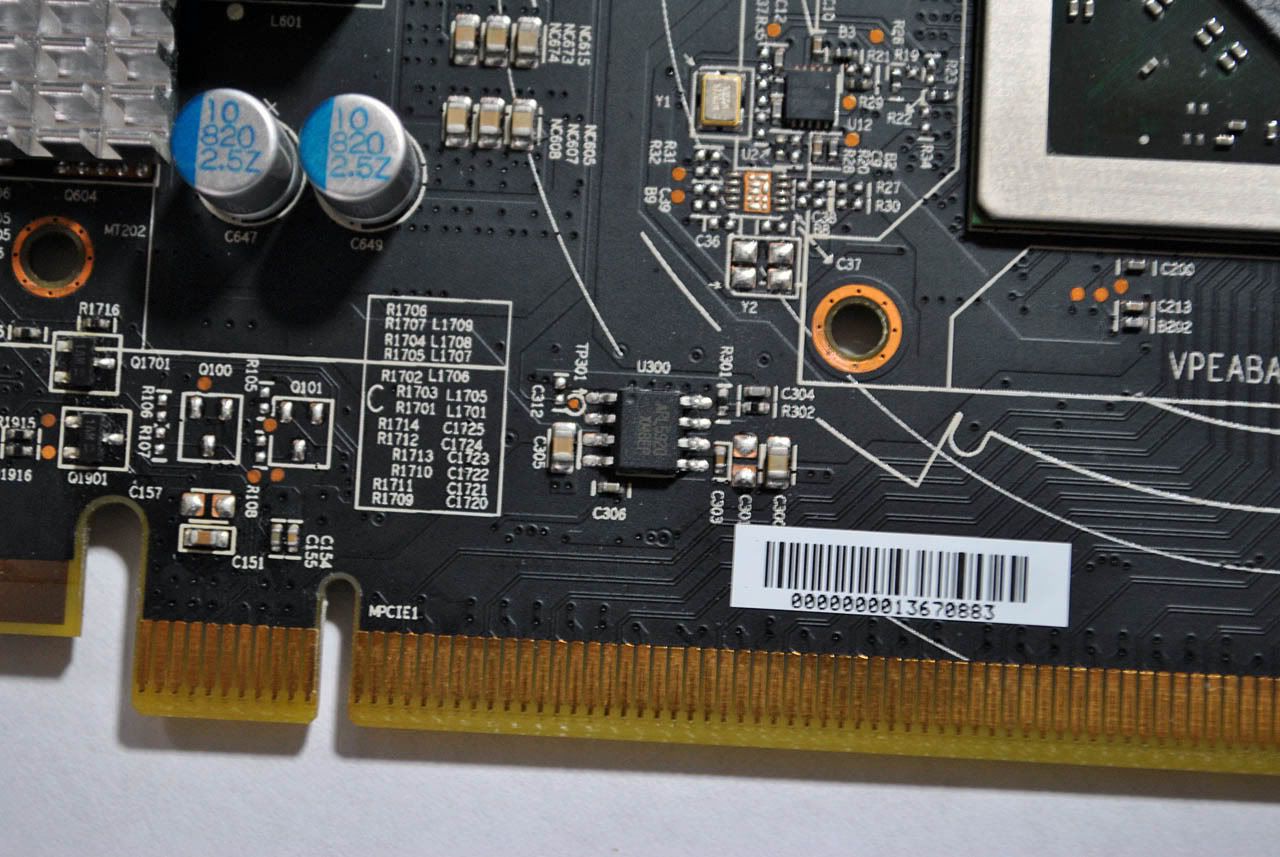

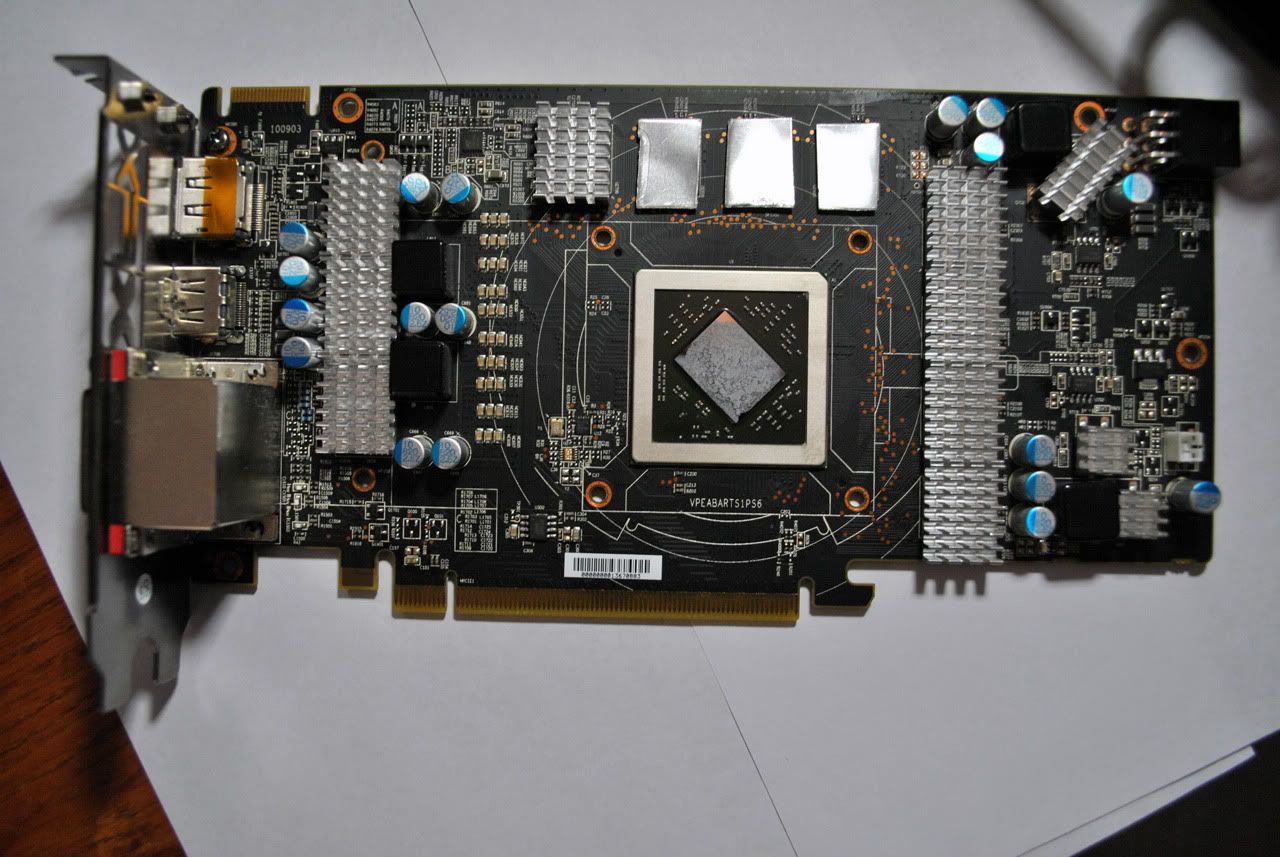

Some extra pics of the card in random spots: Warning: Spoiler! (Click to show)
I can snap pics of other areas of the cards if it helps, just let me know

(16 items)
