Aiming to get my 980x to 4.0GHz + - Page 2

post #11 of 121
Thread Starter

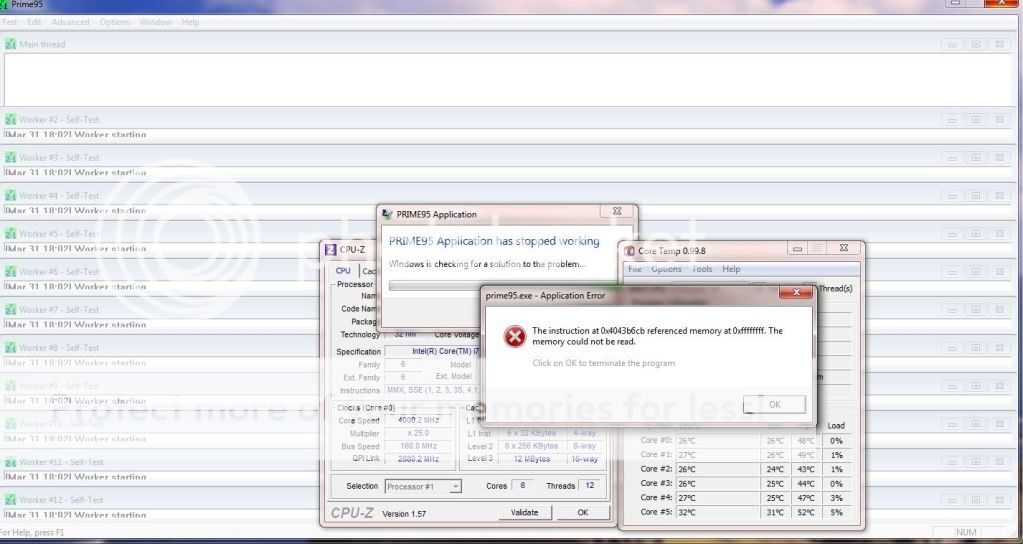

Ok i gave the below settings a try and got the following error:


Any suggestions for what to change? increase/decrease?
Quote:
Originally Posted by mymlan;12933635
The rated frequency is the most important aspect. I'm going to assume 1600 7-7-7-20. I'm going to toss some BIOS settings at you; give them a shot and I'd be happy to explain any options you'd like to know more about / don't understand.


Ai Overclock Tuner............................[Manual]
CPU Ratio Setting.............................[25.0]
Intel(r) SpeedStep(tm) Tech..................[Disabled]
Xtreme Phase Full Power Mode...........[Enabled]
BCLK Frequency.....................................[160]
PCIE Frequency.........................[101]
DRAM Frequency.........................[DDR3-1600MHz]
UCLK Frequency.........................[3000MHz]
QPI Link Data Rate.....................[5760MT/S]

CPU Voltage Control....................[Manual]
CPU Voltage............................[1.26250]
CPU PLL Voltage........................[1.80]
QPI/DRAM Core Voltage..................[1.26250]
IOH Voltage............................[1.14]
IOH PCIE Voltage.......................[1.50]
ICH Voltage............................[1.10]
ICH PCIE Voltage.......................[1.50]
DRAM Bus Voltage.......................[1.64]
DRAM DATA REF Voltage on CHA...........[Auto]
DRAM CTRL REF Voltage on CHA...........[Auto]
DRAM DATA REF Voltage on CHB...........[Auto]
DRAM CTRL REF Voltage on CHB...........[Auto]
DRAM DATA REF Voltage on CHC...........[Auto]
DRAM CTRL REF Voltage on CHC...........[Auto]

Load-Line Calibration..................[Enabled]
CPU Differential Amplitude.............[800mV]
CPU Clock Skew.........................[Normal]
CPU Spread Spectrum....................[Disabled]
IOH Clock Skew.........................[Normal]
PCIE Spread Spectrum...................[Disabled]
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
post #12 of 121
Looks like a QPI/IOH failure. I'd try bumping IOH to 1.16v and put QPI to 1.3v. Be sure to pick up RealTempGT, too. It's far more accurate than Coretemp and you don't need CPU-Z to monitor throttling. You can pick it up here:
http://www.techpowerup.com/realtemp/

Be sure to reference that BSOD list I sent you if you crash!
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
post #13 of 121
The very first thing I would suggest doing is disabling any power saving features. I'm not an expert but in order to have a stable OC you need stable voltages, especially under load. Your also going to want to adjust for vdroop. Enabling LLC (Load line calibration) will fix the vdroop. Disable EIST, C1E, and Turbo. From my experience, starting with an uncore modifier that is double your DRAM will grant you the most stability. Mine is 8x and 16x, although others are stable as well.
Hyperthreading: You may or may not want to disable hyperthreading. Hyperthreading enabled will increase your temps and can actually decrease your performance during most real world apps. It's a cool feature and if you want what you paid for, leave it enabled.
AbsoluteVirtue
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.22Ghz 1.26v GIGABYTE GA-X58A-UD5R GIGABYTE GTX460 (Fermi) 1GB G.SKILL PI Series 6GB
OSMonitorKeyboardPower
Win7 Ultimate 64-bit Hannspree 19" 1080p NMB rtb255c+ CORSAIR CMPSU-750TX
CaseMouseMouse Pad
AZZA Solano 1000 Kensington Wired USB Notebook Paper
  hide details
Reply
AbsoluteVirtue
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.22Ghz 1.26v GIGABYTE GA-X58A-UD5R GIGABYTE GTX460 (Fermi) 1GB G.SKILL PI Series 6GB
OSMonitorKeyboardPower
Win7 Ultimate 64-bit Hannspree 19" 1080p NMB rtb255c+ CORSAIR CMPSU-750TX
CaseMouseMouse Pad
AZZA Solano 1000 Kensington Wired USB Notebook Paper
  hide details
Reply
post #14 of 121
Quote:
Originally Posted by MoonGod12 View Post
The very first thing I would suggest doing is disabling any power saving features. I'm not an expert but in order to have a stable OC you need stable voltages, especially under load. Your also going to want to adjust for vdroop. Enabling LLC (Load line calibration) will fix the vdroop. Disable EIST, C1E, and Turbo. From my experience, starting with an uncore modifier that is double your DRAM will grant you the most stability. Mine is 8x and 16x, although others are stable as well.
Hyperthreading: You may or may not want to disable hyperthreading. Hyperthreading enabled will increase your temps and can actually decrease your performance during most real world apps. It's a cool feature and if you want what you paid for, leave it enabled.
You don't need to double your Uncore for Gulftown. Keep it at 2800-3000MHz to lighten the load on your IMC. Hyperthreading also no longer drops performance with HT-aware OS's; it will merely ignore the logical cores until there's a demand. Definitely disable all power-saving features.
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
post #15 of 121
Well I can’t give you much help, but I want to know something, are frequencies over 4ghz actually increasing performance?
Because I can clearly remember an article about the core 2 quad extreme suffering from loss of performance at speeds above 4ghz, is this the same case for the new architecture or am I really behind?
Edited by _Marvin_ - 3/31/11 at 11:28am
ASPIRE 5750G
(13 items)


CPUMotherboardGraphicsRAM
i5 Sandy Bridge @ 2900 Mhz Intel ID0104 GT 540M 2GB DX11 4GB DDR3 @ 1333/CL6
Hard DriveOptical DriveOSMonitor
Toshiba 640GB Slimtype DVD Win7 Home Premium 64bit LG D0250 1366x768
PowerCaseMouse Pad
90W Adapter 15.6 inch Elantech
  hide details
Reply
ASPIRE 5750G
(13 items)


CPUMotherboardGraphicsRAM
i5 Sandy Bridge @ 2900 Mhz Intel ID0104 GT 540M 2GB DX11 4GB DDR3 @ 1333/CL6
Hard DriveOptical DriveOSMonitor
Toshiba 640GB Slimtype DVD Win7 Home Premium 64bit LG D0250 1366x768
PowerCaseMouse Pad
90W Adapter 15.6 inch Elantech
  hide details
Reply
post #16 of 121
Thread Starter
Not sure my PMs are working, the site keeps going down as I try to send them, so i'll post here instead.

I tried again with the above settings:

Quote:
Looks like a QPI/IOH failure. I'd try bumping IOH to 1.16v and put QPI to 1.3v
And Prime95 crashes instantly, do i up it some more? or would you suggest I try a different approach, also I now have LinX to use instead/aswell as Prime95
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
post #17 of 121
I have very little experience with P95; I've found LinX to be much handier in producing helpful BSoD's. Knock down your BCLK to 133MHz and make 5MHz steps. Catch each BSoD and make the appropriate adjustments.
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
Leviathan
(13 items)

Workstation
(10 items)

Alexandria
(11 items)

CPUMotherboardGraphicsRAM
i7 980X @ 4.3 HT on Asus P6T Deluxe V2 Radeon 5970 + GT 240 PHYSX Corsair 12gb (horrible)
Hard DriveOSMonitorPower
64GB SSD boot + Raid 10 WDC Blues Pirated Win 7 (duh) Alienware AW2310 Corsair AX1200
Case
Antec 902 Modded
CPUMotherboardRAMHard Drive
Xeon E3-1265L V2 Asus P8C WS Kingston 32GB 1600MHz ECC Crucial M4 256GB
CoolingOSPowerAudio
Corsair H50 ESXi 6.0RC Corsair HX1000 Focusrite Scarlett 18i20
Other
Mellanox MNPA19-XTR
CPUMotherboardGraphicsRAM
Dual Intel Xeon L5630 Supermicro X8DTH-6F Radeon 7750 64GB 1066MHz Registered DDR3
Hard DriveHard DriveCoolingOS
4 x 4TB Hitachi SAS Ultrastar Crucial M4 256GB Dual NH-U9DX i4 vSphere 6.0RC
PowerCaseOther
Corsair AX1200 Norco RPC-4220 Mellanox MNPA19-XTR
  hide details
Reply
post #18 of 121
Thread Starter
Quote:
Originally Posted by mymlan View Post
I have very little experience with P95; I've found LinX to be much handier in producing helpful BSoD's. Knock down your BCLK to 133MHz and make 5MHz steps. Catch each BSoD and make the appropriate adjustments.
Ah I see now, sorry i forgot we was at 160 lol

I'll give 133 a go and see what happens.

edit - running LinX at 133 as we speak, will let it finish and up it by 5 and report back!

edit 2 - Ok so I tried 138 and it wouldn't reach windows it would just hang on a black screen with the cursor visible (I was able to move the cursor)

Also when I got into windows using 133 it took a while before i could do anything.
Edited by Sast - 3/31/11 at 2:00pm
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
post #19 of 121
Quote:
Originally Posted by mymlan View Post
You don't need to double your Uncore for Gulftown. Keep it at 2800-3000MHz to lighten the load on your IMC. Hyperthreading also no longer drops performance with HT-aware OS's; it will merely ignore the logical cores until there's a demand. Definitely disable all power-saving features.
I didn't know this about HT. Are temps affected by HT when turned on? How does Windows determine when it's necessary or not?

Also Memtest86. Run it if you get errors during prime95 Blend test.
AbsoluteVirtue
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.22Ghz 1.26v GIGABYTE GA-X58A-UD5R GIGABYTE GTX460 (Fermi) 1GB G.SKILL PI Series 6GB
OSMonitorKeyboardPower
Win7 Ultimate 64-bit Hannspree 19" 1080p NMB rtb255c+ CORSAIR CMPSU-750TX
CaseMouseMouse Pad
AZZA Solano 1000 Kensington Wired USB Notebook Paper
  hide details
Reply
AbsoluteVirtue
(13 items)


CPUMotherboardGraphicsRAM
i7 930 @ 4.22Ghz 1.26v GIGABYTE GA-X58A-UD5R GIGABYTE GTX460 (Fermi) 1GB G.SKILL PI Series 6GB
OSMonitorKeyboardPower
Win7 Ultimate 64-bit Hannspree 19" 1080p NMB rtb255c+ CORSAIR CMPSU-750TX
CaseMouseMouse Pad
AZZA Solano 1000 Kensington Wired USB Notebook Paper
  hide details
Reply
post #20 of 121
Thread Starter
So would you suggest I run memtest before I try anything else?

Sent from my Desire HD using Tapatalk
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
Molly Coddled v2
(13 items)


CPUMotherboardGraphicsRAM
i5 2500k Asus p8z68-v pro XFX 2GB 6950 (soon to be crossfire) Corsair Vengeance
Hard DriveCoolingOSMonitor
Samsung 830 128GB SSD Corsair H60 Win 7 64-Bit Benq XL2420T
KeyboardPowerCaseMouse
Steelseries 6G V2 Corsair TX650 Xigmatek Elysium MX518
Mouse Pad
Icemat
  hide details
Reply
New Posts  All Forums:Forum Nav:
  Return Home
  Back to Forum: Intel CPUs
Overclock.net › Forums › Intel › Intel CPUs › Aiming to get my 980x to 4.0GHz +
