Really hot GTX460s...

post #1 of 12
Thread Starter

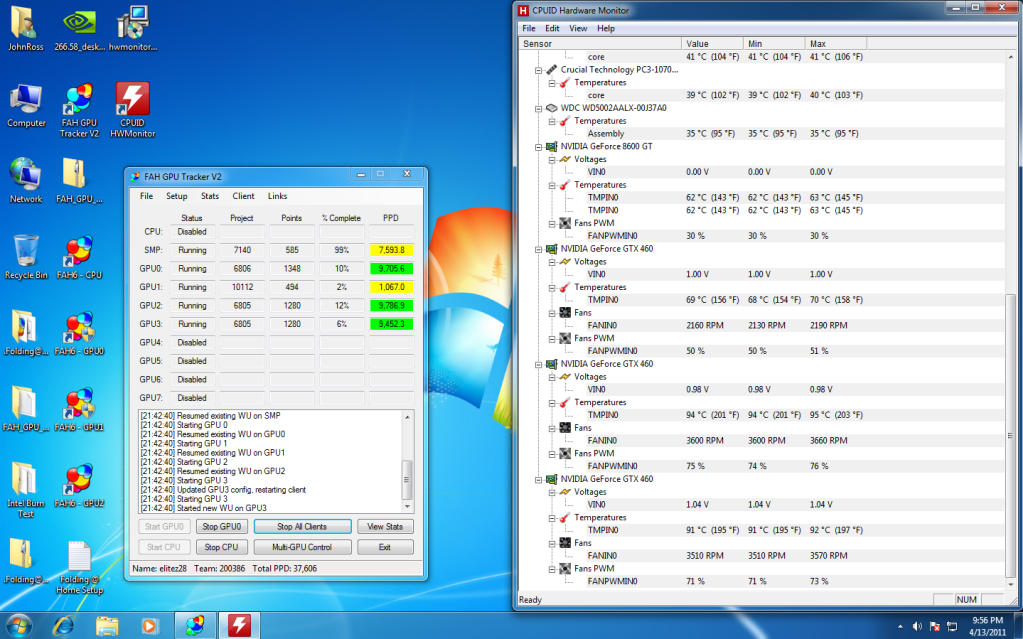

IMO these cards are a bit warm, once in awhile I get a BSOD with BCode 116 (From my understanding its the GPUs hitting the temp threshold.) I just grabbed and extra 120mm fan and threw it behind them but this still looks hot to me. (My 580 runs 80c all day with its OC) Opinions and ideas?



BTW these are Galaxy cards, no card in this rig is OC'ed. The nice and cool 460 is an EVGA.
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply

Gear mentioned in this thread:

post #2 of 12
Maybe pull the stock cooler off of it and make sure the factory TIM application doesn't look like it did on my GTX470.

Edited by Caleal - 4/13/11 at 9:32pm
Grog
(21 items)

TC Folding Gimp
(14 items)


CPUMotherboardGraphicsGraphics
i7-950 Asus P6X58D-E Asus ENGTX470 BFG 9800GT
RAMHard DriveOptical DriveCooling
Corsair Dominator GT Velociraptor 3000HLFS Lite On DVD burner EK Supreme HF
CoolingCoolingCoolingCooling
AquagraFX470 EK FC-88 Koolance RP402x2 MCP35x pumps
CoolingCoolingOSMonitor
Phobya Extreme 200 and Quad 480 radiators. 9x Akasa Viper fans Windows 7 Ultimate Old LG Flatron 1680x1050
KeyboardPowerCase
Logitech G15 + Logitech G13 game pad Thermaltake 850W Corsair 600T
CPUMotherboardGraphicsRAM
Phenom x4 9650 Cheap MSI board EVGA GTX580 SC Junk PC-800 DDR2
Hard DriveOptical DriveCoolingOS
WD Blue Generic DVD Cuplex Kryos HF CPU block, Swiftech MCW82 GPU b... Windows 7 Home Premium
PowerCase
Antec True Power 650W >10 year old Antec something or other.
  hide details
Reply
Grog
(21 items)

TC Folding Gimp
(14 items)


CPUMotherboardGraphicsGraphics
i7-950 Asus P6X58D-E Asus ENGTX470 BFG 9800GT
RAMHard DriveOptical DriveCooling
Corsair Dominator GT Velociraptor 3000HLFS Lite On DVD burner EK Supreme HF
CoolingCoolingCoolingCooling
AquagraFX470 EK FC-88 Koolance RP402x2 MCP35x pumps
CoolingCoolingOSMonitor
Phobya Extreme 200 and Quad 480 radiators. 9x Akasa Viper fans Windows 7 Ultimate Old LG Flatron 1680x1050
KeyboardPowerCase
Logitech G15 + Logitech G13 game pad Thermaltake 850W Corsair 600T
CPUMotherboardGraphicsRAM
Phenom x4 9650 Cheap MSI board EVGA GTX580 SC Junk PC-800 DDR2
Hard DriveOptical DriveCoolingOS
WD Blue Generic DVD Cuplex Kryos HF CPU block, Swiftech MCW82 GPU b... Windows 7 Home Premium
PowerCase
Antec True Power 650W >10 year old Antec something or other.
  hide details
Reply
post #3 of 12
Thread Starter
Oh damn, I was planning on doing my XFX 8600 tonite, but I might have to pull the really hot 460 too.
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
post #4 of 12
u sure the fan of GTX 460 is working properly?
The power cord for removeable fan of Galaxy GTX460 seems easy to be unplugged/loosen if you ever tried to "open" that fan shroud.
post #5 of 12
Thread Starter
Yeah, the hot air is rolling out of those cards. I think HWMon would tell me if they weren't (by not displaying the current fan speed). I did open that thing up once, but I was really careful, I noticed the poor wiring to the door also.
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
post #6 of 12
The Galaxy cards have been known to suck at cooling when placed next to each other.
post #7 of 12
Quote:
Originally Posted by Captain_cannonfodder View Post
The Galaxy cards have been known to suck at cooling when placed next to each other.
This. Try to space them out if you can.
Folding Beast
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 EVGA x58 758 R.2 EVGA GT210 6gb Patriot DDR3 1600C8
Hard DriveOSMonitorPower
WD 500gb Ubuntu 10.4 ACER 22" 1080P Antec Earthwatts 430w Delta
Case
CM Storm Sniper
  hide details
Reply
Folding Beast
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 EVGA x58 758 R.2 EVGA GT210 6gb Patriot DDR3 1600C8
Hard DriveOSMonitorPower
WD 500gb Ubuntu 10.4 ACER 22" 1080P Antec Earthwatts 430w Delta
Case
CM Storm Sniper
  hide details
Reply
post #8 of 12
Quote:
Originally Posted by elitez28 View Post
Oh damn, I was planning on doing my XFX 8600 tonite, but I might have to pull the really hot 460 too.
When I first got my GTX470 a few months ago, it was hitting over 90ºC under load at stock clock speed/volts.
After cleaning up that horrible mess of TIM, it ran MUCH cooler. There was so much factory applied TIM that it was holding the heat sink off the GPU, only one edge was in reasonably good contact with the GPU.

It has been water cooled for about a month now though, hasn't been above 45ºC, even folding 24/7 with it over clocked and over volted.
Grog
(21 items)

TC Folding Gimp
(14 items)


CPUMotherboardGraphicsGraphics
i7-950 Asus P6X58D-E Asus ENGTX470 BFG 9800GT
RAMHard DriveOptical DriveCooling
Corsair Dominator GT Velociraptor 3000HLFS Lite On DVD burner EK Supreme HF
CoolingCoolingCoolingCooling
AquagraFX470 EK FC-88 Koolance RP402x2 MCP35x pumps
CoolingCoolingOSMonitor
Phobya Extreme 200 and Quad 480 radiators. 9x Akasa Viper fans Windows 7 Ultimate Old LG Flatron 1680x1050
KeyboardPowerCase
Logitech G15 + Logitech G13 game pad Thermaltake 850W Corsair 600T
CPUMotherboardGraphicsRAM
Phenom x4 9650 Cheap MSI board EVGA GTX580 SC Junk PC-800 DDR2
Hard DriveOptical DriveCoolingOS
WD Blue Generic DVD Cuplex Kryos HF CPU block, Swiftech MCW82 GPU b... Windows 7 Home Premium
PowerCase
Antec True Power 650W >10 year old Antec something or other.
  hide details
Reply
Grog
(21 items)

TC Folding Gimp
(14 items)


CPUMotherboardGraphicsGraphics
i7-950 Asus P6X58D-E Asus ENGTX470 BFG 9800GT
RAMHard DriveOptical DriveCooling
Corsair Dominator GT Velociraptor 3000HLFS Lite On DVD burner EK Supreme HF
CoolingCoolingCoolingCooling
AquagraFX470 EK FC-88 Koolance RP402x2 MCP35x pumps
CoolingCoolingOSMonitor
Phobya Extreme 200 and Quad 480 radiators. 9x Akasa Viper fans Windows 7 Ultimate Old LG Flatron 1680x1050
KeyboardPowerCase
Logitech G15 + Logitech G13 game pad Thermaltake 850W Corsair 600T
CPUMotherboardGraphicsRAM
Phenom x4 9650 Cheap MSI board EVGA GTX580 SC Junk PC-800 DDR2
Hard DriveOptical DriveCoolingOS
WD Blue Generic DVD Cuplex Kryos HF CPU block, Swiftech MCW82 GPU b... Windows 7 Home Premium
PowerCase
Antec True Power 650W >10 year old Antec something or other.
  hide details
Reply
post #9 of 12
Thread Starter
Quote:
Originally Posted by Captain_cannonfodder View Post
The Galaxy cards have been known to suck at cooling when placed next to each other.
Quote:
Originally Posted by louze001 View Post
This. Try to space them out if you can.
Okay, I'll swap them around tonite and see where that gets me.
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
post #10 of 12
Thread Starter
Sounds like I really need to tear them down and reapply also.
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
The Fun Rig
(13 items)


CPUMotherboardGraphicsRAM
Intel 980x @3.73 Ghz Rampage III Extreme EVGA SC GTX580 G.Skill 24GB @ 1600 Mhz
Hard DriveOptical DriveOSMonitor
160 GB X-25M, 600GB VR Lite-On Blu-Ray Burner Windows 7 Ultimate x64 Dell U2711
KeyboardPowerCaseMouse
Logitech G19 Silverstone ST-1500 Antec 1200 Razer Lachesis
  hide details
Reply
