BUT AHA! AQUAERO 5 IS HERE! *edited title for update! - Page 5

post #41 of 173
Quote:
Originally Posted by XNine;13304655
I bought mine from Aquatuning. It took a couple of weeks to get in. The shipping was VERY fast from Germany. total of 4 days or something like that. If you're going to buy an Aquatube (reservoir) to put in a 5.25 bay, I reccomend getting the bracket and the double-faceplate for it, otherwise you'll have a card time getting it all set up.

I figured that's where you got it from. I don't need the Aquatube reservoir, but trying to piece together all the components and add ons I may want. Aquatuning info is not 100% clear on everything, but I'm used to dealing with German components already, LOL
Edited by ezveedub - 4/28/11 at 10:21am

CPUMotherboardGraphicsRAM
Intel I7 860  Asus P7P55D-E Pro MSI ATI 6990 8gb G.Skill 1600 DDR3 (4x2Gb)
RAMHard DriveHard DriveOptical Drive
G. Skill 1600 DDR3 OCZ Agility 2 120Gb  Seagate SATA Barracuda 160GB TSH663B DVD burner
CoolingCoolingCoolingCooling
EK Supreme HF XSPC RC360 XSPC DDC Reservoir EK-FC6990 - EN (Nickel)
OSMonitorKeyboardPower
Windows 10 64bit Pro Gateway FHX2300 Microsoft Wireless Multimedia V2 PC Power & Cooling Silencer 750 Quad
CaseMouseAudio
Cooler Master HAF 932 Microsoft Wireless Optical Creative 5.1
  hide details
Reply

CPUMotherboardGraphicsRAM
Intel I7 860  Asus P7P55D-E Pro MSI ATI 6990 8gb G.Skill 1600 DDR3 (4x2Gb)
RAMHard DriveHard DriveOptical Drive
G. Skill 1600 DDR3 OCZ Agility 2 120Gb  Seagate SATA Barracuda 160GB TSH663B DVD burner
CoolingCoolingCoolingCooling
EK Supreme HF XSPC RC360 XSPC DDC Reservoir EK-FC6990 - EN (Nickel)
OSMonitorKeyboardPower
Windows 10 64bit Pro Gateway FHX2300 Microsoft Wireless Multimedia V2 PC Power & Cooling Silencer 750 Quad
CaseMouseAudio
Cooler Master HAF 932 Microsoft Wireless Optical Creative 5.1
  hide details
Reply
post #42 of 173
Quote:
Originally Posted by XNine;13304655
I bought mine from Aquatuning. It took a couple of weeks to get in. The shipping was VERY fast from Germany. total of 4 days or something like that. If you're going to buy an Aquatube (reservoir) to put in a 5.25 bay, I reccomend getting the bracket and the double-faceplate for it, otherwise you'll have a card time getting it all set up.

When you did order it ?
I have mine backordered over there (at.de) since 1 and 1/2 monthes and yesterday it got (again) 10 days push forward...now expected on may 09th ?! mad.gifmad.gif
(that's xfire biggrin.gif)
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
post #43 of 173
Thread Starter
Quote:
Originally Posted by oc_geek;13328367
When you did order it ?
I have mine backordered over there (at.de) since 1 and 1/2 monthes and yesterday it got (again) 10 days push forward...now expected on may 09th ?! mad.gifmad.gif
(that's xfire biggrin.gif)

Interesting.

I ordered mine on 4/10. Try emailing them and asking. I did however order 300 bucks worth of stuff from them so maybe they got one in and didn't want the rest of my order sitting there?
post #44 of 173
Quote:
Originally Posted by XNine;13352248
Interesting.

I ordered mine on 4/10. Try emailing them and asking. I did however order 300 bucks worth of stuff from them so maybe they got one in and didn't want the rest of my order sitting there?

eek.gif ah here we go....so you took MINE ?!?

...better i don't tell you how much stuff i had ordered from them...def more than 300....and believe me i asked many times
wierd...third time in a row that i split order to unlock shipment of my material...btw...due to A5 undelivered
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
post #45 of 173
Thread Starter
Quote:
Originally Posted by oc_geek;13354636
eek.gif ah here we go....so you took MINE ?!?

...better i don't tell you how much stuff i had ordered from them...def more than 300....and believe me i asked many times
wierd...third time in a row that i split order to unlock shipment of my material...btw...due to A5 undelivered

If it makes you feel any better, the box looked like it was water damaged... I'll be checking the A5 soon to make sure they didn't send me something they dropped in a bathtub. Everything else came in boxes that looked nice and new. The box for the A5 looked like it had been sitting around since 1875 in a desert....
post #46 of 173
Quote:
Originally Posted by XNine;13354760
If it makes you feel any better, the box looked like it was water damaged... I'll be checking the A5 soon to make sure they didn't send me something they dropped in a bathtub. Everything else came in boxes that looked nice and new. The box for the A5 looked like it had been sitting around since 1875 in a desert....


eek.gif ...no no i'm not feeling better...
but that's perhaps headscratch.gif why they call it ...Aquaero ?! isn't it ?
I really hope it is just fine helpinghand.gif

I just got email mine is arrived !! will be shipped tomorrow devil-smiley-019.gif:

Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
post #47 of 173
Thread Starter
Quote:
Originally Posted by oc_geek;13367054

eek.gif ...no no i'm not feeling better...
but that's perhaps headscratch.gif why they call it ...Aquaero ?! isn't it ?
I really hope it is just fine helpinghand.gif

I just got email mine is arrived !! will be shipped tomorrow devil-smiley-019.gif:


Nice! Lemme know how it turns out when it gets there. I swear to god if my unit is DOA I will start spitting fire!

Aside from the box that looked like hell, the unit itself actually looks like a solid piece of gear. Put together very well, no cheap-ass joints or soldering done. This might be one of the cleanest PCB's to have this much stuff on it, ever.
post #48 of 173
Quote:
Originally Posted by XNine;13368810
Nice! Lemme know how it turns out when it gets there. I swear to god if my unit is DOA I will start spitting fire!

Aside from the box that looked like hell, the unit itself actually looks like a solid piece of gear. Put together very well, no cheap-ass joints or soldering done. This might be one of the cleanest PCB's to have this much stuff on it, ever.

Sure man ! gunner2.gif have fun with yours i'm pos it will be really fine

Best
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
post #49 of 173
Finally mine too arrived...the Aquaero suite will come in the coming weeks though but you can configure it on device with remote or keys

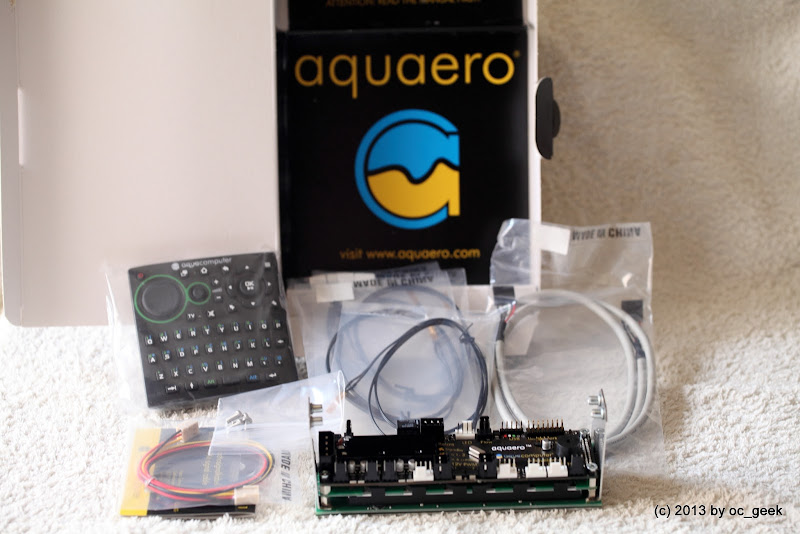

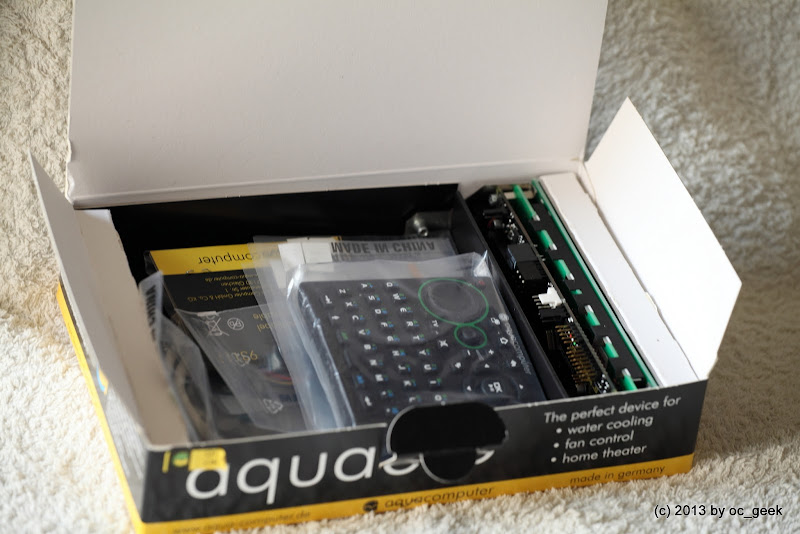

open up the relatively small box we find out what's inside...


inside we have:
- Aquaero5 controller with tiny "manual"
- 4x temp sensors
- USB cable
- 4x skrews for bay mounting
- Aquabus (if you have other devices to connect
- remote (IR)

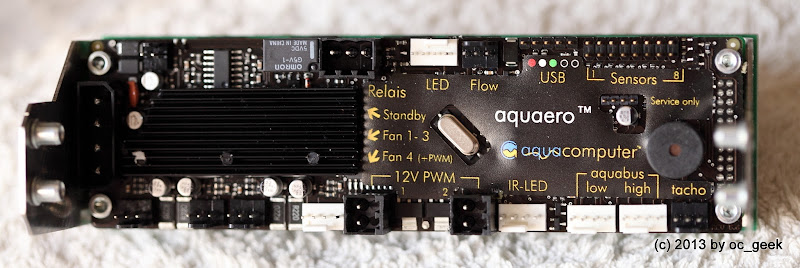

the back of the device is liteally full of headers...more later on

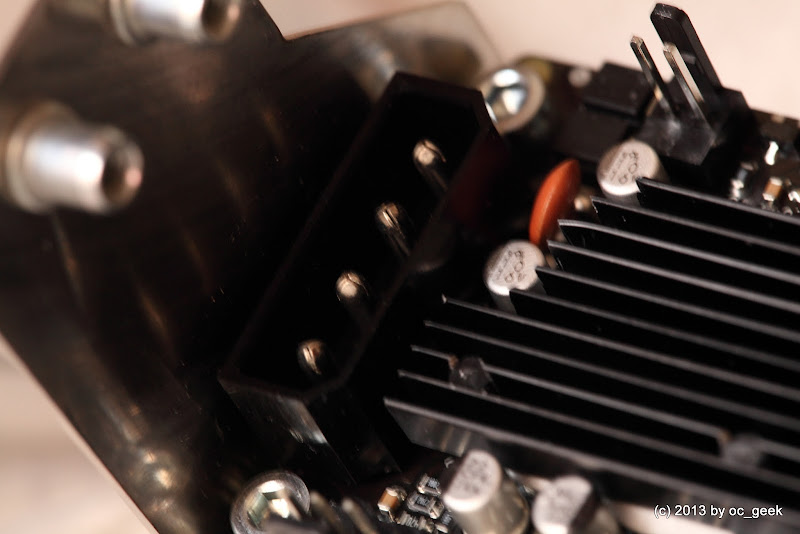

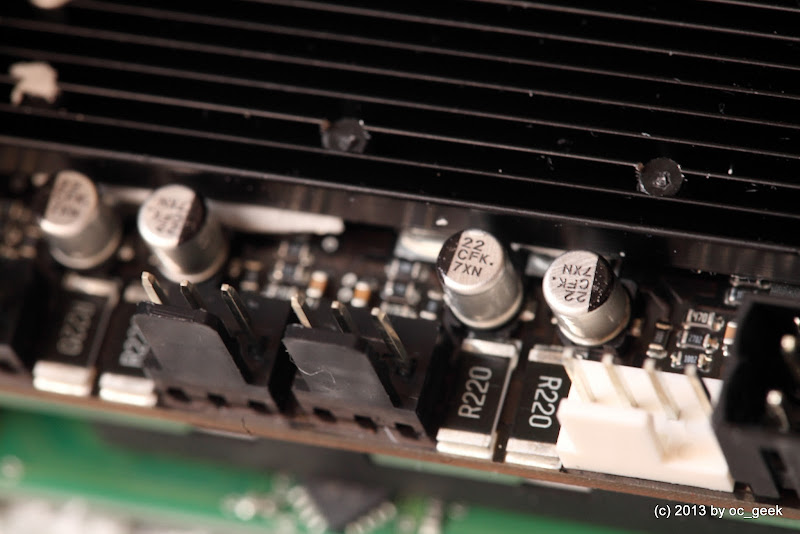

it has a heatspreader an back of the VRM modules

mechanically sturdy, made of three PCB sandwitch (GUI, Server card, Connectors)

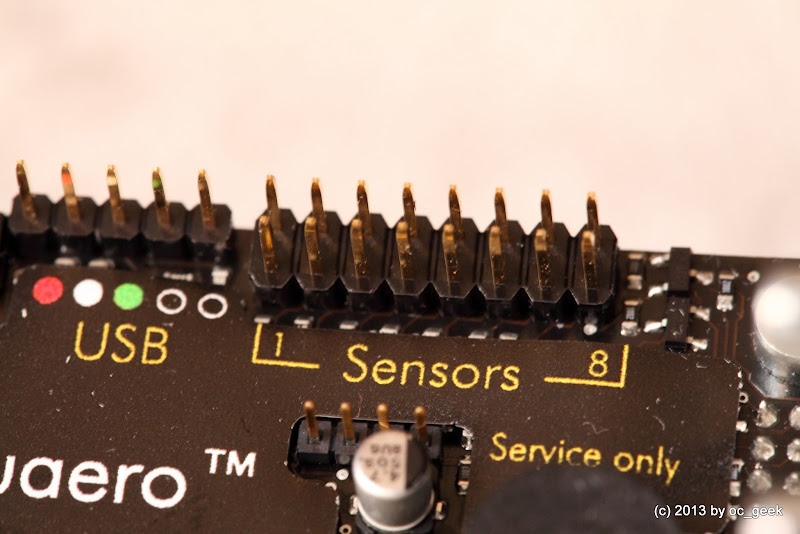

Main headers are:

- StandBy power header (2P)

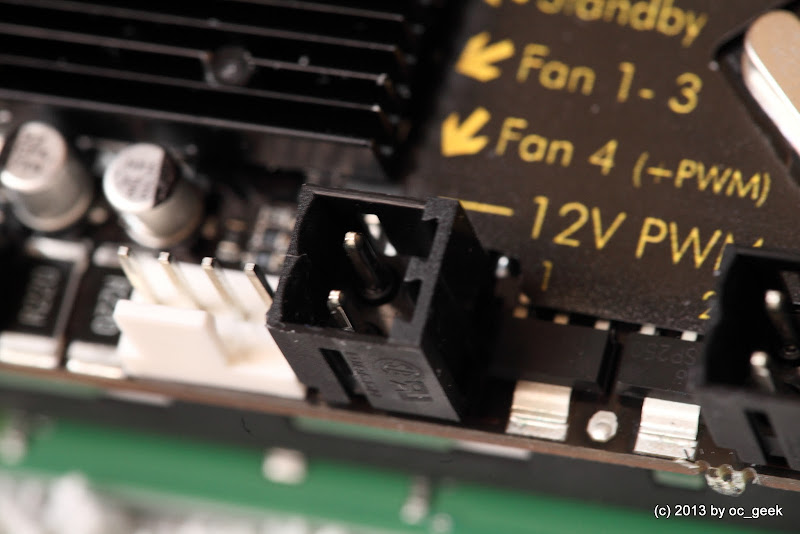

- 4x FAN Channels (3x3P + 1x4P with PWM (optional)) - max 5A in total

- 2x PWM output 12v 16KHz signal to control power (max 1A)

- 8x sensor headers (2P)

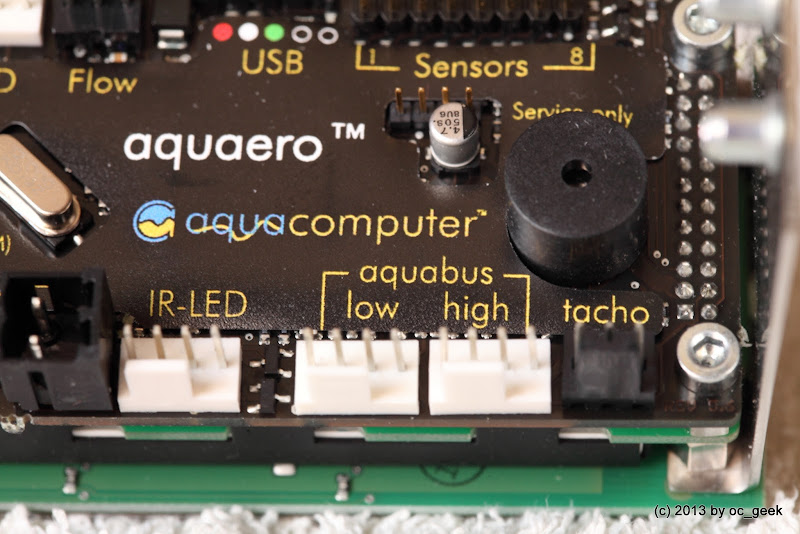

- Buzzer (alerts) Aquabus, Tacho etc..

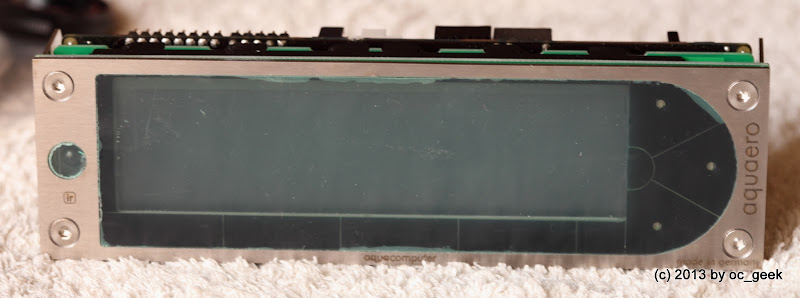

It comes at stock with a silver faceplate, that is replaceable. Black is option that you can exchange, as i did

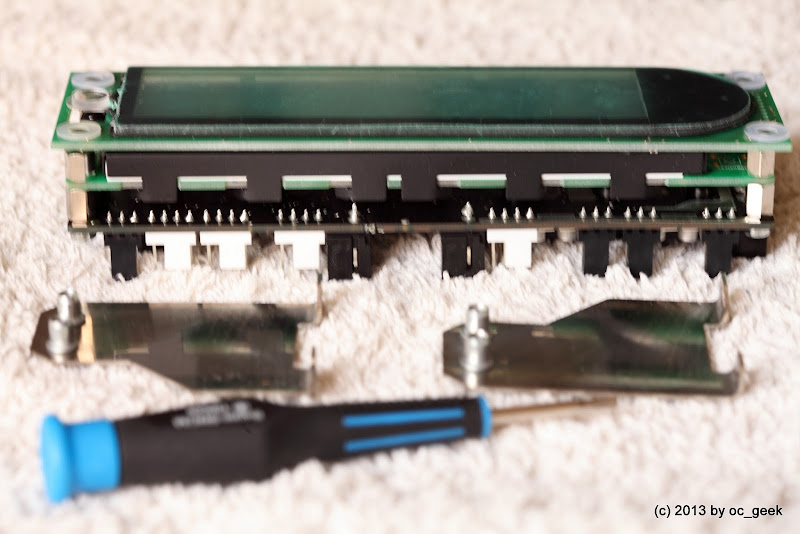

you have to unskrew the faceplate (mind that the skrew also hold the bay mount wings)


at the right side we have the PCB to PCB connector

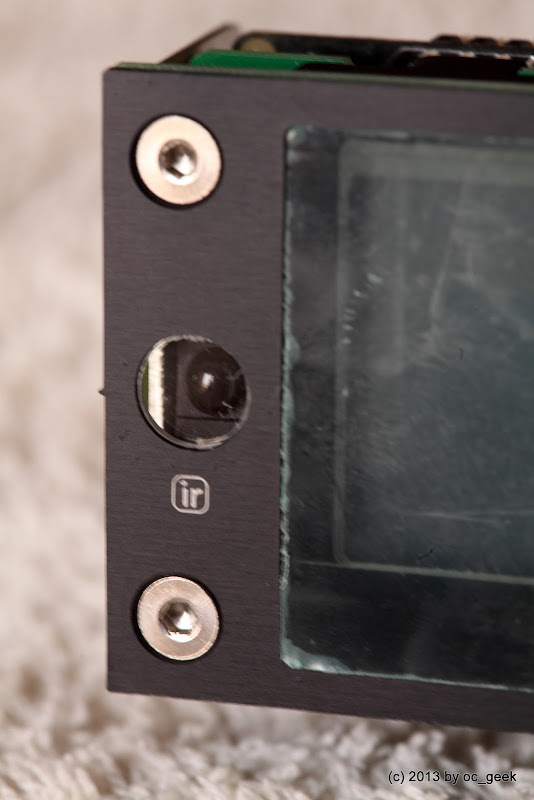

and at the left the IR receiver

changing faceplate is really easy while you need to do it without a rush to keep things at their place

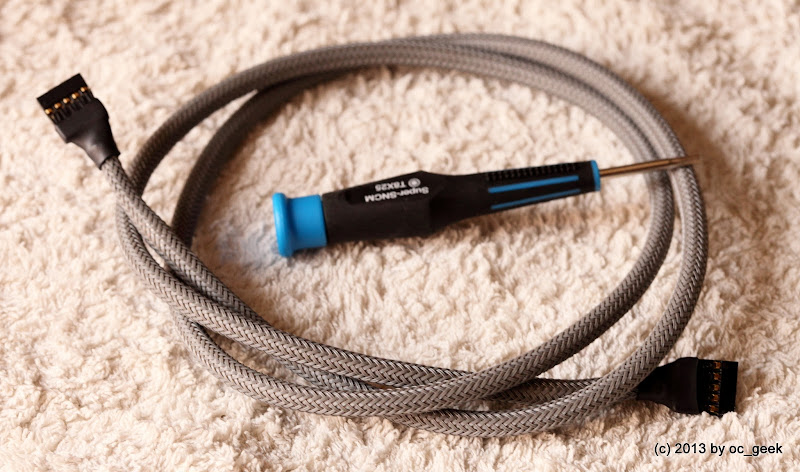

let's sleeve the USB cable indeed...biggrin.gif

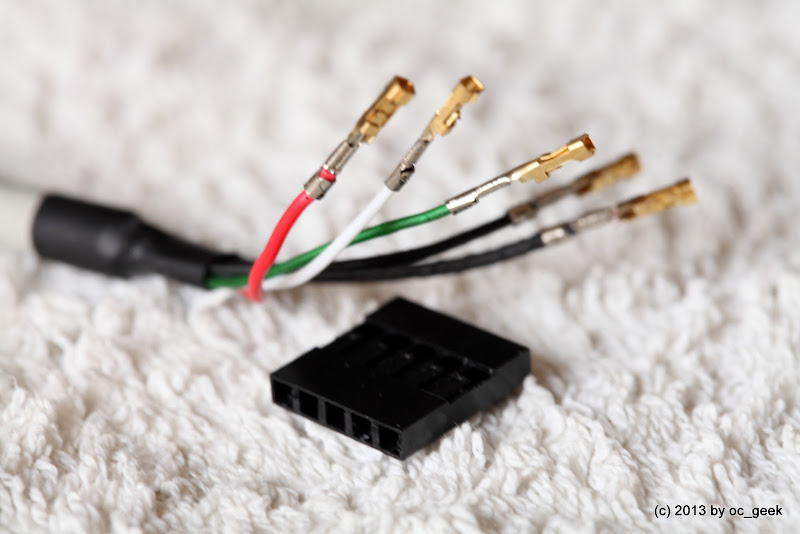

the connector is easily removed so the sleeeve can slide over the cable


connector back in place, heatsring applied and done
Mind if u use a heatgun for the heatshring to cover the connector with some tape (that u remove after) cse those headers are made of chocolate and they MELT DOWN very easily! eek.gif

i had prepared all the cables for the A5 and tagged them since those were almost a forest...

so far (i'm not done) i have sensors (you know those ae yellow if u read all posts...biggrin.gif) includin flowmeter

and Fan headers

so let's power this thing up and see... (i recognized i had exchanged two pins of the flowmeter cable the 5V and the signal infact...that made A5 a bit crazy at start eek.gif ...but no pain to it ...luky me)

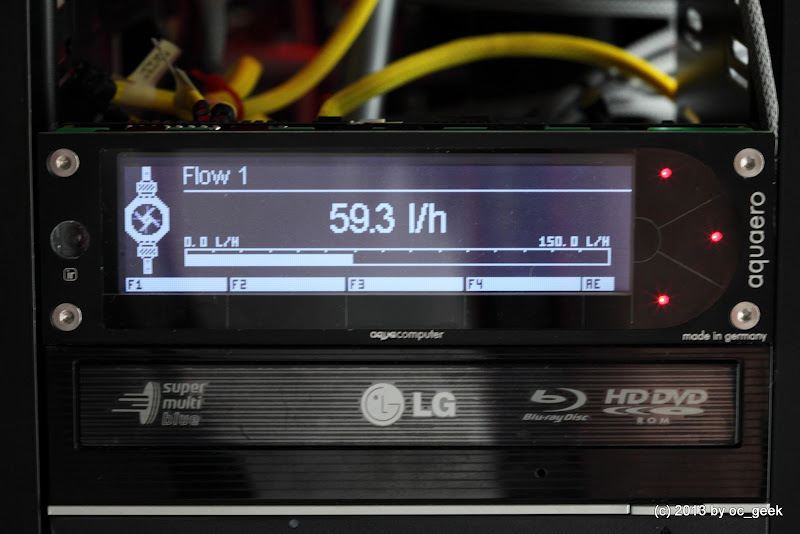

water il flowing...good biggrin.gif i'm around one liter per minute (Laing D5 pums are set on tag 3)

the ambient temperature and one of the RAD temp sensors (the 1.5 deg perhaps is due to the pumps themself injecting heat in the flow)
Edited by oc_geek - 5/8/11 at 2:03am
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
Simulator
(18 items)


CPUMotherboardGraphicsRAM
Intel Core i7-4930K 3.4GHz Asus Rampage iV Black Edition 2X NVIDIA GTX780Ti-3GB SLI  GSKILL Ripjaws Z 4x4GB
Hard DriveOptical DriveCoolingCooling
SSD 3.5" 120GB Ocz Vertex 2 Bluray Watercooling CPU, GPU with Aquacomputer Gear Noiseblocker eLoop B12-3
CoolingOSMonitorKeyboard
Aquacomputer Airplex Modularity 360 copper x3 Win 7 64bit Super FOV 106" Screen Logitech G19
PowerCaseMouseAudio
Corsair AX 1200i CaseLabs TH10 Logitech G9X On board
Other
Buttkicker Mini Concert and 2Ohm 200W Power Amp...
  hide details
Reply
post #50 of 173
The PWM channels have a frequency of 16 kHz wink.gif
