i7-2600k TMonitor Irregularity

post #1 of 6
Thread Starter
I have my i7-2600k running at 4.8GHz 24/7. While it's prime95 stable, I noticed while running TMonitor, I get a brief dip in frequency every 2 to 3 seconds. Meanwhile, CPU-Z shows 4.8GHz with no fluctuation whatsoever. Should I be concerned, or is this normal? Also while idle, TMonitor shows my CPU at 1.6GHz while CPU-Z continues to show it at 4.8GHz.

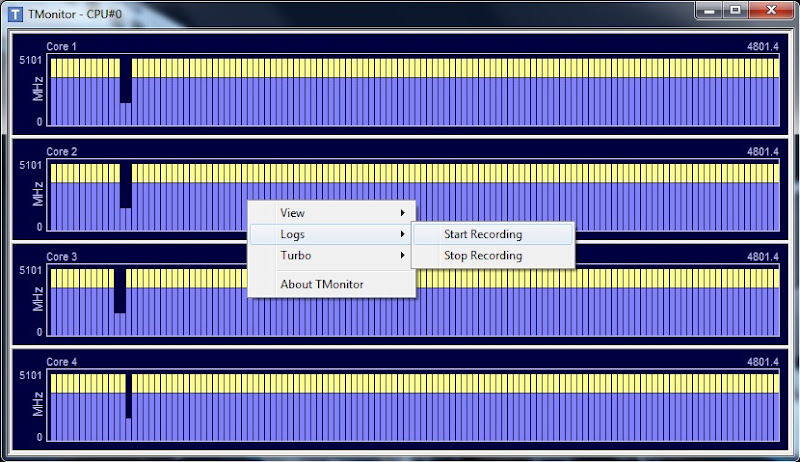

While running Prime95:


While idle:


Bios Settings:
Code:
CPU Clock Ratio .......................................[ 48
Internal CPU PLL Overvoltage...........................[ Enabled
Real Time Ratio Changes In OS .........................[ Disabled
Intel(R) Turbo Boost Tech .............................[ Disabled
Turbo Ratio (Core 1)...................................[ Auto
Turbo Ratio (Core 2)...................................[ Auto
Turbo Ratio (Core 3)...................................[ Auto
Turbo Ratio (Core 4)...................................[ Auto
Turbo Power Limit (Watts)..............................[ 350
Turbo Current Limit (Amps).............................[ 350
CPU Cores Enabled ............................ ........[ All
CPU Multi Threading....................................[ Disabled
CPU Enhanced Halt (C1E) ...............................[ Disabled
C3/C6 State Support ...................................[ Disabled
CPU Thermal Monitor ...................................[ Disabled
CPU EIST Function .....................................[ Disabled
Bi-Directional PROCHOT ................................[ Disabled

Edited by cmeeks - 4/18/11 at 12:14pm

CPUMotherboardGraphicsRAM
i7-2600k Asus P8Z68 Deluxe MSI N250GTS TwinFrozr 1G OC 2x4GB Corsair XMS3 2133 (9-11-10-28)
CoolingMonitorPowerCase
Corsair H50 Dell U2412HM Corsair TX650W Corsair 650D
Other
D-Link Wireless N 300 PCI Adapter
  hide details
Reply

CPUMotherboardGraphicsRAM
i7-2600k Asus P8Z68 Deluxe MSI N250GTS TwinFrozr 1G OC 2x4GB Corsair XMS3 2133 (9-11-10-28)
CoolingMonitorPowerCase
Corsair H50 Dell U2412HM Corsair TX650W Corsair 650D
Other
D-Link Wireless N 300 PCI Adapter
  hide details
Reply
post #2 of 6
Im getting the same thing with mine. Thanks for posting this for me
...
(13 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.8 GHZ Gigabyte P67A-UD5 B3 EVGA 560 ti Corsair Vengeance 8GB 2X4GB 1600 CL9-9-9-24
Hard DriveOSPowerCase
Western Digital Black 1TB Win 7 x86 Corsair TX850W 850W Coolermaster Haf X
Mouse Pad
Paper duck-taped to my desk.
  hide details
Reply
...
(13 items)


CPUMotherboardGraphicsRAM
i7 2600k @ 4.8 GHZ Gigabyte P67A-UD5 B3 EVGA 560 ti Corsair Vengeance 8GB 2X4GB 1600 CL9-9-9-24
Hard DriveOSPowerCase
Western Digital Black 1TB Win 7 x86 Corsair TX850W 850W Coolermaster Haf X
Mouse Pad
Paper duck-taped to my desk.
  hide details
Reply
post #3 of 6
The dip every few seconds is a bug, and it has been there since Tmonitor was introduced.

Also Tmonitor doesn't report the cpu frequency. It reports load x frequency with lower limit set at lowest multi. So if your load is zero it will report lowest multi x bclk. Tmonitor used to set low end at zero, but people had issues with cpu mhz being reported at zero. And if your load is 100%, then Tmonitor will report 1 x mhz or what cpuz reports. If your load is less than 100%, it will report corresponding fraction.
My System
(15 items)


CPUMotherboardGraphicsRAM
6900K 4.4ghz  MSI X99A Krait Titan XP Gskill 32GB 3200 C14
Hard DriveHard DriveCoolingOS
Samsung 960 Pro 1TB OS Samsung 850 pro 1TB games D5, XT45 280 rad, Nemesis 280 rad,  Windows 10 64bit
MonitorPowerCase
Acer Predator XB271HU 144hz Seasonic Prime Titanium 850 Fractal Design R5
  hide details
Reply
My System
(15 items)


CPUMotherboardGraphicsRAM
6900K 4.4ghz  MSI X99A Krait Titan XP Gskill 32GB 3200 C14
Hard DriveHard DriveCoolingOS
Samsung 960 Pro 1TB OS Samsung 850 pro 1TB games D5, XT45 280 rad, Nemesis 280 rad,  Windows 10 64bit
MonitorPowerCase
Acer Predator XB271HU 144hz Seasonic Prime Titanium 850 Fractal Design R5
  hide details
Reply
post #4 of 6
Thread Starter
Thanks opt33 - no wonder you're getting +rep every 4th post!

CPUMotherboardGraphicsRAM
i7-2600k Asus P8Z68 Deluxe MSI N250GTS TwinFrozr 1G OC 2x4GB Corsair XMS3 2133 (9-11-10-28)
CoolingMonitorPowerCase
Corsair H50 Dell U2412HM Corsair TX650W Corsair 650D
Other
D-Link Wireless N 300 PCI Adapter
  hide details
Reply

CPUMotherboardGraphicsRAM
i7-2600k Asus P8Z68 Deluxe MSI N250GTS TwinFrozr 1G OC 2x4GB Corsair XMS3 2133 (9-11-10-28)
CoolingMonitorPowerCase
Corsair H50 Dell U2412HM Corsair TX650W Corsair 650D
Other
D-Link Wireless N 300 PCI Adapter
  hide details
Reply
post #5 of 6
How did you get Tmonitor to work, anyway?
I ran it and it said "This CPU is not supported." The version on the CPUID page (tmonitor 1.03...)
SB Rig
(13 items)


CPUMotherboardGraphicsRAM
i7-2600k Gigabyte P67A-UD5 B3 R9 290X 16GB
Hard DriveOptical DriveOSMonitor
WD 2 TB, WD 1 TB, 250gb Liteon ihbs212 blu-ray burner/reader XP+W7 Benq XL2720Z
KeyboardPowerCaseMouse
Ducky Shine 69/Year of the Goat/Shine 5 Seasonic Platinum X1000 Corsair 760T Logitech G502 with r0ach approved ™ sensor
Mouse Pad
Puretrak Talent
  hide details
Reply
SB Rig
(13 items)


CPUMotherboardGraphicsRAM
i7-2600k Gigabyte P67A-UD5 B3 R9 290X 16GB
Hard DriveOptical DriveOSMonitor
WD 2 TB, WD 1 TB, 250gb Liteon ihbs212 blu-ray burner/reader XP+W7 Benq XL2720Z
KeyboardPowerCaseMouse
Ducky Shine 69/Year of the Goat/Shine 5 Seasonic Platinum X1000 Corsair 760T Logitech G502 with r0ach approved ™ sensor
Mouse Pad
Puretrak Talent
  hide details
Reply
post #6 of 6
Quote:
Originally Posted by Falkentyne View Post
How did you get Tmonitor to work, anyway?
I ran it and it said "This CPU is not supported." The version on the CPUID page (tmonitor 1.03...)
I got the same problem
