Budget Water Cooling Help, Heater Core Radiator / PVC Reservoir

post #1 of 7
Thread Starter
Hi, I am going to be building a new computer soon, and I wanted to use water cooling for it. However I am on a very tight budget.


Ive done a lot of research, and have seen people use a car heater core for the rad and pvc pipe for the res. I had planned on buying this:

http://www.oreillyauto.com/site/c/detail/MHT0/398219.oap?keyword=heater+core&pt=02709&ppt=C0331

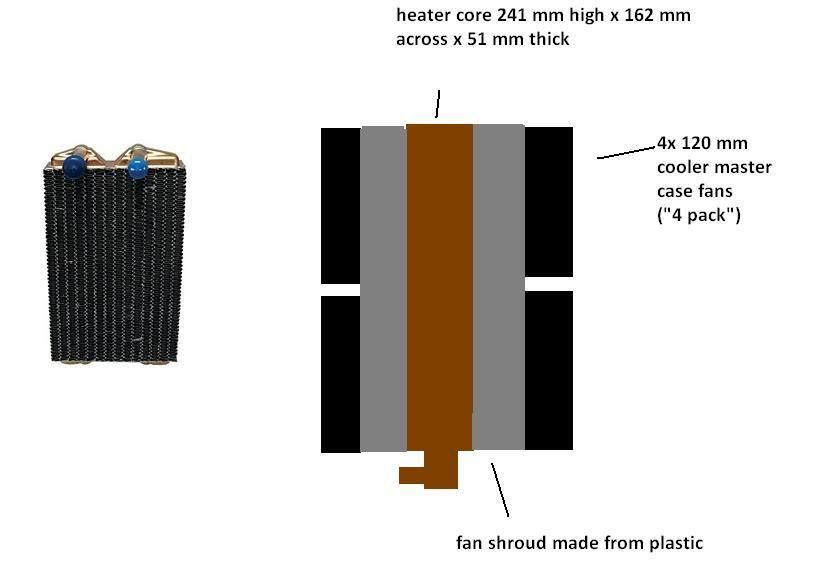

Which is ~ $20, and then doing something like this:

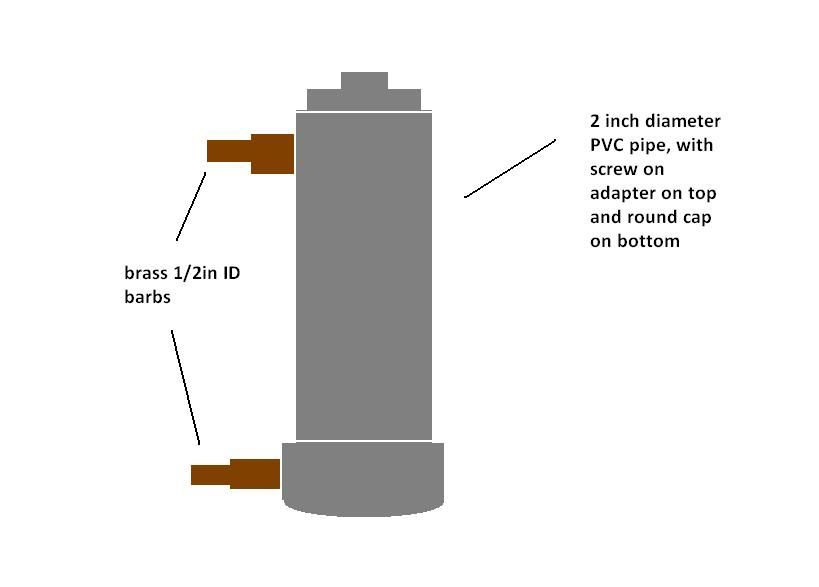

As for the res, I had planned on buying some PVC supplies from lows and doing something like this:



I plan on using a Swiftech MCP655 pump:
http://www.newegg.com/Product/Product.aspx?Item=N82E16835108082
An Enzotech waterblock:
http://www.newegg.com/Product/Product.aspx?Item=N82E16835708019
Cooler Master 120mm 4-pack case fans for the rad:
http://www.newegg.com/Product/Product.aspx?Item=35-103-052&SortField=0&SummaryType=0&Pagesize=10&PurchaseMark=&SelectedRating=-1&VideoOnlyMark=False&VendorMark=&IsFeedbackTab=true&Page=3
Tygon r-3400 Black 1/2 Inch ID 3/4 Inch OD tubing, ~10 feet.
Barbs/hose clamps/plywood/ from Lows.
Cooler Master Elite 430 Case:
http://www.newegg.com/Product/Product.aspx?Item=11-119-227&SortField=0&SummaryType=0&Pagesize=10&PurchaseMark=&SelectedRating=-1&VideoOnlyMark=False&VendorMark=&IsFeedbackTab=true&Page=2


I plan on having the pump/rad/res mounted to a painted piece of plywood that is mounted several inches above the case.

Path of water:
pump -> cpu -> rad-> res -> pump

Cost of setup:
pump - $80
tubing - $30
water block - $35
heater core - $20
fans - $15
pvc res - $10
barbs/clamps/misc. - $10

Total - $200

I had originally planned on buying a $180 Haf x case and a ~$50 air CPU cooler. But now that I am going water cooling I have swapped to the $50 Cooler Master Elite case, and I wont need to buy an air CPU cooler. The money I am saving here helps to offset the extra cost of water cooling.

My Questions:

Will this work? Have any of you done something similar? Does anyone see anything wrong with what I plan on doing?

Will the $20 heater core provide the same amount of cooling as one of the $100 computer rads?

For $200 are there any other, better water cooling setups that I can do? In addition, are there any cheaper alternatives as far as the parts I have chosen. (Are there any pumps that will last as long and have the potential for an added GPU block as the pump I have chosen?)
Edited by Joshst - 4/20/11 at 2:13pm
post #2 of 7
EK DCP 4.0 pump goes for about $80 AUD and is a 800lph pump. a lot cheaper than the MCP655 and just as good.

Also Tygon tubing is quite expensive compared to if you got clear nylon tubing from a hardware store. Tygon is about $12 for 3 Feet (roughly a metre) and i buy clear nylon tubing from a hardware store for $10 for 30 Feet (or roughly 10 metres)

thats just some good ways to cut back in the cost.
Finally Finished!
(14 items)


CPUMotherboardGraphicsRAM
Intel i7 3930K Batch: 3135B495T Gigabyte X79 UD7 GTX 570 3-way SLi Corsair Vengeance 1600mhz CL9
Hard DriveCoolingOSMonitor
60GB OCZ Vertex II / 3x 500GB Samsung Spinpoint EK Supreme HF Nickel, EK DCP4.0, Stealth GT 360... Windows 7 Ult 64bit Acer 22" G225HQ
KeyboardPowerCaseMouse
Razor Lacosa Mirror Edition Silverstone Strider 1500w  Aerocool X-Preditor  CM Storm Sentinel Advanced
Mouse Pad
Razer Goliathus Speed edition
  hide details
Reply
Finally Finished!
(14 items)


CPUMotherboardGraphicsRAM
Intel i7 3930K Batch: 3135B495T Gigabyte X79 UD7 GTX 570 3-way SLi Corsair Vengeance 1600mhz CL9
Hard DriveCoolingOSMonitor
60GB OCZ Vertex II / 3x 500GB Samsung Spinpoint EK Supreme HF Nickel, EK DCP4.0, Stealth GT 360... Windows 7 Ult 64bit Acer 22" G225HQ
KeyboardPowerCaseMouse
Razor Lacosa Mirror Edition Silverstone Strider 1500w  Aerocool X-Preditor  CM Storm Sentinel Advanced
Mouse Pad
Razer Goliathus Speed edition
  hide details
Reply
post #3 of 7
post #4 of 7
Quote:
Originally Posted by Bouf0010;13352156
Why dont you just get this... http://www.frozencpu.com/products/12222/ex-wat-162/XSPC_Rasa_750_RS360_Universal_CPU_Triple_Radiator_Water_Cooling_Kit-_HOT.html?tl=g30c83s137

it'll save you the hassle of modding and $50

The XSPC 750 Pump Dual Bay reservoir system is scarry! Half the time the pumps act up, not work or just fail. Those pumps can get really loud too.
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon 64 x2 5000 Black 2.6Ghz OC 3.3Ghz GigaByte GA-MA78GM-S2H Full Radeon 780G HD 3200 4GB Corsair DDR2 6400C4
Hard DriveOSPowerCase
Seagate Barracuda 750GB 7200 RPM 32MB Cache Windows 7 Pro x64 Corsair HX620W Meridian XClio High Tower I
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon 64 x2 5000 Black 2.6Ghz OC 3.3Ghz GigaByte GA-MA78GM-S2H Full Radeon 780G HD 3200 4GB Corsair DDR2 6400C4
Hard DriveOSPowerCase
Seagate Barracuda 750GB 7200 RPM 32MB Cache Windows 7 Pro x64 Corsair HX620W Meridian XClio High Tower I
  hide details
Reply
post #5 of 7
Hey, I like the ideal about the DIY RES. Mine is a 1-gallon glass pickle jar. Just pop two holes in the lid, add two grommets and shove the tubing in. One tube to the bottom and the other in about 3-inches.

If you do it right, you get a gallon of pickles for a summer party too!
http://www.samsclub.com/sams/shop/product.jsp?productId=160375
Edited by bmaverick - 5/2/11 at 4:46pm
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon 64 x2 5000 Black 2.6Ghz OC 3.3Ghz GigaByte GA-MA78GM-S2H Full Radeon 780G HD 3200 4GB Corsair DDR2 6400C4
Hard DriveOSPowerCase
Seagate Barracuda 750GB 7200 RPM 32MB Cache Windows 7 Pro x64 Corsair HX620W Meridian XClio High Tower I
  hide details
Reply
My System
(13 items)


CPUMotherboardGraphicsRAM
Athlon 64 x2 5000 Black 2.6Ghz OC 3.3Ghz GigaByte GA-MA78GM-S2H Full Radeon 780G HD 3200 4GB Corsair DDR2 6400C4
Hard DriveOSPowerCase
Seagate Barracuda 750GB 7200 RPM 32MB Cache Windows 7 Pro x64 Corsair HX620W Meridian XClio High Tower I
  hide details
Reply
post #6 of 7
Quote:
Originally Posted by bmaverick;13353772
The XSPC 750 Pump Dual Bay reservoir system is scarry! Half the time the pumps act up, not work or just fail. Those pumps can get really loud too.
Half the time is a bit too much ... Yes there are people that received a bad pump, but xspc send them all e new one. My pump is not noisy at all.
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
Sane
(17 items)


CPUMotherboardGraphicsRAM
Intel 3930K @ 4.9Ghz 1.46V ASUS Rampage IV Formula ASUS GTX780 1176Mhz 1.187V 16GB GeIL Enhance Corsa 1600Mhz CL9
Hard DriveCoolingCoolingCooling
Samsung 256GB 830 EK Supremacy Nickel-Plexi XSPC RS360 XSPC RX240
CoolingOSMonitorKeyboard
5x Scythe Gentle Typhoon AP-15 Windows 8 Pro x64 Asus VE228T Logitech G19s
PowerCaseMouse
Corsair HX850 NZXT Phantom 630 Razor Abyssus
  hide details
Reply
post #7 of 7
Good luck with your endeavor. When i first started watercooling i was very poor, i bought a second hand rs360 for $20, bought my tubing from a local hardware for $5 for 3 meters. For my pump i bought a $30 240v pond pump and modified it to take a direct input of 1/2" tube. I hand made my own waterblock from copper plates (copper was about $15) and made a reservoir from acrylic (had a spare sheet lying around). All up it cost me less than $100 and was a fair bit better than air cooling.

What you have there looks good, you could find/make a cheaper pump to get you a better waterblock, but its good if you buy quality parts to begin with because it means you have a solid base to upgrade from.

Good luck thumb.gif
