Noise in front panel audio when USB header is attached. HELP

post #1 of 10
Thread Starter
Hi all, I've recently bought a case from NZXT(praise them for great products, and cust. service) Its called a Gamma case, and when i have my USB header attached, and my headphones plugged in (with the audio header attached), i hear noise from general internal I/O of my machine. (I.E. i hear the oscillation of data transfer with the hard disk) And when i have USB devices plugged into the front panel it is even worse. i have no IDEA what to do to fix this. my specs are in my signature (gonna update them after i post this) Google has failed me. Any help at all will be greatly appreciated, thanks in advance.

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply
post #2 of 10
either get a sound card or plug in directly from the back of the case, dont use the front panel headphone out.
iSmile
(15 items)


CPUMotherboardGraphicsRAM
i5 750 @ 3.62GHz Asus P7P55D-E Pro EVGA GTX 560ti SC G.Skill(4GB) - Corsair(8GB) - 12GB
Hard DriveOSMonitorKeyboard
WDG 500GB, WDG 2TB, WDG 1TB, WDB 1TB. Windows 7 x64 Ultimate G2420HD(1920x1080) + HPLP1965(1024x1280 Portrait) CM Storm Quickfire Rapid
PowerCaseMouseMouse Pad
Cooler Master GX 750W NZXT Phantom Enthusiast Case (Black) Kensington Slimblade, Logitech G5 Steelseries 9HD
AudioOther
Asus Xonar DX, Line6 UX1 PPK Gunnar Optiks - Gloss/Onyx
  hide details
Reply
iSmile
(15 items)


CPUMotherboardGraphicsRAM
i5 750 @ 3.62GHz Asus P7P55D-E Pro EVGA GTX 560ti SC G.Skill(4GB) - Corsair(8GB) - 12GB
Hard DriveOSMonitorKeyboard
WDG 500GB, WDG 2TB, WDG 1TB, WDB 1TB. Windows 7 x64 Ultimate G2420HD(1920x1080) + HPLP1965(1024x1280 Portrait) CM Storm Quickfire Rapid
PowerCaseMouseMouse Pad
Cooler Master GX 750W NZXT Phantom Enthusiast Case (Black) Kensington Slimblade, Logitech G5 Steelseries 9HD
AudioOther
Asus Xonar DX, Line6 UX1 PPK Gunnar Optiks - Gloss/Onyx
  hide details
Reply
post #3 of 10
Thread Starter
I basically want this to have the convenience. I'm now thinking that my interference is 'cause because the usb ports are on the same circuitboard as my audio jacks. they are rather close together on a little PCB, so that may be the problem. when i unhook my USB header from the motherboard, The interference stops. (i wonder if i should get a standalone USB controller to connect with PCI-e) direct to back of case seems to work for now. but again, i would love to have the convenience. Thank you for your reply.

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply
post #4 of 10
IIRC, on some cases, the front audio jacks share a common ground with the USB headers, causing the interference. Some don't share the same ground, but due to poor grounding, the two circuits do not stay seperate. There is a case mod to fix this, I just can't for the life of me find that link in my massive database of bookmarks. If I do find it, I'll post it for you.
Big Baby
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E8400 Wolfdale 3.0 Ghz Asrock P45R2000 WiFi MSI 9800 GTX+ 512Mb OC'd 810/1944/1278 6GB Patriot Viper DDR3 1333 (2x1GB and 2x2GB)
Hard DriveOptical DriveOSMonitor
Kingston 64GB SSD, 1TB Hitachi and 3 160GB drives ASUS dual layer SATA II DVD burner Windows 7 Pro 64 Bit and a few virtual machines ;) Hanns.G Hi221D 22" LCD Widescreen
KeyboardPowerCaseMouse
standard junker nothin' fancy. Yet... HIPER 730 W Rosewill Conqueror Logitech Trackball (TrackMan is the model I think)
Mouse Pad
The Desk!
  hide details
Reply
Big Baby
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E8400 Wolfdale 3.0 Ghz Asrock P45R2000 WiFi MSI 9800 GTX+ 512Mb OC'd 810/1944/1278 6GB Patriot Viper DDR3 1333 (2x1GB and 2x2GB)
Hard DriveOptical DriveOSMonitor
Kingston 64GB SSD, 1TB Hitachi and 3 160GB drives ASUS dual layer SATA II DVD burner Windows 7 Pro 64 Bit and a few virtual machines ;) Hanns.G Hi221D 22" LCD Widescreen
KeyboardPowerCaseMouse
standard junker nothin' fancy. Yet... HIPER 730 W Rosewill Conqueror Logitech Trackball (TrackMan is the model I think)
Mouse Pad
The Desk!
  hide details
Reply
post #5 of 10
Thread Starter
hey, thanks. i'll look forward to that information.

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply

CPUMotherboardGraphicsRAM
AMD Phenom II X4 955 BE @ 4.08GHz MSI 760GM-E51 HIS Radeon HD 6770  HyperX Blu 2GB
RAMHard DriveOptical DriveCooling
HyperX Blu 4GB 7200 RPM WD Caviar Blue 500GB SATA 3Gbps 32mb cach DVD-RW super multi drive Rocketfish™ - Universal CPU Cooler
OSOSMonitorMonitor
Windows 7 Ultimate 64-Bit Linux Mint 12 64-bit 20" Acer S202HL HP vs17
KeyboardPowerCaseMouse
Old stock dell keyboard 500W HEC Raptor r-500 NZXT Classic Series GAMMA Logitech marble trackball
Audio
Logitech LS11 2 channel speakers
  hide details
Reply
post #6 of 10
Requires a bit of work, but it's doable.
http://www.head-fi.org/forum/thread/...ase-audio-jack

Here's another way to go at it
http://www.evga.com/forumsarchive/tm...&mpage=1&key=&

Hope you find the info here helpful. If you decide to go thru with this, would it be too much trouble to ask for some pics and a work log? While I've never had to do this myself, I always enjoy reading other people's experiences and problems/solutions.
Big Baby
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E8400 Wolfdale 3.0 Ghz Asrock P45R2000 WiFi MSI 9800 GTX+ 512Mb OC'd 810/1944/1278 6GB Patriot Viper DDR3 1333 (2x1GB and 2x2GB)
Hard DriveOptical DriveOSMonitor
Kingston 64GB SSD, 1TB Hitachi and 3 160GB drives ASUS dual layer SATA II DVD burner Windows 7 Pro 64 Bit and a few virtual machines ;) Hanns.G Hi221D 22" LCD Widescreen
KeyboardPowerCaseMouse
standard junker nothin' fancy. Yet... HIPER 730 W Rosewill Conqueror Logitech Trackball (TrackMan is the model I think)
Mouse Pad
The Desk!
  hide details
Reply
Big Baby
(13 items)


CPUMotherboardGraphicsRAM
Core 2 Duo E8400 Wolfdale 3.0 Ghz Asrock P45R2000 WiFi MSI 9800 GTX+ 512Mb OC'd 810/1944/1278 6GB Patriot Viper DDR3 1333 (2x1GB and 2x2GB)
Hard DriveOptical DriveOSMonitor
Kingston 64GB SSD, 1TB Hitachi and 3 160GB drives ASUS dual layer SATA II DVD burner Windows 7 Pro 64 Bit and a few virtual machines ;) Hanns.G Hi221D 22" LCD Widescreen
KeyboardPowerCaseMouse
standard junker nothin' fancy. Yet... HIPER 730 W Rosewill Conqueror Logitech Trackball (TrackMan is the model I think)
Mouse Pad
The Desk!
  hide details
Reply
post #7 of 10
it's normal.

you'd want to plug directly into the sound card. too much interference.
Booyeah
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 @ 4.0 1.25v Bloodrage XFX 6950 2GB 6GB OCZ Platinum DDR3 1600 7.7.7.24.1T
Hard DriveOSMonitorPower
Cricual M4 64 / WD6400AAKS 7 64 Ultimate BenQ XL2410T Corsair 620HX
CaseMouse
Lancool PC-K62 Logitech G5
  hide details
Reply
Booyeah
(13 items)


CPUMotherboardGraphicsRAM
i7 920 D0 @ 4.0 1.25v Bloodrage XFX 6950 2GB 6GB OCZ Platinum DDR3 1600 7.7.7.24.1T
Hard DriveOSMonitorPower
Cricual M4 64 / WD6400AAKS 7 64 Ultimate BenQ XL2410T Corsair 620HX
CaseMouse
Lancool PC-K62 Logitech G5
  hide details
Reply
post #8 of 10
Thread Starter

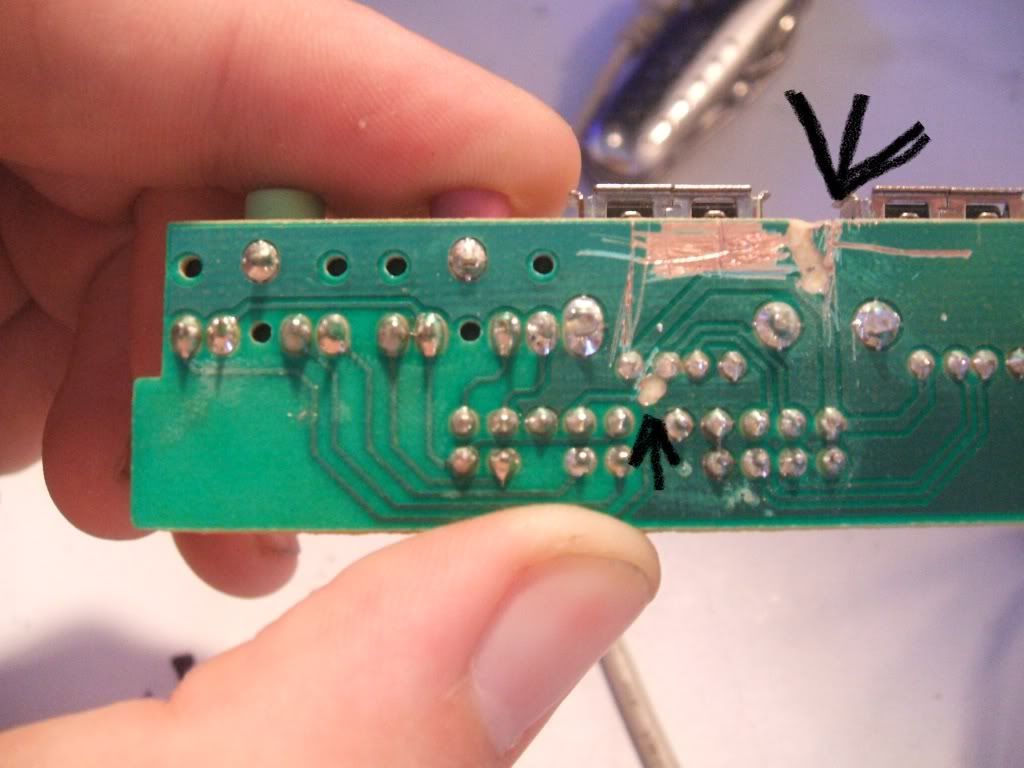

Well, i've opened up my front panel, and revealed the circuit PCB that has all the ports on it. there is obvious evidence of same ground crap with the USB and the Audio jack shielding.

The above picture is an overall view of the underside of the board. you should be able to make it out what is USB and what is audio.

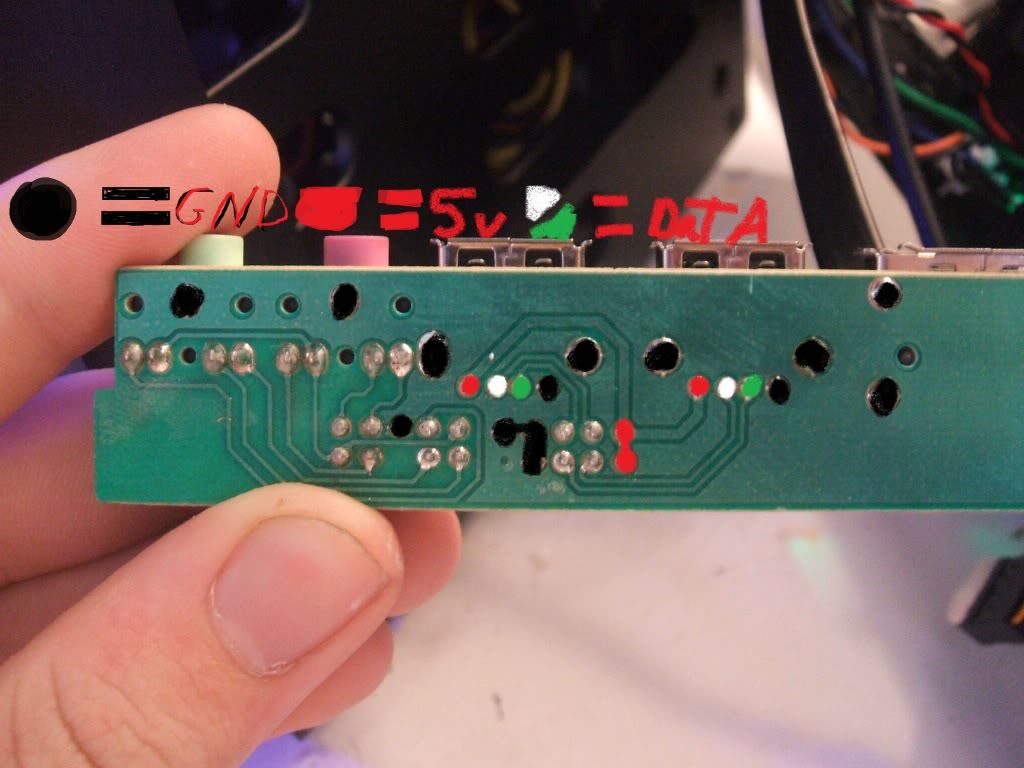

Here is labeled:
