ATI 5850 Dual Monitor Flicker Fixed!!!! - Page 4

post #31 of 37
Well, I'm at work, and looking at the BIOS files.

This is currently on my 1st GPU: (This one I had already flashed to fix the GSOD I was getting at the time. It fixed it too.)

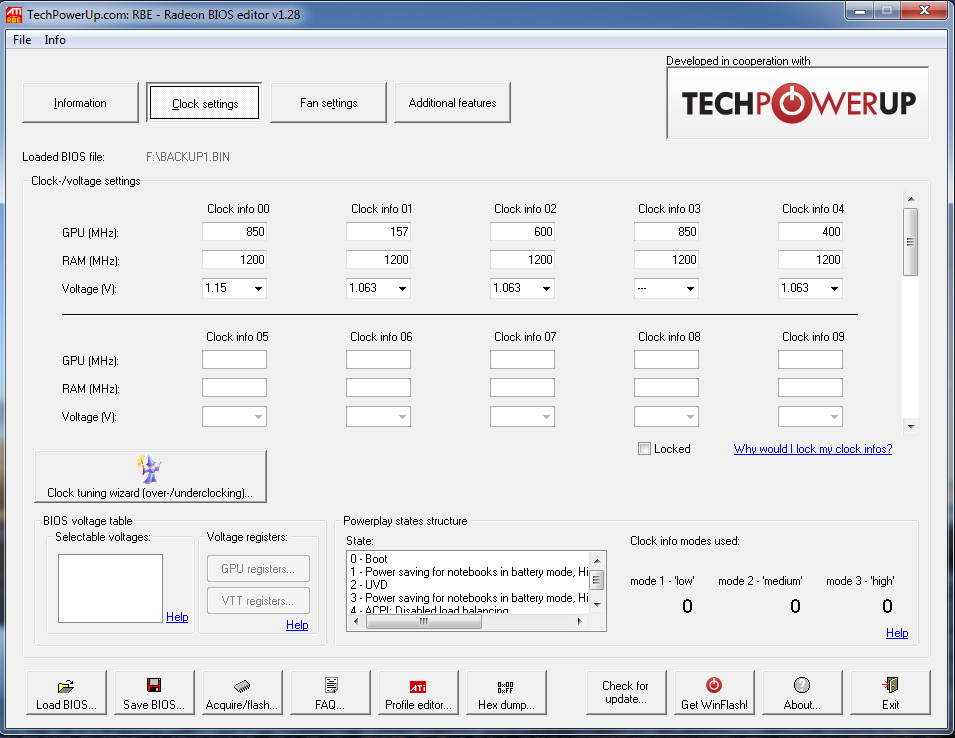

And then this is my second card that I've had for about a month, and haven't flashed a thing:

Funny thing is that the second card, which actually has an older BIOS has all the memory clocks at 1200. Perhaps that is where the issue lies with me. Maybe because these are non-reference cards, they need certain settings in the BIOS.

For comparison, here is the official F8 revision of the BIOS for these cards:

I'm thinking I'll probably flash that official one first, leaving the memory clocks as they are, and see if that fixes the issue. If not, then edit that official BIOS to put all the memory clocks at 1200.

Does anyone see anything else interesting in the different BIOS's? If you need me to take different screenshots I can, so let me know.
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
post #32 of 37
Thread Starter
What im wondering is on the offical f8 version the voltage for state 0 looks like this ---
Silent Red
(18 items)

HP Sleekbook
(7 items)


CPUMotherboardGraphicsRAM
Core i5 760 (Lynnfield) EVGA H55 Gigabyte 5850 OC 1GB G.Skill Ripjaws
RAMHard DriveHard DriveOptical Drive
G.Skill Sniper 1TB WD 7200 RPM, 250GB Seagate 7200 RPM Kingston HyperX 120GB SSD ASUS DVD RW SATA Drive
CoolingOSMonitorMonitor
Coolermaster V6 GT Windows 7 Ultimate 64 bit ASUS VH236H x 2 Samsung 40" LN40D630M
KeyboardPowerCaseMouse
Cooler Master Quickfire TK Thermaltake 750W Modular PSU Fractal Design Define XL Cooler Master Storm Sentinel Z3R0-G
Mouse PadOther
Gigabyte Ghost NZXT Sentry Fan Controller
CPUGraphicsRAMHard Drive
i5 3317U Intel HD 4000 6GB  250GB Mechanical
Hard DriveOSAudio
32GB Solid State Elementary OS x64 Premium BEATS Audio! HAHA NOT!
  hide details
Reply
Silent Red
(18 items)

HP Sleekbook
(7 items)


CPUMotherboardGraphicsRAM
Core i5 760 (Lynnfield) EVGA H55 Gigabyte 5850 OC 1GB G.Skill Ripjaws
RAMHard DriveHard DriveOptical Drive
G.Skill Sniper 1TB WD 7200 RPM, 250GB Seagate 7200 RPM Kingston HyperX 120GB SSD ASUS DVD RW SATA Drive
CoolingOSMonitorMonitor
Coolermaster V6 GT Windows 7 Ultimate 64 bit ASUS VH236H x 2 Samsung 40" LN40D630M
KeyboardPowerCaseMouse
Cooler Master Quickfire TK Thermaltake 750W Modular PSU Fractal Design Define XL Cooler Master Storm Sentinel Z3R0-G
Mouse PadOther
Gigabyte Ghost NZXT Sentry Fan Controller
CPUGraphicsRAMHard Drive
i5 3317U Intel HD 4000 6GB  250GB Mechanical
Hard DriveOSAudio
32GB Solid State Elementary OS x64 Premium BEATS Audio! HAHA NOT!
  hide details
Reply
post #33 of 37
Quote:
Originally Posted by nick19268;13273436
What im wondering is on the offical f8 version the voltage for state 0 looks like this ---

I know right? Things just seem a bit odd to it, so I figure as long as I have all of the different BIOS's that I want to try on the flash drive, if one doesn't work, one of the others may. Also, maybe someone else with knowledge in this area will post.
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
post #34 of 37
Interesting. Sorry the fix didn't work out for you. I think it may only work for reference cards then. It was the only thing that worked for my reference card.

I remember an old thread on a forum somewhere mentioning the ability to disable powerplay features via the registry, but I forget where the key is located.

EDIT: found it.....it's located under:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E968-E325-11CE-BFC1-08002BE10318}\0000

Set the value of "EnableUlps" to 0

I remember reading that this is a crossfire only fix though, and again only known to work on reference cards. I wonder how much different the non-reference BIOSes are from the reference that causes some fixes to work, while others not to.
Edited by PsikyoJebus - 4/26/11 at 3:57am
Ummm....
(16 items)


CPUMotherboardGraphicsRAM
FX 8320 Gigabyte 990FXA-UD3 Gigabyte GTX 660 Ti Windforce 8G Kingston HyperX DDR3 1600
Hard DriveHard DriveOptical DriveCooling
Intel 730 Series Samsung Spinpoint F1 Samsung DVD R/RW Corsair H60
OSMonitorKeyboardPower
Windows 7 Pro X64 BenQ BL2410 Filco Majestouch Tenkeyless (Browns) Seasonic M12D 850W
CaseMouseMouse PadAudio
Lian Li PC 7H WX Corsair M65 Corsair cloth pad Edifier S330D
  hide details
Reply
Ummm....
(16 items)


CPUMotherboardGraphicsRAM
FX 8320 Gigabyte 990FXA-UD3 Gigabyte GTX 660 Ti Windforce 8G Kingston HyperX DDR3 1600
Hard DriveHard DriveOptical DriveCooling
Intel 730 Series Samsung Spinpoint F1 Samsung DVD R/RW Corsair H60
OSMonitorKeyboardPower
Windows 7 Pro X64 BenQ BL2410 Filco Majestouch Tenkeyless (Browns) Seasonic M12D 850W
CaseMouseMouse PadAudio
Lian Li PC 7H WX Corsair M65 Corsair cloth pad Edifier S330D
  hide details
Reply
post #35 of 37
EDIT: I wound up just flashing the official one first, and lo and behold IT'S FIXED! I'm watching a movie on my HDTV and posting here in my monitor below. Not a flicker in either screen. biggrin.gif Seems GIGABYTE is on the job!
Quote:
Originally Posted by nick19268;13273436
What im wondering is on the offical f8 version the voltage for state 0 looks like this ---

It turns out after some reading, that if that shows up in RBE, it means the default voltage the card allows.
Quote:
Originally Posted by PsikyoJebus;13276294
Interesting. Sorry the fix didn't work out for you. I think it may only work for reference cards then. It was the only thing that worked for my reference card.

I remember an old thread on a forum somewhere mentioning the ability to disable powerplay features via the registry, but I forget where the key is located.

EDIT: found it.....it's located under:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4D36E968-E325-11CE-BFC1-08002BE10318}\0000

Set the value of "EnableUlps" to 0

I remember reading that this is a crossfire only fix though, and again only known to work on reference cards. I wonder how much different the non-reference BIOSes are from the reference that causes some fixes to work, while others not to.

Tried that, still have the issue. I have modified the official BIOS that GIGABYTE put out, but wanted to make sure that no one saw anything wrong with what I did.

I changed the memory clocks all to 1200, and the Clock info 01 from 157 to 400. I did this because according to the 'clock info modes used' it was the 'low' setting. Should I change Clock info 06 to 400 as well? Clock info 06 is the ONLY state for PowerPlay state 4, which is 'ACPI: Disabled load balancing'. Or am I probably OK as long as I modify the clocks in the three major states.

Then I also changed the fan settings by basically changing the 'Duty Cycle % minimum' to be 100 across all temps.

I have tried editing config files for MSI afterburner; tried making custom profile in CCC, tested all my settings in the displays, and I think my only option besides flashing is trying out different CCC drivers, which is what I'm going to be doing while I wait for the awesome replies of the wonderful, knowledgeable, and helpful members that dwell amongst these forums.
Edited by Demented - 4/26/11 at 9:04am
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
Hephaestus
(22 items)


CPUMotherboardGraphicsGraphics
Core i5 2500K [4.5Ghz][100x45][1.29v] MSi P67A-GD65 [1.9 BIOS] MSi GTX670 PE OC MSi GTX670 PE OC
RAMHard DriveHard DriveHard Drive
16GB Corsair Vengeance 1600Mhz [9-9-9-24] Crucial M4 256GB [CORE] WD Caviar Black 1TB [FILEZ] WD Caviar Black 2TB [GAMEZ]
Optical DriveCoolingOSMonitor
LG Blu-Ray Combo Corsair H50 [Push/Pull][UltraKaze 3Ks] Windows 7 Ultimate x64 Retail SP1 Yamakasi Catleap Q270 27" S-IPS
KeyboardPowerCaseMouse
Logitech G110 Antec TP-750 Blue Lian Li Lancool PC-K62 Razer Naga Epic
Mouse PadAudioAudioAudio
Razer Goliathus Fragger Speed  X-Fi Titanium Logitech z5300 5.1 Logitech G930
OtherOther
MS LifeCam Studio 1080p Belkin n52te
  hide details
Reply
post #36 of 37
Hey guys

Basically, I need to flash my Radeon 5850's BIOS in order to prevent flickering on my second monitor. I followed the guide above exactly but I have a few issues.

Here is a picture of my current Radeon 5850's BIOS settings:



The OP changed all of his GPU's memory clock values to 1000 (00, 01, 02, 03 and 04). With mine, I have 00, 01, 02, 03, 04, 05 and 06. Taking a gamble, I put 1000 for the memory clock on all of them, and this worked successfully. However, I am unsure if this is safe and if I am doing this correctly.

This leaves me with a problem and a question.

The ATI Radeon 5850 can be overclocked in the CCC override settings to have a memory clock of 1125. Foolishly, I changed the memory clocks of 00-06 on the bios to 1125. After I flashed the GPU and did a reboot, I could no longer get past post. I have now flashed back the default BIOS back to the GPU but I still have the problem with the flickering screen.

Basically, I want to flash my GPU with settings that prevent the flickering occurring on the 2nd monitor but also have the safe 1125mhz memory over clock.

What settings will I have to put in to achieve this?

I would be very appreciative for a response.

Thank you

J
post #37 of 37
bump
