runeazn

if i may ask do you have any wassercoolers for the p6t6 WS Revolution?
and if you have how much will it cost + shipping to NL(you need to at least to be able to ship to NL it is not that far!!)

__________________
i am 13 yeah, so i don't have the perfect grammar.
I edit my posts alot. So please reread my posts if I've edited them; It's for your benefit not mine.

Andreoid

this should be cooled by 2x PWM001 and an UCDclassic for the NB
but the sb i dont know... go in the shop an print the ucd "skizzen"

__________________

runeazn

the starred one i already have and the pointed ones i dont have.
pic ( yeah yeah i am not really artistic) :

__________________
i am 13 yeah, so i don't have the perfect grammar.
I edit my posts alot. So please reread my posts if I've edited them; It's for your benefit not mine.

Andreoid

Hi everybody!

at the beginning a picture from our old workshop in my basement:

Left side: a noise-protection-box with CNCs, on the right...our manual drill.
at the bottom: this is me...gluing the CNC coolant effluent

the workshop was really small.
It was 9m² and is now too small for our new CNC
But see below for more



here our new CNC milling machine ...
here in the thread you can follow the assembling
from the CAD to the implementation of the real machine

the old basement was much, much too small for our new CNC machine...so we watched out for a new room.
An acquaintance have had a little space for ous in his wooden hall.
The place was just twice as large as my cellar, but hopefully that will be enough space for our new workshop.


in the next few posts I will provide you with pictures of building the new workshop,.. so stay tuned


regards
[ΛF] Andreoid

__________________

runeazn

do you have those waterblocks that are pointed?

__________________
i am 13 yeah, so i don't have the perfect grammar.
I edit my posts alot. So please reread my posts if I've edited them; It's for your benefit not mine.

Andreoid

nb is ucd classic
sb is nbsb006(or ucd sb) and ucd nano for the second sb chip (i think so! ,..better printing these: http://anfi-tec.de/PWMskizze.pdf and http://anfi-tec.de/UCDskizze.pdf)

__________________

denis6902

Finally found your thread man, i remember i heard from u guys from Markus (wcuk)

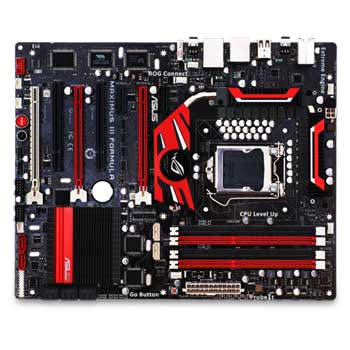

Is there any prototype for an Asus ROG Maximus III Formula yet (P55 Express)?
Full block or individual chipset blocks?

Another question, is it possible to make that enzotech inner part you posted earlier on the first pages in translucent red POM? Not the round enzo cpu block, the squarish one!

Have u shipped any blocks to Brazil yet? How much would it cost? cause its much cheaper to ship to UK, i could ask my gf to bring it to me.

Regards AF, and ACE WORK!

__________________
cleaned up.

Andreoid

next week ill do some asus 2 gene pwm blocks... maybe these will fit, too
the enzotech parts i cant do anymore...lost the codes for it -.-
this was too much work anyway


the room for the new workshop at the beginning looked like this:


Storage -.- good that vacuum cleaner exists ^^


The wall you can see here is the wall to the outside.
We have embedded a couple of thick fiberglass mats so it's not going to be so cold in winter.


it is finally a more lighted workshop ... This is much better than a cellar


over the fiberglass mats, was stapled a protective film


then we started with the casing:


here the first wall is finished:


That was't this easy with the 2 oblique beams


and here the second wall


Then we started with the ceiling, here is Finn tightening the plates of Rigips

it was the first time we did something
of course, have forgotten the smal beams under the Rigips-plates -.-
otherwise it would have been much more straight..... annoying







While this here looks like total disability, but I'll show it ....
forgot the tissue-bound and the mixture was not the right thing ...
afterwards a friend of mine came over and has corrected our faults ^^


-------------------------------------------------------------
-------------------------------------------------------------
-------------------------------------------------------------


so, that I not only bother you with dirty pictures of building the workshop
here something brilliant:

Finn and I had bought two 16GB USB Flash Drives supertallent
these were ideal to refine ^^


very slowly and carefully engraved with the CNC


like it?






regards [ΛF] Andreoid

__________________

LiquidForce

New workshop looks much better

What model mill is that?

__________________
For Sale: [US]PS2, PS1, KVM, Print Server

HARDER STYLEZ OF OCN CLUB

TIGER DIRECT

underdog1425

Oh wow I love those flash drives! And your blocks are always at the top of my "holy crap I want one of these but am a broke college student" list.

The new shop looks like it will be a ton-o-fun, it is good to see that you are doing well enough to need to expand like that.

the new CNC looks wicked, though I have no knowledge of said machinery hehe.
