After working on my "mod" for two years.. (It seems there is always a new project to try) I'm on to adding an active cooling loop to my water system. Since I don't want to impact the normal opperation of the machine, i decided to add a secondary cooling system. This will be similar to Nuke reactors cooling setup. the primary loop is uneffected blocks: radiator: res: pump except i'll add a heat exchanger in line after the rad. ie blocks: radiator: heta exchanger: res: pump.

now I can play with alternate cooling options in the secondary loop and always have the pimary one intact. I already know some of the limitations of this set-up. ie i can not let the primary loop get below ambiant room temp (or at least dew point) and the radiator will become useless at some point.

so I'm going to work on a temp controled TEC chiller for the secondary loop as well as a outdoor radiator (winter is coming).

Might even try a swamp cooler...

Any other ideas to play with??

and please if you have to ask why... I'm an engineer, why not!

some picts->

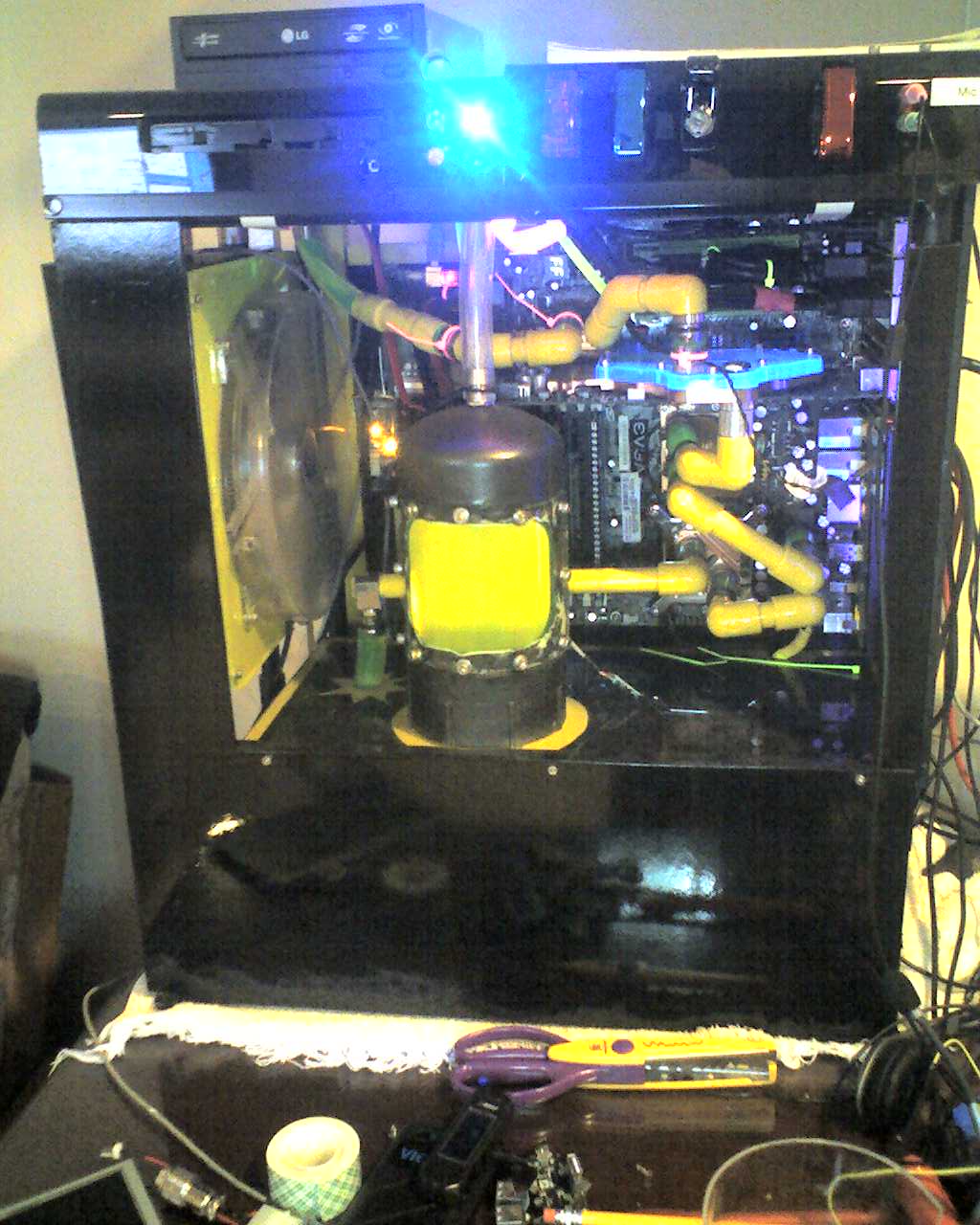

current build w/o new heat exchanger. pvc pipe was uses for the frame as well as most of the h2o piping and res.

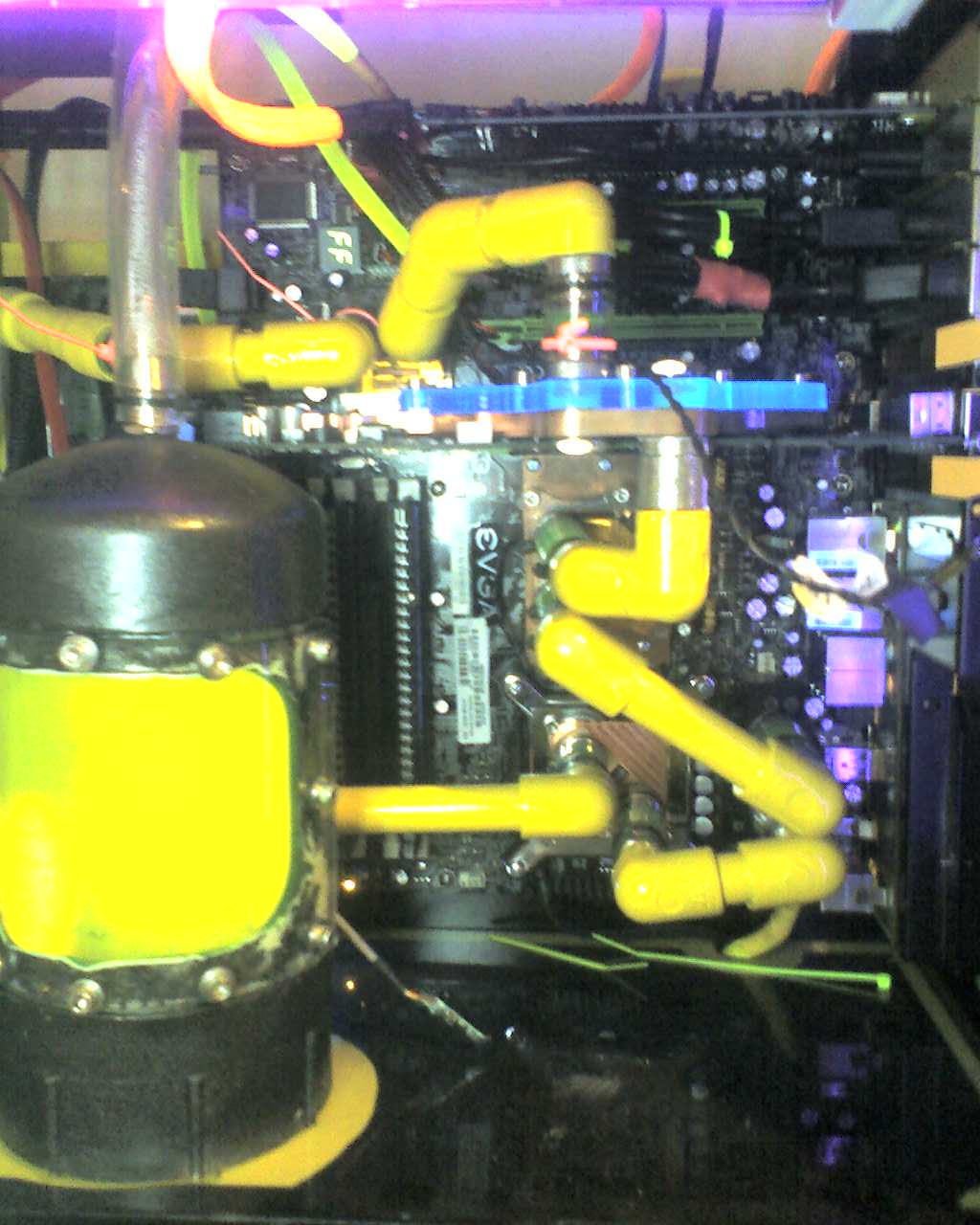

customn heat spreader/ adapter for the 780I NB

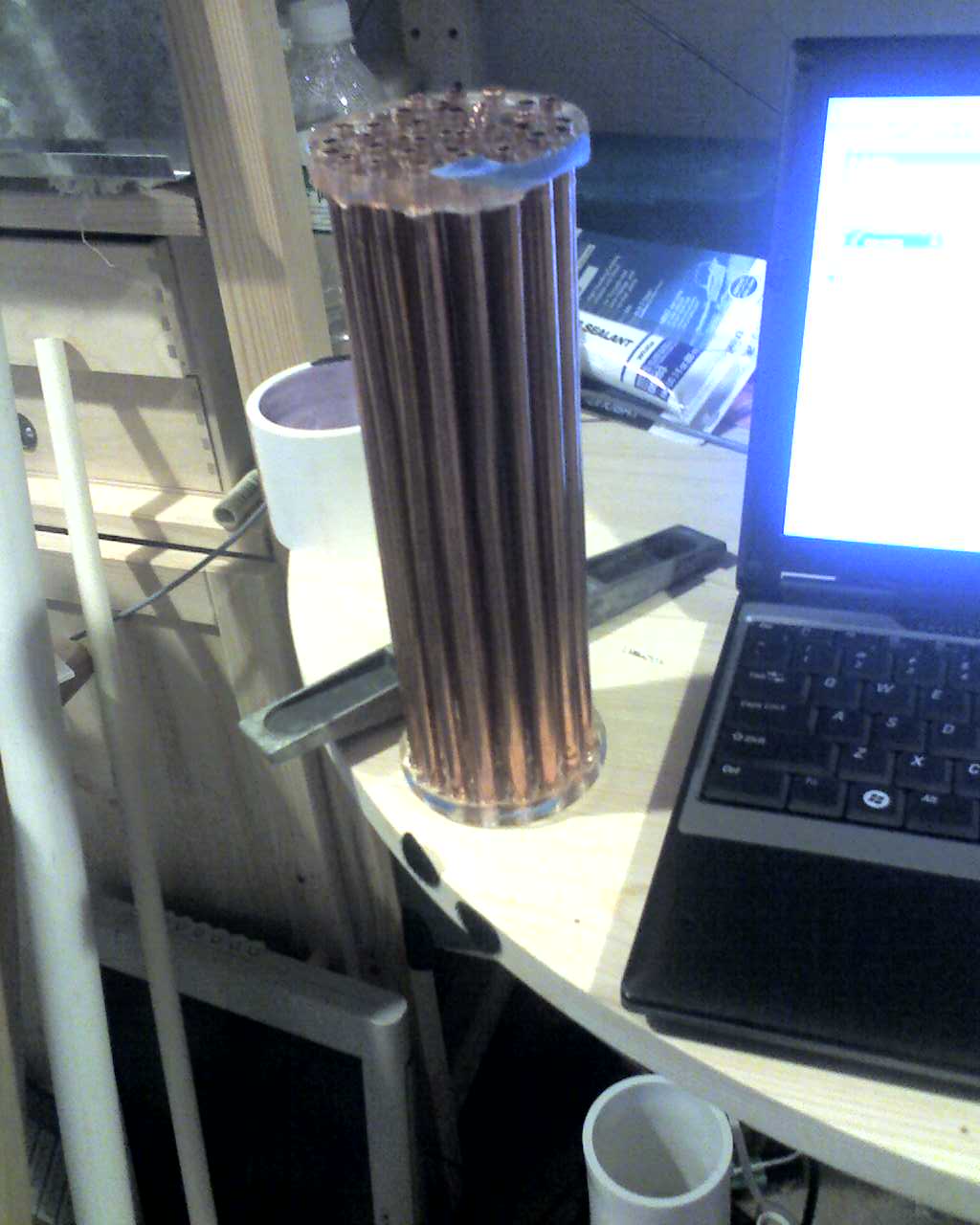

1/4" copper tubes set in plexy and epoxy for heat exchanger

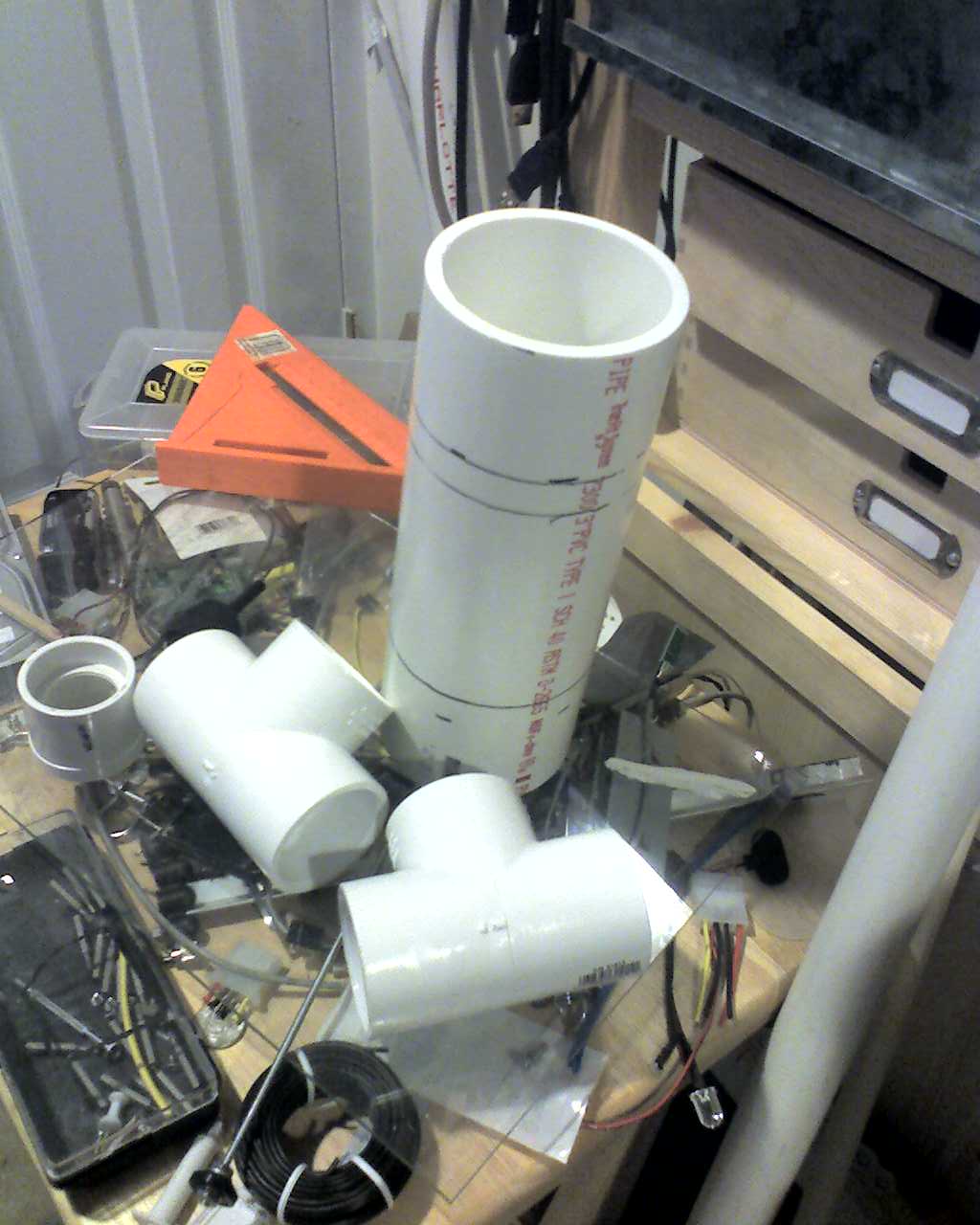

Shell of the heat exchanger awaiting cutting and windows. I would be a shame to have all those copper tubes and not show them off!!

__________________
Building a Water cooled system one block at a time!

billbartuska

The heat exchanger is a great project. Some suggestions:
Use a clear acrylic tube instead of PVC with a window.
Have a look at plate heat exchangers. They are much more efficient than shell and tube heat exchangers. I'd bet you could pick up a small one on ebay cheep , and mod it. It woudn't be too hard to make on either.
You're using standard schedule 40 PVC pipe components. Have a look at schedule 20 PVC. The OD of 3/4" fittings is about the same as the OD of 1/2" schedule 40 fittings, and it's easier to work with (cuts with a pipe cutter).
And finally. I approached adding edditional cooling a little differently. See attached.

Attached Thumbnails



__________________
EDGE ...if you're not on it, you're taking up too much space.

Duma

I would love to as well as the rest of the piping that I use. It becomes cost prohibitive @ $67 for 4'.

I will look into the sch 20, although Home Depot is my main source of parts

I love the check valve idea!! I will have to look into something like that in the future.

It is all about scaling to me. Having low power set up for normal use and a high capicity setup for folding and gamong.

__________________
Building a Water cooled system one block at a time!

Duma

the old thread on the first gen of the h20 system..

http://www.overclock.net/water-cooli...ground-up.html

__________________
Building a Water cooled system one block at a time!

billbartuska

the Depot, etc. only carry in is sizes up to 3/4". It's the beige colored stuff.

Us Plastics
1390 Neubrecht Rd.
Lima, Ohio 45801-3196
Phone: 1-800-809-4217

4" Gray PVC Schedule 40 Pipe $6.18/ft. + shipping

4" (4.50 O.D.) PVC Duct $5.55/ft + shipping

4" Clear Rigid Schedule 40 PVC Pipe $19.44/ft. + shipping.

4" PVC Drain Pipe $1.45/ft + shipping

__________________
EDGE ...if you're not on it, you're taking up too much space.

ira-k

I like the heat exchanger....I run a TEC loop with a big sealed bucket res, the res has its own cooling loop with a external pump and rad, really seems to help keep my temp's more stable..

__________________
**Water Cooling Essential Threads**Relay Wiring **480 GTX-Temp's w/wo Shrouds **TEC Essential Threads

** E8600 @ 5.75Ghz 10x **E7200 @ 4.5Ghz 9x **5000BE @ 3.5Ghz 10x**150 Opty @ 3.2Ghz 12x**

billbartuska

Yeah! Kind of just makes you want to build one, heh?

__________________
EDGE ...if you're not on it, you're taking up too much space.

ira-k

Yeah it looks like fun, I think all of us have wanted to make in-line heat exchangers at one time or another..

__________________
**Water Cooling Essential Threads**Relay Wiring **480 GTX-Temp's w/wo Shrouds **TEC Essential Threads

** E8600 @ 5.75Ghz 10x **E7200 @ 4.5Ghz 9x **5000BE @ 3.5Ghz 10x**150 Opty @ 3.2Ghz 12x**

Duma

well it's done... ended up not putting in any windows. i have clear tube for mark II if this works out. now what to put on the other loop until winter comes?
