[WC Log] Core i7 920 & HAF 932 - Overclock.net

Lyric · 07-01-09

I've currently ordered the following components for my wc loop:

CPU Block: HEATKILLER® CPU Rev3.0 (/w 1366 backplate)
Mosfets Block: Black Bitspower
NB/SB Block: Bitspower BLACK FREEZER EVGA Intel X58
Pump: MCP655 /w Speed Controller
Radiator: Black Ice Xtreme 3 (BIX3 HP)
Fans: 3x Panaflo Ultra Performance 120x38mm Fan Sleeved (FBA12G12U)
Fan Controller: 5.25" Sunbeam Rheobus (Black)
Reservoir: EK-Multi RES 250 Rev. 2
Tubing: 15ft of Masterkleer 7/16 ID
13x Bitspower Premium PLUS Black Diamond Series G1/4" High Flow 1/2" Fittings
Feser View Blue Dye (2x 50ml bottles)
PT Nuke (1x 10ml bottle)
4x 12" Logisys UV Cold Cathodes
Arctic Cooling MX-2 TIM

Most of it will arrive today (July 1st) and the rest will arrive tomorrow (July 2nd). so i will be posting pictures up likely later on today when ups shows up finally and tomorrow and then I will start putting it together shortly after.

Lyric · 07-01-09

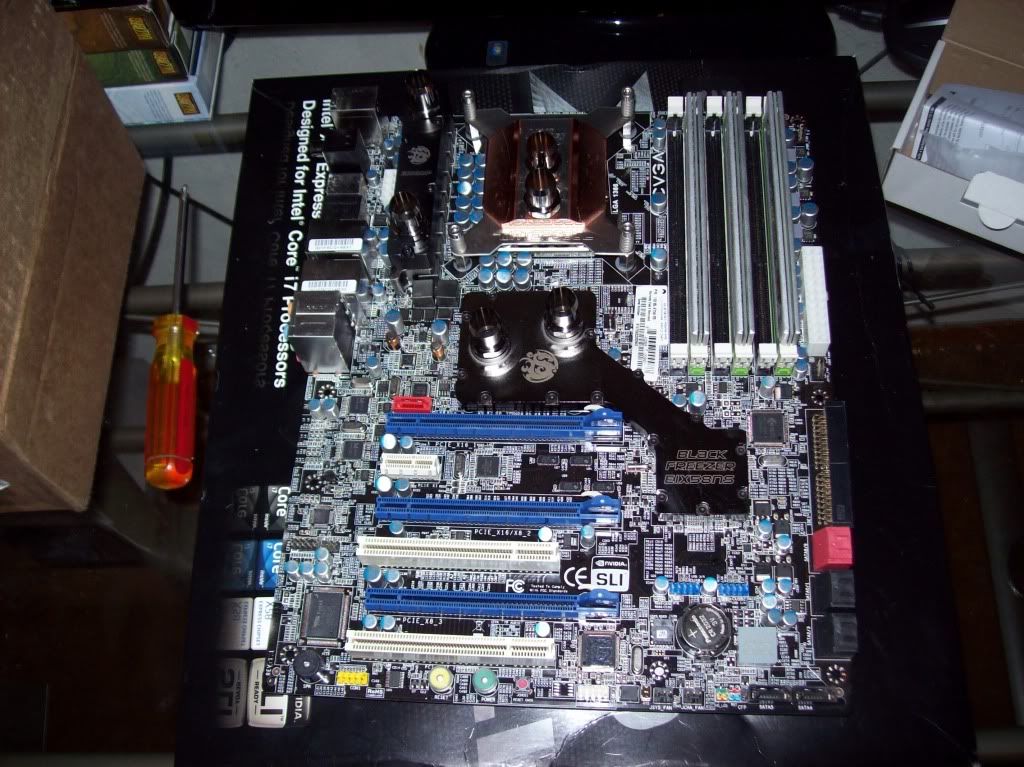

here is a picture of my system when I had the v8 in it (now it has the prolimatech megahalem):

reserving this post for more pics soon to come.

also I have a question, the radiator is going to be mounted internally, so should i have it sucking the air inside the case and pushing it out through the radiator, or should i have the fans on top of the rad and them sucking air from the top of the case and pushing it in through the rad?

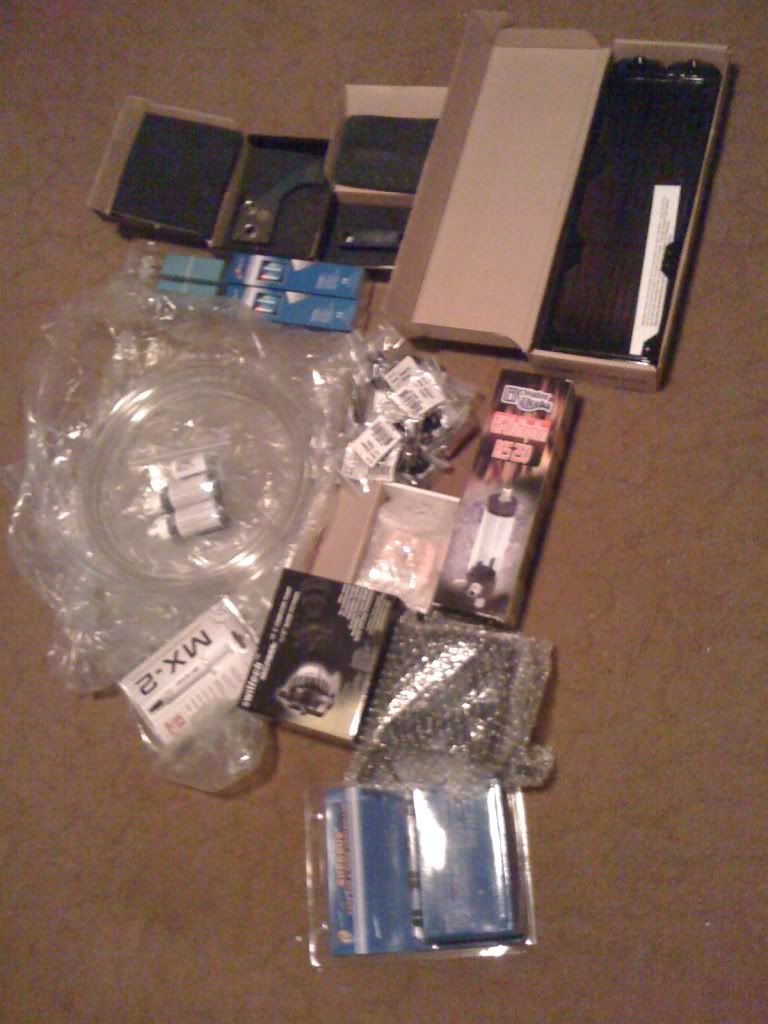

parts that came in:

xxbassplayerxx · 07-01-09

Quote:

Originally Posted by Lyric

also I have a question, the radiator is going to be mounted internally, so should i have it sucking the air inside the case and pushing it out through the radiator, or should i have the fans on top of the rad and them sucking air from the top of the case and pushing it in through the rad?

If you can, do push/pull (both). I know that fits in a HAF as today, I looked through all 125 pages of the club. I really want one

Otherwise, I'd just do fans on top of the rad, pulling air from outside through the rad and into the case. I think... this is a good question that I haven't thought much about.

rpgman1 · 07-01-09

Nice set-up. I was thinking about water cooling my rig. My case is the ATCS 840. Where did you buy your parts and how much did all of them cost?

Lyric · 07-01-09

Quote:

Originally Posted by rpgman1

Nice set-up. I was thinking about water cooling my rig. My case is the ATCS 840. Where did you buy your parts and how much did all of them cost?

the total setup was around ~$550.00 for everything or around there from petras / performance-pcs / sidewindercomputers.

new pictures are posted above as well of some parts that came in...the rest will come in tomorrow sometime.

Also, how am i suppose to mount the rad to the top of the haf932, the case did not come with any bolts to mount a radiator ? hmm. No bolts came with the rad either....

Monst3r · 07-02-09

Definately push/pull mate, heres a pic i uploaded of my old rad using shrouds...Its using the swiftech radbox also so obviously i mount it at the back of case for best temps

Lyric · 07-02-09

everything else arrived today...ill be starting to put it together soon.

new pics in the post up a few.

ltulod · 07-02-09

can't wait

Lyric · 07-04-09

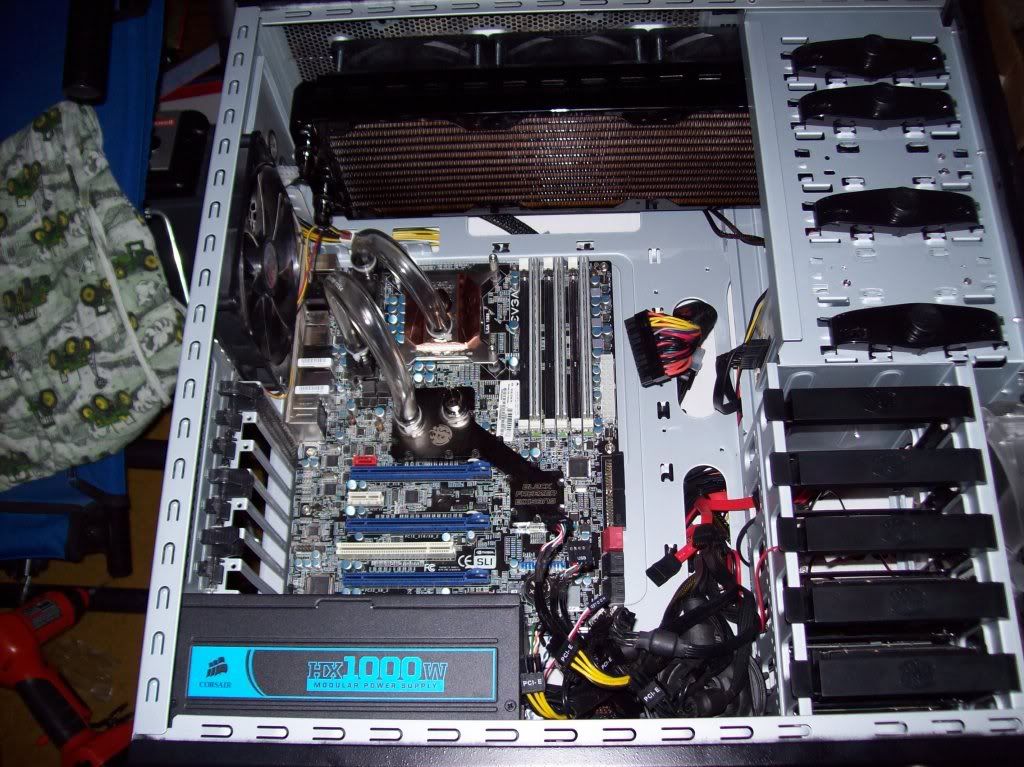

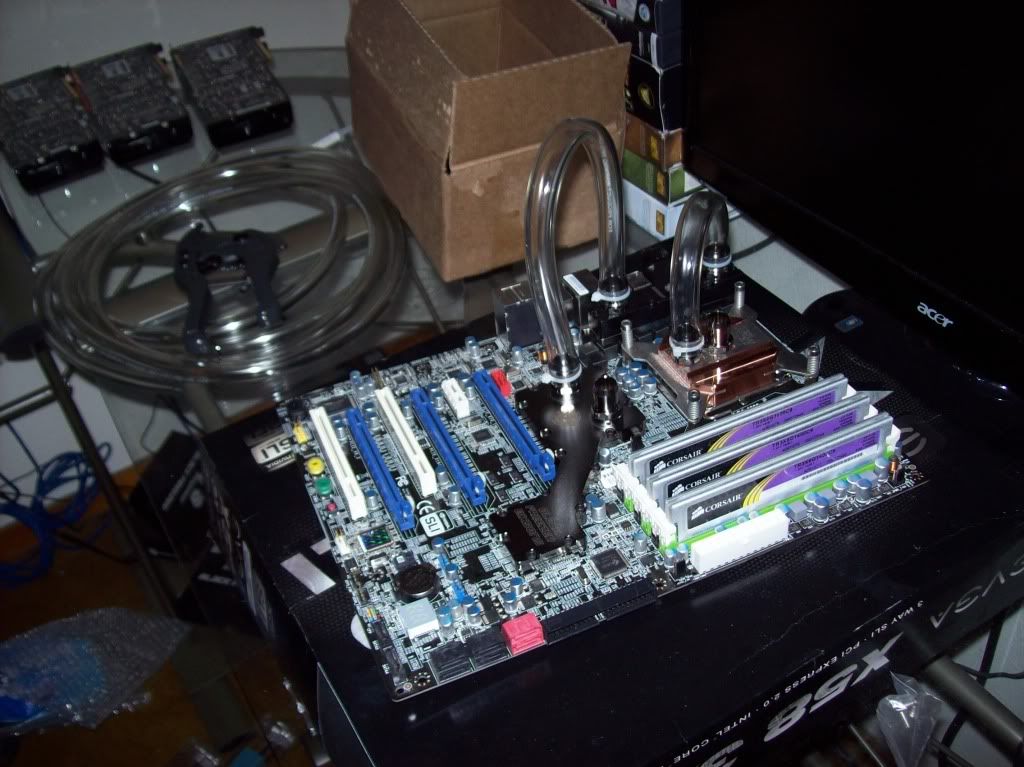

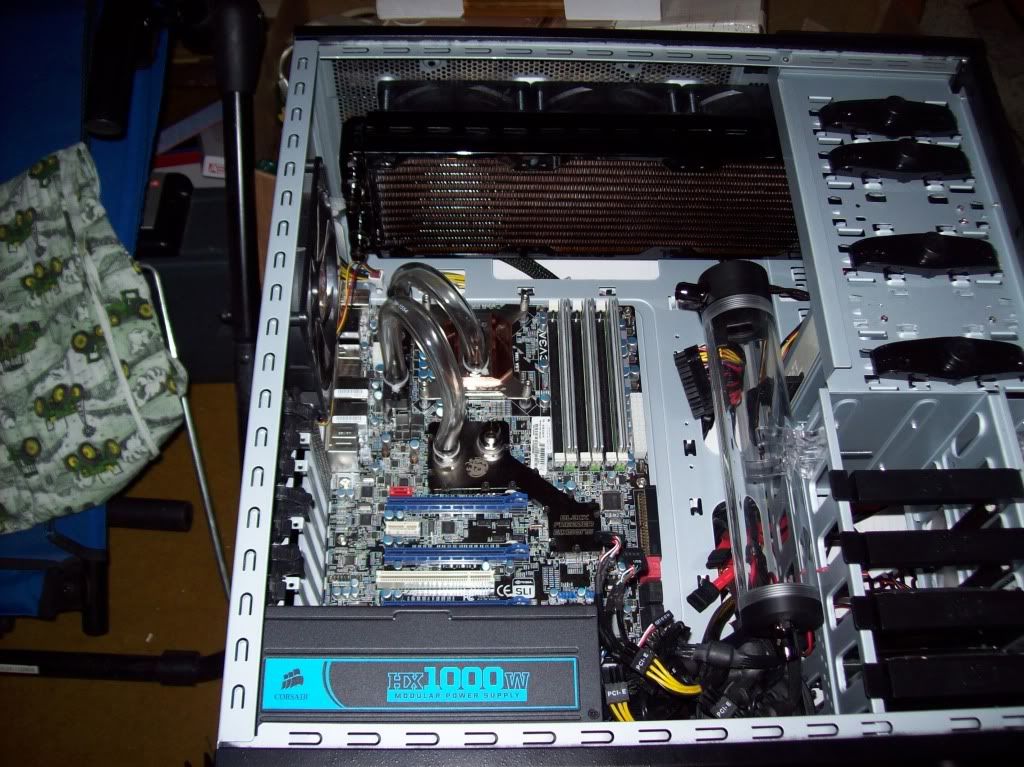

Today I mounted the nb/sb + mosfet & the hk3.0. Mounted the mobo and drilled holes for the res too. I'm too tired to post pics I'll put some up tomorrow.

Oh yeah I got the rad + fans mounted as well.

unleaded91 · 07-04-09

Cool!!

This will be a great setup!! Sub'd!!

Looking forward to some awesome pics!!
