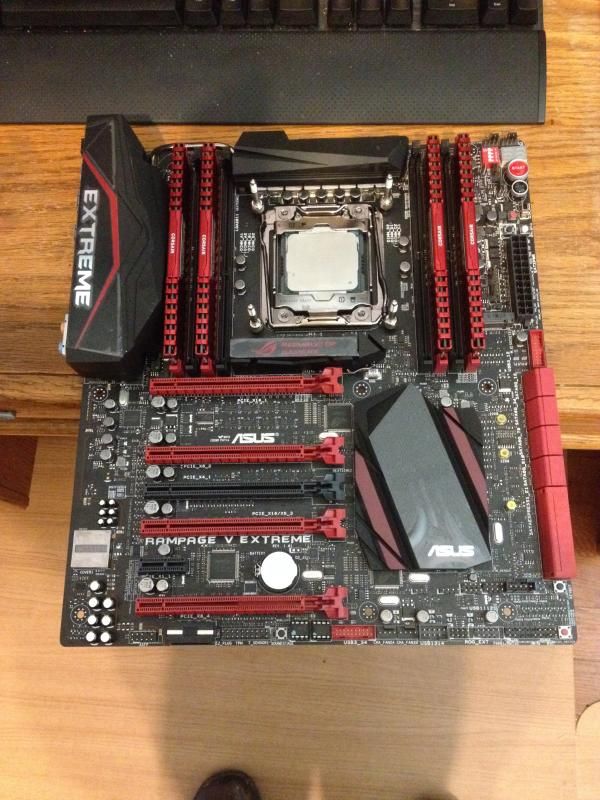

Presenting the newest member of the ROG motherboard family, the Rampage V Extreme X99
Pics taken from http://www.sweclockers.com/nyhet/19227-asus-rampage-v-extreme-x99-for-haswell-e-dyker-upp-hos-alina
http://s36.photobucket.com/user/mgo..._extreme_0003_Layer00001_zps832587b3.jpg.html
http://s36.photobucket.com/user/mgo..._x99_extreme_0001_Layer2_zps8534efdd.jpg.html
http://s36.photobucket.com/user/mgo..._x99_extreme_0002_Layer1_zps0e5e4d2c.jpg.html
http://s36.photobucket.com/user/mgo..._x99_extreme_0000_Layer3_zps75b9801b.jpg.html
Manufacturer product link: http://www.asus.com/us/News/menX420gXpwdYTYg
Manufacturer support link: http://www.service.asus.com/#!downloads/c1wax
BIOS
0601
0603
0702
0002
Quote:
Quote:
0008
Quote:
Quote:
Software tool section
MemTweakIt
OCPanel FW
ROG Connect
ROG Connect Plus
TurboV Core
X99 Chipset driver and MEI for XP
MEI for W7/8
New ROG features
We have the usual LN2 Mode Jumper and Slow mode switch as seen below.
What's new are the Safe Mode Button and the Retry button.
Both these buttons function very similarly, once pressed, the system would immediately shutdown and power on by itself.
The difference is that
- Safe Mode button would power up the system in Safe mode
- Retry button powers up according to the settings set in the BIOS.
Both do not clear the settings you have saved in your BIOS.
Traditonal way to enter safe mode is by pressing the power button for 4 seconds
When you finally want to give up trying to boot at a certain setting, the Safe mode does it for you without you having to waste time pressing the power button for 4 seconds.
The retry button lets you retry booting at tough to boot settings. An example is getting a hang at post code 'bf' when trying to boot with tough Memory settings.
A lucky boot will get you to boot successfully so pressing the retry button here can save you time in getting a post.
It can also save you time at a processor hard lock whereby the reset button gives no response.
![1_zpsba4f960c.png]()
Many times when pushing DRAM Frequency, you will get stuck at post code 'bd' or 'bf' or 'b7'.
When stuck at 'bd' or 'b7', pressing reset to keep retrying will often help you boot up.
When stuck at 'bf', pressing the 'Retry button' to keep retrying will often help you boot up
Something new is the ability to disable/enable specific cores:
![10_zps7100742a.png]()
![11_zpsd4c768f8.png]()
This is very useful as even a bad CPU may have a good core within.
There is no specific tendencies as to which one, I have seen good ones all over the place, so test each core individually.
BCLK Overclocking
First off, do not confuse Base CLK with your PEG/DMI Frequency, this PEG/DMI Target Frequency is shown on the top of the menu. Typically, you will only have ~5% margin upwards and downwards of 100MHz for the PEG/DMI Frequency, which translates into 95~105MHz BCLK on the 100Strap, 119~131 BCLK on the 125Strap, and 159~175 BCLK on the 167Strap.
PLL Termination Voltage
When pushing High BCLK, some CPUs require a 1.85v+ ~ 2.2+v level here to work. Especially when pushing both CPU Frequency & BCLK (160++) you want at least 1.75v or more here.
When just focused on maxing out BCLK, you can try low CPU Input voltage like 1.65v and match it with 1.85v PLL Termination voltage.
This will also affect CPU Frequency overclocking and even cold bug. Some CPUs cold bug later at 1.75+++v, some with really low voltage such as 0.500v here.
Memory Overclocking
The best overclocking DRAM Ratios are the 2400 ratio and below most of the time.
The Higher Ratios may not work as well. Cache Frequency must be at least half of DRAM Frequency, which means at least 12x ratio with 2400 Ram ratio, at least 13x ratio with 2600 Ram ratio and so on.
![15_zps61337fc6.png]()
DRAM Voltage's sweet spot depends on the IC and even the frequency at which you are running at. Most times, below 3100MHz, 1.65v to 1.85v may work for Hynix, even though 1.50v is more than enough unless you are using super-tight timings. Above 3100MHz, you want to be around 1.50v range for Hynix, unless the DRAM module is under LN2 at which even 1.85v may help.
For Samsung however, even above 3100MHz, 1.65v may work well and 1.85v may help you boot at 3600+ MHz.
VTTDDR is best at around half of DRAM Voltage.
VPPDDR is default at 2.50v and I have not found much help overvolting this rail.
![19_zpsda8a8bc5.png]()
Attempt Fast Boot is handy for skipping unnecessary retrains during warm resets. Suggest that you would enable this.
Attempt Fast Cold Boot is useful when you run into trouble training DRAM when the CPU gets colder. So you can boot up warmer and set Fast Cold Boot to Enabled. You only want to set this to enabled once you've successfully booted up
Memory Presets
As usual we have Memory Presets for the major IC vendors, Samsung, Hynix, Micron, so that you can have a start point for tweaking.
![16_zpsa3bfc155.png]()
You can be comfortably benching at 3400MHz with either Samsung Single-Side or Hynix Single-Side.
Samsung DDR4, like its predecessors, don't like much cold and perform worse after around -10C or so.
Hynix DDR4, like its predecessors, likes cold and performs better when cold. I have not found Hynix to cold bug yet.
For Benching 3D, I have a slight preference towards Hynix as it does a TCL clock less than Samsung at the same frequency.
Memory IC Analyzer
Step by step to determine what IC you have:
1) Set DRAM Frequency to 1600MHz and set DRAM Voltage to 1.20v
2) Set CAS# Latency to 9, Write to Read Delay L to 3 and DRAM Write Latency to 9 and Save and Exit.
3) If it boots up then you have MICRON IC DRAM, IF it fails to boot, then move onto step 4.
4) Set DRAM Frequency to 1600MHz and set DRAM Voltage to 1.20v.
5) Set REF Cycle Time to 140 and Save and Exit.
6) If it boots up then you have HYNIX IC DRAM, IF it fails to boot, then you have SAMSUNG IC DRAM.
Since you are relatively new to DDR4, load RAW MHz Profile first to see where you DRAM module tops out.
TIPS
- The Safe mode button saves you time and triggers a shutdown and bootup in Safe mode when you give up trying to boot at certain settings.
- CPUZ opens up pretty slowly, so use realtemp to check the actual cpu frequency
- When a heavy load such as PhysX/CPU test comes and the system shuts down and powers up by itself, this is due to the OCP on the PSU being triggered with a high transient load. You will need to change out a PSU or lower the load line so that CPU input voltage droops when the load comes.
- Sometimes a certain DRAM Frequency is just tough to boot due to clock and RTL combination, and going higher actually boots up fine, so try higher as well.
- When Pushing Single Stick of DRAM, the best slot to use would be Channel A red slot, the red slot most left.
- When just focused on maxing out BCLK, you can try low CPU Input voltage like 1.65v and match it with 1.85v PLL Termination voltage.
- Note that 13x~17x Core and Cache Ratios are buggy and can be unstable to don't use those ratios.
- You may find Game Tests and Physics Test liking different temperatures on the CPU, maybe -95~100C for GT, as cold as possible for PT. So while PT is loading, set Pause ON with OC Panel, pull CPU down to colder temps and unpause.
- The best overclocking DRAM Ratios are the 2400 ratio and below most of the time. The Higher Ratios may not work as well.
- For Win XP, Disable Speedstep in the BIOS to get the Turbo Ratios to work.
- A lot of times, booting up too cold (say -130C), the CPU trips out and you're stuck at 12x CPU Ratio in the OS. You will have to warm up and you will see the ratio come back to normal.
