Discussion Starter · #1 ·
Finished an age old build I've been wanting to work on for years, but never had the money. The concept of a sleek looking water cooled rig always had me striving for better. Well, I finally finished my version of one bad ass machine, time for the goodies.

.:Parts:.

CPU: i5 2500K @ 4.6 GHz
Motherboard: MSI P67A-GD55 (B3)
RAM: G.Skill Pi Series 2x2GB DDR3-1600 6-8-6-24-1T
GPU: MSI GTX 470 Twin Frozr II
PSU: Corsair HX750
Case: Cooler Master ATCS 840 w/ Window
Water Loop: XSPC Rasa 750 RS240 w/ Primochill LRT White 1/2" ID tubing
Fans: 6x Scythe Gentle Typhoon's AP-15's
HDDs: Crucial M4 64GB SSD + Western Digital WD6401AALS 640GB + 2x Samsung F4 HD204UI 2TB's

.:What I Did:.

1) Re-used parts from my main PC that I mostly bought in February.
2) Re-used my water cooling components I got in May.
3) Bought a used ATCS 840 (Thanks x.clay from TechPowerUp).
4) Bought 6x Scythe Gentle Typhoon AP-15's off members of OCN (Thanks joeyu3000 & Volkswagen).
5) Bought black MDPC-X sleeving and heatshrink off OCN (Thanks Lutro0).
6) Bought and sleeved a 24-pin and 8-pin extension.
7) Bought a 15" Blue Cold Cathode.
8) Sleeved all remaining cables (except for the cold cathode inverter cable, it came too late in the build for me to care).
9) Did the best job at cable management that I possibly could.
10) Bought Crucial M4 64GB
11) Enjoy!

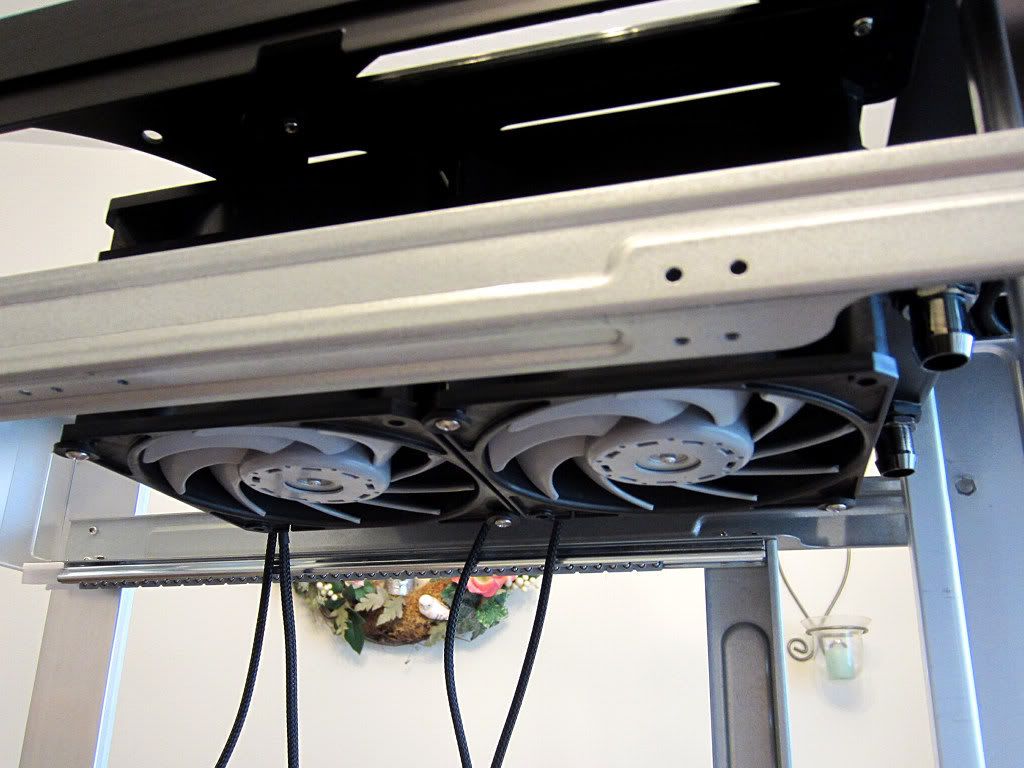

.:In Progress Pics:.





















.:Finished Pics:.

















·
Registered
Joined
·
3,248 Posts
wow dude, really nice build.
i want to convert over to WC one day, mainly for my 480...


·
Premium Member
Joined
·
2,320 Posts
Quote:
That picture, the way the loop looks, reminds me of the assassins creed logo. Lol, just a tad more elongated.


·
Registered
Joined
·
1,273 Posts
Discussion Starter · #6 ·
Quote:
Originally Posted by KaiserDragon;14085316
Ah the finished product... been a long road for it. But seems worth it.
Good job.
Tell me about it. Sure you were getting tired of seeing the progress pictures xD.


·
Registered
Joined
·
1,273 Posts
Discussion Starter · #17 ·
Quote:


Originally Posted by fr0st.
View Post

Looks great, one thing.

Put the window on the inside to make the exterior more... uniform? No protrusion.

Just an idea


Won't work. The side panel wouldn't be able to close if I had it on the inside, plus it will show the un-even cut marks on the aluminum side panel if I put it on the inside.
