c2d e7200 speed and e5200 question

2221 Views 32 Replies 19 Participants Last post by  PotatoChip
core2duo e7200 and dual core e5200

ok so both have equal mhz's except for e7200 has 3 mb l2 cache instead of 2mb of e5200.

so will they operate at equal speed's cuz there's a hell of a difference in price.

if not then is an e5200 overclocked upto 3.0 ghz equal to stock speed of e7200?

plz do explaing cuz i dont understand since both have equal speeds
1 - 20 of 33 Posts
One is 45nm and the other is 65 nm. The 45nm will allow higher overclocking and will be cooler.
e5200 is 45nm right?

so that means the cheaper one is cheap/good price/better overclockability

nice sweet package then
See less See more
Both are 45nm. Cache is a big factor for core micro architecture so yes, the E5200 needs to OC a bit to make up the difference in general.
yeah i just googled it both are 45 nm

so basically there's no difference at all??!?!? except the extra mb cache?
The extra L2 cache (while small) helps in games but if the price difference is a concern then just go for the E5200 and OC it.
In other words a slightly greater clock speed can compensate for the lesser L2 cache.
  • Rep+
Reactions: 1
i have already lolz chk my signature
one of my friends as e7200 so i was wondering if the overclock made it as fast as his

so i guess my e5200 even though cost half as his e7200 is faster
me happy
See less See more
nvm my sig had a mistake i changed it now
See less See more
There is another difference. The E7200 runs on a higher FSB (1066). This should allow for better performance too.

I have my E7200 overclocked to 3.25GHz very comfortable and to 3.5GHz within safe voltage limits. I really doubt the E5600 can beat the performance on this E7200.
ts e5200 not e5600

obviously e7200 is double the price of e5200

but still i was was comparing overclocked e5200 with stock e7200
See less See more
Its easy - why dont you both just run a few benchmarks


What are you getting in 1M pi @ 3GHz?

I will run it for you @ 3GHz and with the same ram speed


O and I beat my PB 1M pi score for my 7200 just lastnight!!

See less See more
3
  • Rep+
Reactions: 1
This might help as a comparison
See less See more
  • Rep+
Reactions: 1
Quote:


Originally Posted by Ando
View Post

Its easy - why dont you both just run a few benchmarks


What are you getting in 1M pi @ 3GHz?

I will run it for you @ 3GHz and with the same ram speed


O and I beat my PB 1M pi score for my 7200 just lastnight!!

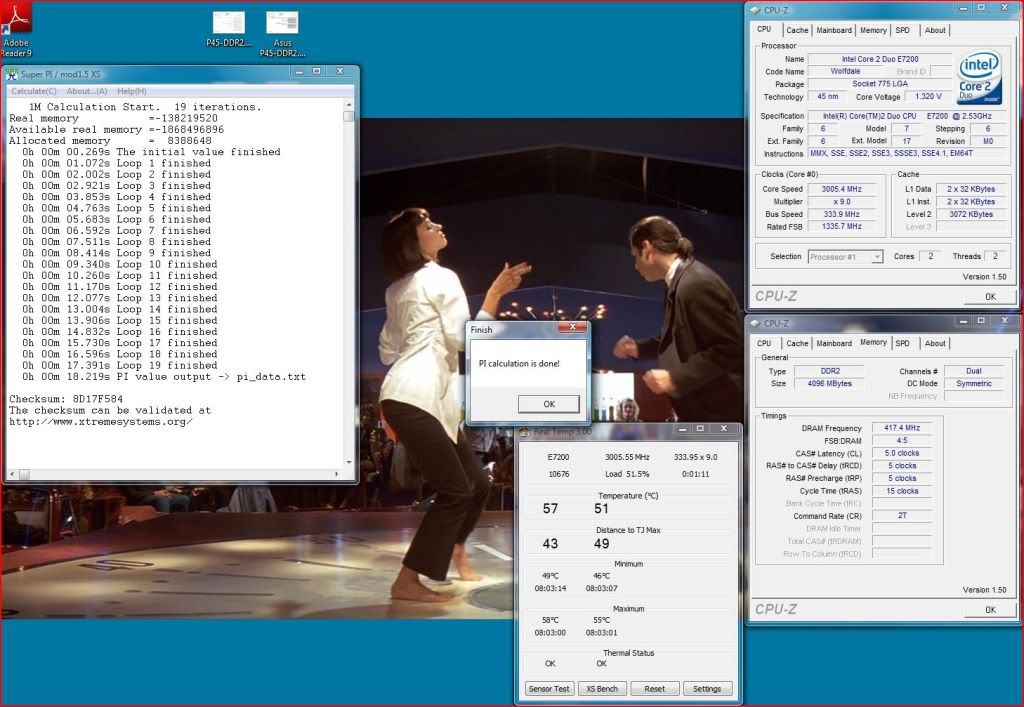

this is what i got. u got nice scores btw


See less See more
5
I didn't have a 3.00 GHz OC profile, so I reduced the settings from my 3.24GHz profile to get 3.00 GHz.
This is what I get for 1M superpi
See less See more
I'm running my E7200 at 3.8ghz, cpuz, 3dmark06 are in my sig, super pi run attached.
See less See more
i suppose they're built on different architectures
E5200-NetBurst architecture
E7200-Core2 architecture
See less See more
It really depends on which programs you're running, how CPU and cache dependent the programs are. For both chips, the effect of cache also diminishes slightly the higher they are clocked.
Quote:


Originally Posted by adizz
View Post

i suppose they're built on different architectures
E5200-NetBurst architecture
E7200-Core2 architecture

The E5200 is not netburst. They have not used netburst since P4/PD/Celeron/CeleronD. All current CPU's in the 775 package use the core architecture.
See less See more
The E5X00 and E7X00 are the same core, but the E5X00 runs at a slower FSB speed and has 1Mb less L2 cache which is disabled on the core. Basically it all comes down to Intel's binning.

The difference from 4Mb to 2Mb L2 cache at identical speeds with the first gen Core 2 Duo (E6600 vs E6400) was about a 3-4% performance increase in games. Clock for Clock, they are somewhat close, but the real benefit is the OC ability the E7X00 series has. The E5X00 are known to be FSB wall limited.
1 - 20 of 33 Posts
