I am just interested in some super fine lapping jobs done by members here at the OCN. I found this one via Google, at this address. Admittedly, I have yet to do my first lap! Soon!
![]()
![]()
Please note that:
"Shiny" does not necessarily mean "flat",
and "flat" doesn't necessarily mean "shiny",
but "flat" AND "shiny" make for a great lap job.
Flatness is indicated by showing an optical reflection (upon the lapped surface) of any object that is distant from the lapped surface, and seeing that the reflected image is in no way distorted (stretched, smushed, altered in shape or self-relative dimensions at all). Corners should never be worn down, as the point is to achieve as much surface contact between heat sink and CPU "die" as possible.
FYI, (icydk) Here on the OCN are a great many resources for lapping info.
Now post your epic lapping pics! Anyone done a super job, of which they are very proud?
![]()
Please note that:
"Shiny" does not necessarily mean "flat",
and "flat" doesn't necessarily mean "shiny",
but "flat" AND "shiny" make for a great lap job.
Flatness is indicated by showing an optical reflection (upon the lapped surface) of any object that is distant from the lapped surface, and seeing that the reflected image is in no way distorted (stretched, smushed, altered in shape or self-relative dimensions at all). Corners should never be worn down, as the point is to achieve as much surface contact between heat sink and CPU "die" as possible.
FYI, (icydk) Here on the OCN are a great many resources for lapping info.
Now post your epic lapping pics! Anyone done a super job, of which they are very proud?
1 - 20 of 73 Posts
16
cut and pasted out of my build log, hope you enjoy.
![]()
before
![]()
startin
![]()
this isnt much harder than i originaly anticipated however it is in no way fun
![]()
kept on trucking
![]()
...
![]()
finaly flat
![]()
it was so uneven before
![]()
600 grit
![]()
800
![]()
1000
![]()
1500
![]()
2000
![]()
and then i took out the dremel
![]()
used this polishing stuff
![]()
now its lookin good(can you tell what band is in my shirt?)
![]()
before
startin
this isnt much harder than i originaly anticipated however it is in no way fun
kept on trucking
...
finaly flat
it was so uneven before
600 grit
800
1000
1500
2000
and then i took out the dremel
used this polishing stuff
now its lookin good(can you tell what band is in my shirt?)

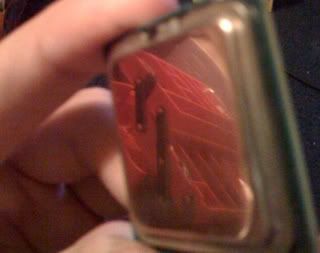

not the greatest quality but a really nice lap job i did on my old cpu
2
here's the old Q6600!
Quote:
best thing to do would to just try it really, they may have scraps from custom cuts that are going to get thrown away
Originally Posted by Sullivan I have heard member saying they just walked into Homedepot, asked for a scrap of glass, and got it free, is this true? |
Quote:
My uncle owns a small glass shop, and he has all kinds of junk in there that can't be used for anything, but would be great for lapping. Not sure if he'd just give you a piece, but if it's going in the dumpster if it's not being given away, I don't see why not lol. I got a 2'x2' piece from him and it works just fine, if not a bit smallish.
Not sure about home depot doing that however...
Originally Posted by Sullivan I have heard member saying they just walked into Homedepot, asked for a scrap of glass, and got it free, is this true? |
Not sure about home depot doing that however...
4
Quote:
Quote:
Quote:
It doesn't looked shopped at all. The DoF makes sense for the photograph; all he seems guilty of is using a high ISO where it wasn't needed.
![]()
Originally Posted by Armadi110 that OP pic looks photoshopped tbh |
Quote:
Originally Posted by slothfish Yeah that pic is obviously photoshopped... |
Quote:
Originally Posted by Sullivan It is, theres no way in hell a reflection acts like that. Anyone ever used 2500+ grit? |
2
Quote:
Sarcasm?
Originally Posted by Marin It doesn't looked shopped at all. The DoF makes sense for the photograph; all he seems guilty of is using a high ISO where it wasn't needed.
|
Quote:
No it's not sarcasm, I've seen the pic on XS before. To get that reflection he probably polished it.
Originally Posted by slothfish Sarcasm? |
Quote:
I'm pretty sure he's telling the truth..not sacasm lol.
Originally Posted by slothfish Sarcasm? |
2
Quote:
Quote:
Doesn't look photoshopped to me. That would be a heckuva good PS job, and I think I'd be able to tell. At first, I had my suspicions, but after close inspection, it seems he (or she) polished the surface quite well. Just read what he wrote in the pic.
Originally Posted by Armadi110 that OP pic looks photoshopped tbh |
Quote:
Originally Posted by slothfish Yeah that pic is obviously photoshopped... |
Quote:
It would be very easy to photoshop it. Very.
How big was that 2$ piece of glass wildfire?
Originally Posted by Slink Doesn't look photoshopped to me. That would be a heckuva good PS job. |
How big was that 2$ piece of glass wildfire?
2
Quote:
S'pose it could be a true reflection photoshopped into the pic.
![]()
Originally Posted by Sullivan It would be very easy to photoshop it. Very. |
- Linear perspective (focal point) looks perfect.
- Camera focus looks perfect.
- Copper hue of reflection looks authentic.
- Observe reflection at top of polished heat sink surface: you can see the book's knurled corner as a true reflection.
- The edge of the book in reflection looks very real.
S'pose it could be a true reflection photoshopped into the pic.
