[lowfat]

Final pictures.









Pulled the case out of the closet. This is now going to be the housing for my ESXi server. Rebuild starts here.
http://www.overclock.net/t/1206604/the-forever-alone-build-thread/80_20#post_21234065

Spoiler: Finished pics of original build

Started a new gaming rig here recently. This thread will document its process.

Forgot to take a pic of the case before I started pulling it apart. But it is a Silverstone FT02BW.

Spoiler: Old revision build pics

Case interior after I removed the fans/shrouds.


Drive cage has been stripped. Mounted motherboard + PSU.


The Rasa that I'll be reusing. I used some Koolance 38mm radiator fan mounts to secure the block since I haven't been able to buy the actual mounting.


Must say that the IO shield for this board looks fantastic. But look at all the steel rivets. Those definitely are going to need replacing.


HD7970 all nekkid & sexy. Block is back ordered. Hope to buy two more here soon.


Fusion-IO ioXtreme. 80GB. My gaming and application drive.


Crucial M4. 64GB. OS drive + less important applications.


Titanium HD which will be my headphones card.


And then the trusty Auzentech Prelude for analog 5.1.


Did some testing for a few days. Can we say ghetto?


Yup, that looks secure.


Desk at the moment. I have two U2711's that will be used for some serious eyefinity. Just waiting for the mounts to arrive.


And a few of the rigs I've done earlier this year.



[magic8ball88]

How much did you pay for that fusion-io drive?



[OutlawNeedsHelp]

Forever alone but awesome.



[lowfat]

Quote:

Originally Posted by magic8ball88

How much did you pay for that fusion-io drive?

$900USD + duty/shipping about 2 years ago.



[deafboy]

Looks like it will be a great build... but why the Fusion-IO?!



[CPTMULLER]

tagging for later



[silverh20]

nice, im looking forward to seeing the final build. what did you build the other systems for? for friends/self/profit? and why didnt you use the fusion-io drive when you first got it?? lol i cant imagine spending that cash and not using the thing asap is all



[TomashT]

Pics/cliffs on how the drive cage came out?



[lowfat]

Quote:

Originally Posted by silverh20

nice, im looking forward to seeing the final build. what did you build the other systems for? for friends/self/profit? and why didnt you use the fusion-io drive when you first got it?? lol i cant imagine spending that cash and not using the thing asap is all

I build the other systems for myself. I either sold or rebuilt them when I got bored of them. I've had the ioXtreme for 2 years and have been using it for that long. I just keep transferring it over to my next build.
Quote:

Originally Posted by deafboy

Looks like it will be a great build... but why the Fusion-IO?!

Because it is fast. 2 years old and nothing can come anywhere near close in terms of low queue depth read/writes.
Quote:

Originally Posted by TomashT

Pics/cliffs on how the drive cage came out?

You have to remove the steel unibody chassis. Which is just a bunch of easily accessible screws. Then just drill the rivets out. 2 of them are difficult to reach though. I would suggest a rather small drill. I use a monstrous wired hammer drill w/ 1/2" chuck. Wasn't all that easy.

No idea how I am going to reinstall the cage though. I am going to wait until the radiator arrives to see what I have for clearance before I decide anything. I don't need any of them. But it will look too barren without it there.



[deafboy]

Kind of OT, but what are the specs on it?



[TwentyCent]

Where can one buy a ioDrive? Looks kinda hard to find...



[lowfat]

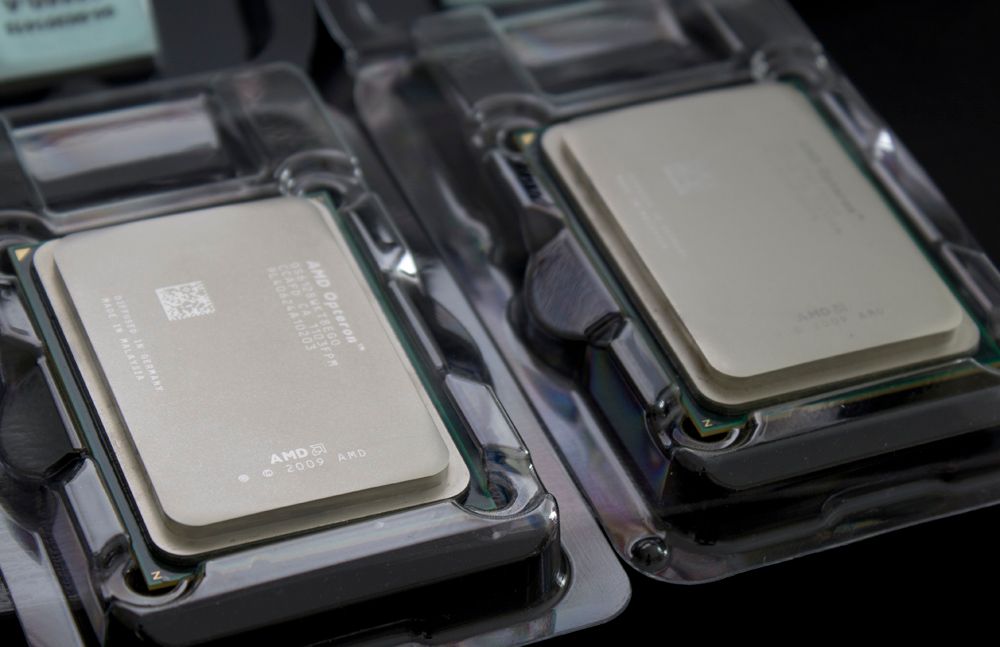

A pic of the CPUs for my next rig.

Quote:

Originally Posted by deafboy

Kind of OT, but what are the specs on it?

3.2GHz locked Xeon ES quad core w/ hyperthreading. This will be replaced sometime in the future. Maybe I'll wait till IB-E.
Gigabyte X79-UD3.
16GB G.Skill Sniper 1600MHz
80GB Fusion-IO ioXtreme
64GB Crucial M4. May buy another one of these for some RAID0. Not sure if I need the space yet though.
HIS HD7970. Hope to add another two down the road. Have ordered an EK acetal + EN block and single slot adapter. Hasn't shipped yet though.
Creative X-Fi Titanium HD & Auzentech Prelude
Silvestone ST1000-G PSU.
I think that everything.
Quote:

Originally Posted by TwentyCent

Where can one buy a ioDrive? Looks kinda hard to find...

eBay is a good place to look now. You can find some snazzy deals there. I was going to buy another one a few months back but decided I'd rather buy a new videocard or two.



[TomashT]

Quote:

Originally Posted by lowfat

You have to remove the steel unibody chassis. Which is just a bunch of easily accessible screws. Then just drill the rivets out. 2 of them are difficult to reach though. I would suggest a rather small drill. I use a monstrous wired hammer drill w/ 1/2" chuck. Wasn't all that easy.
No idea how I am going to reinstall the cage though. I am going to wait until the radiator arrives to see what I have for clearance before I decide anything. I don't need any of them. But it will look too barren without it there.

I think the other guy just used nuts and bolts and the rivet holes to reattach the drive cage.



[TwentyCent]

Thanks for answering. Never thought it'd be so expensive haha



[lowfat]

Spend way too much time on 24 pin. There is a wire or two I will likely fix before all said and done. Also gave the case the MDPC-X treatment. Replaced all rivets and screws with black ones. Will get pics of that later on.



[lowfat]

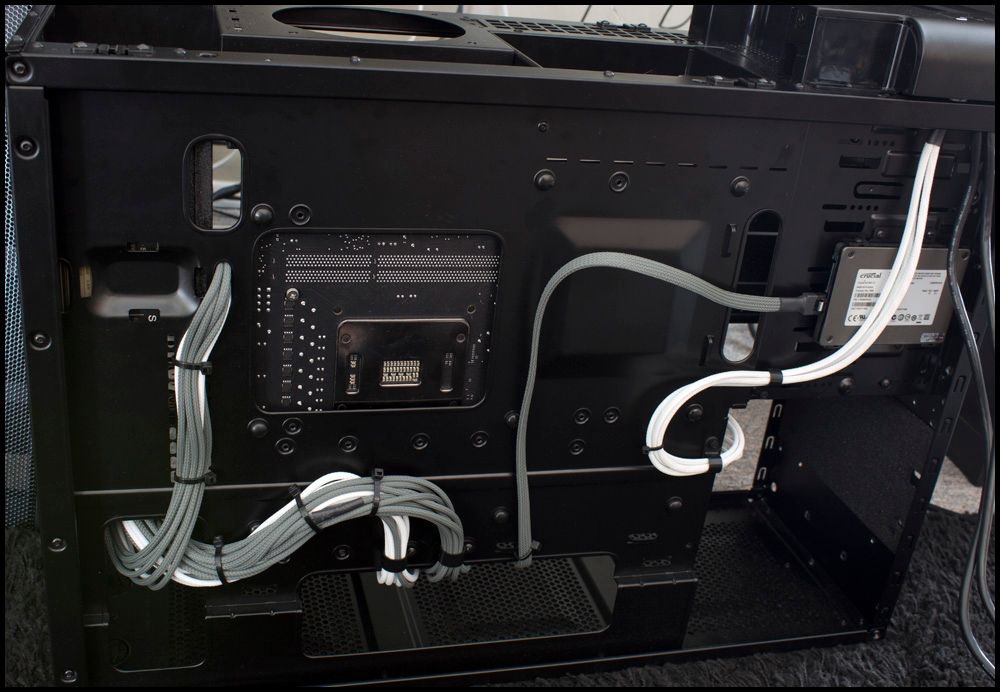

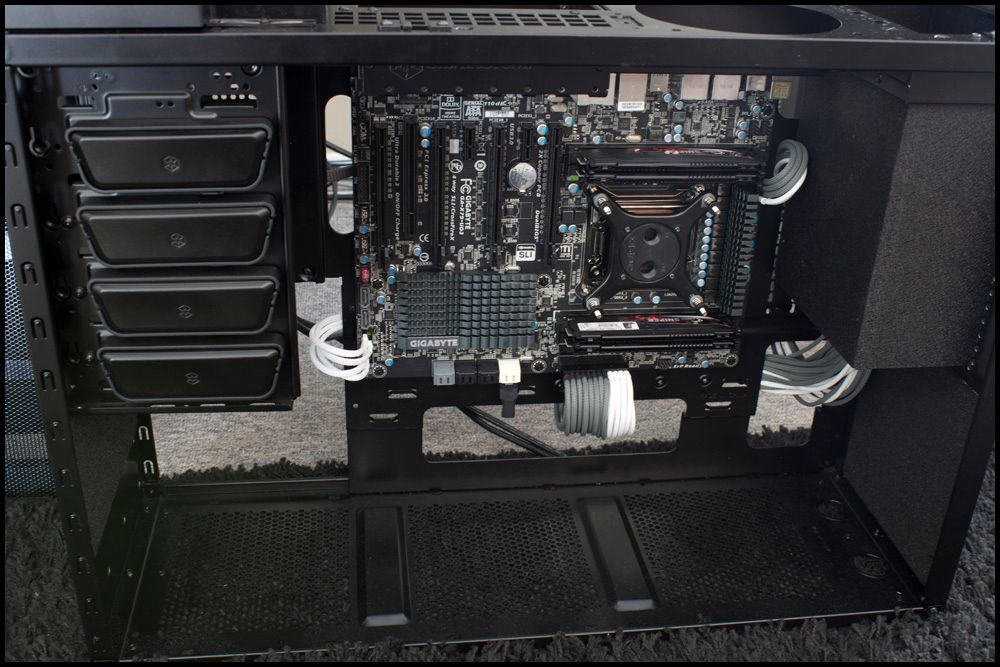

Some pics of the sleeving so far plus a few pics showing the murdered rivets/screws.



[TwentyCent]

Sexay!



[LiquidHaus]

subbed this looks awesome



[lowfat]

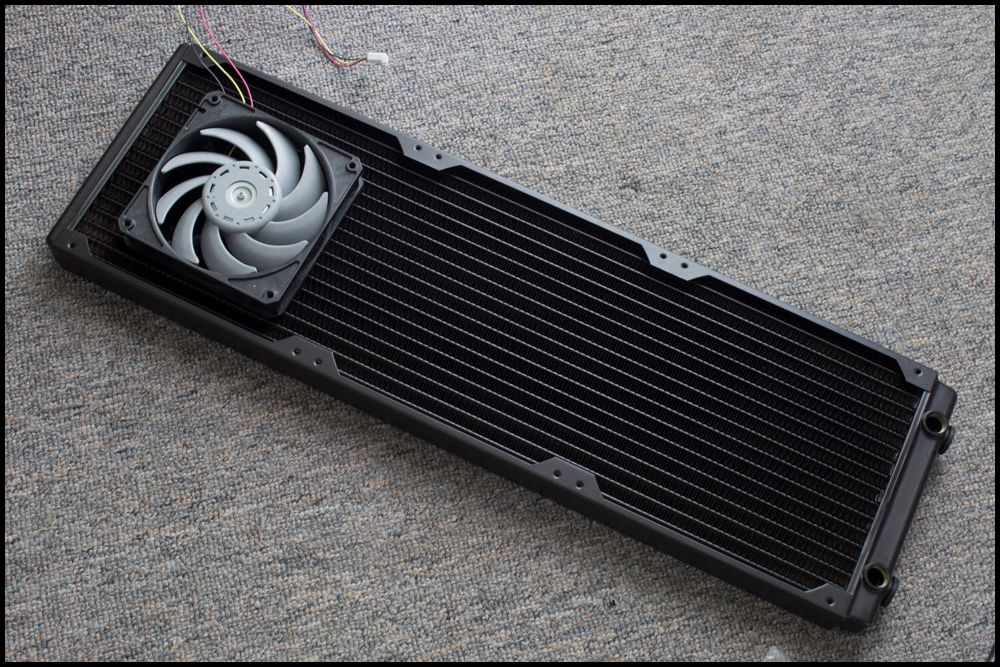

These came in the mail today.

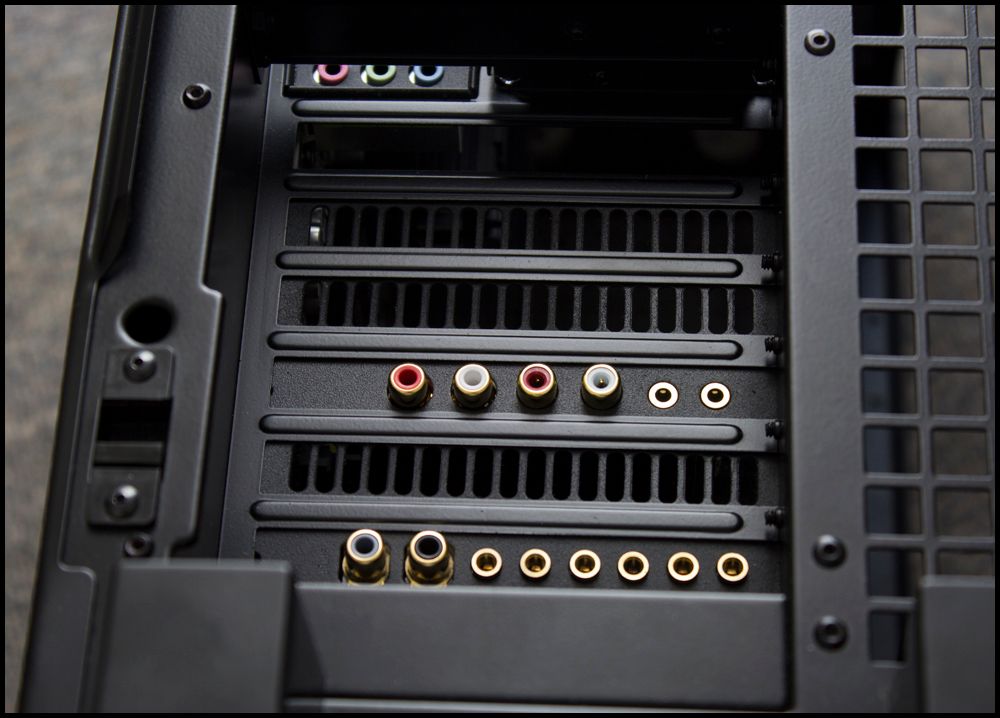

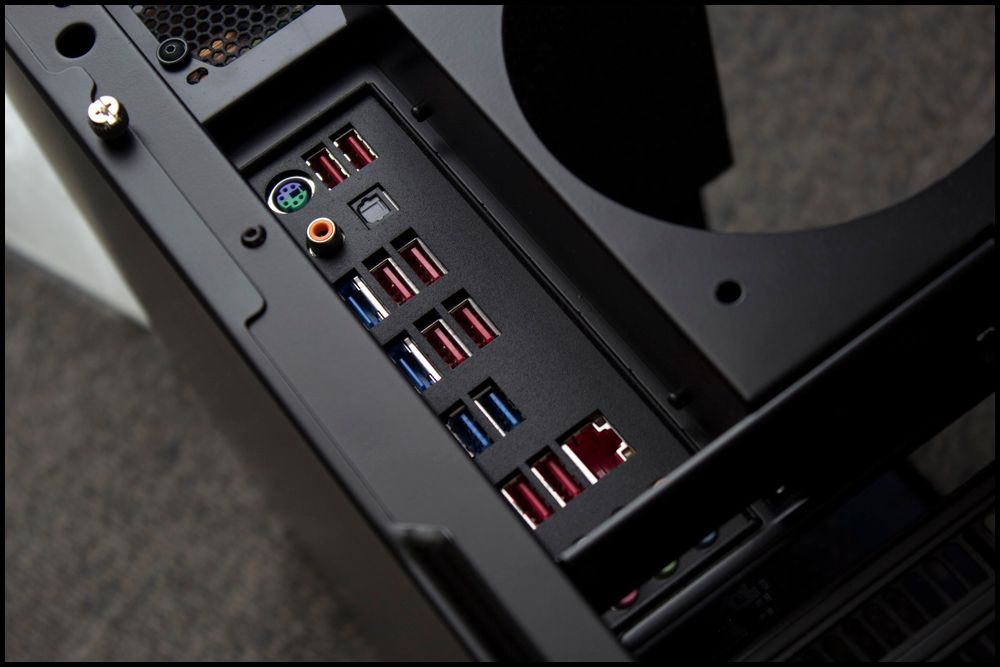

Pulled out the trusty can of Plasti-Dip to do my IO shield + PCIe slot covers.

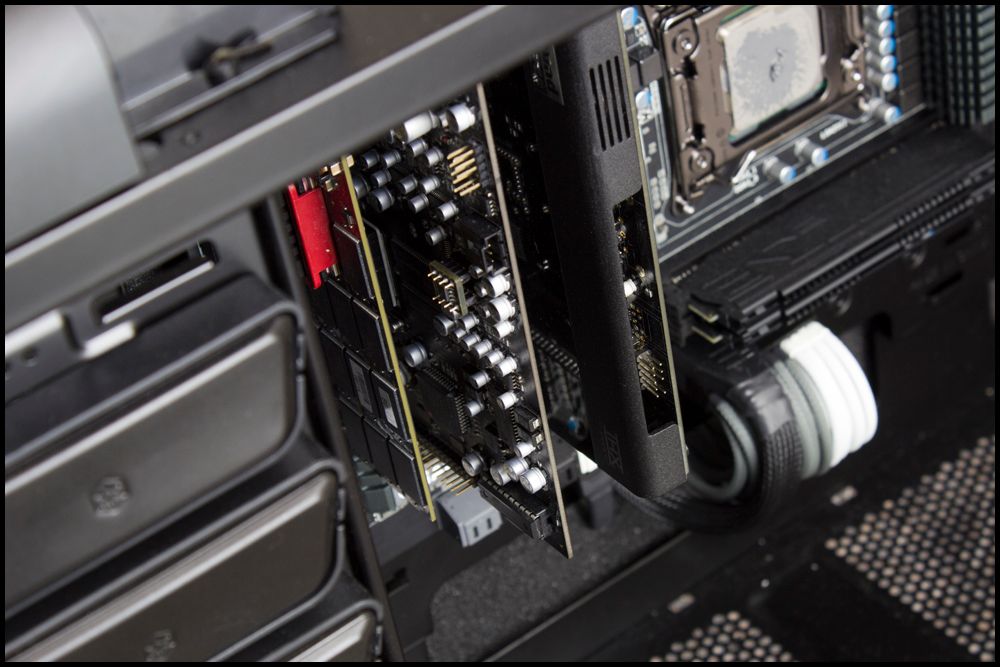

ioXtreme, Prelude, Titanium HD.

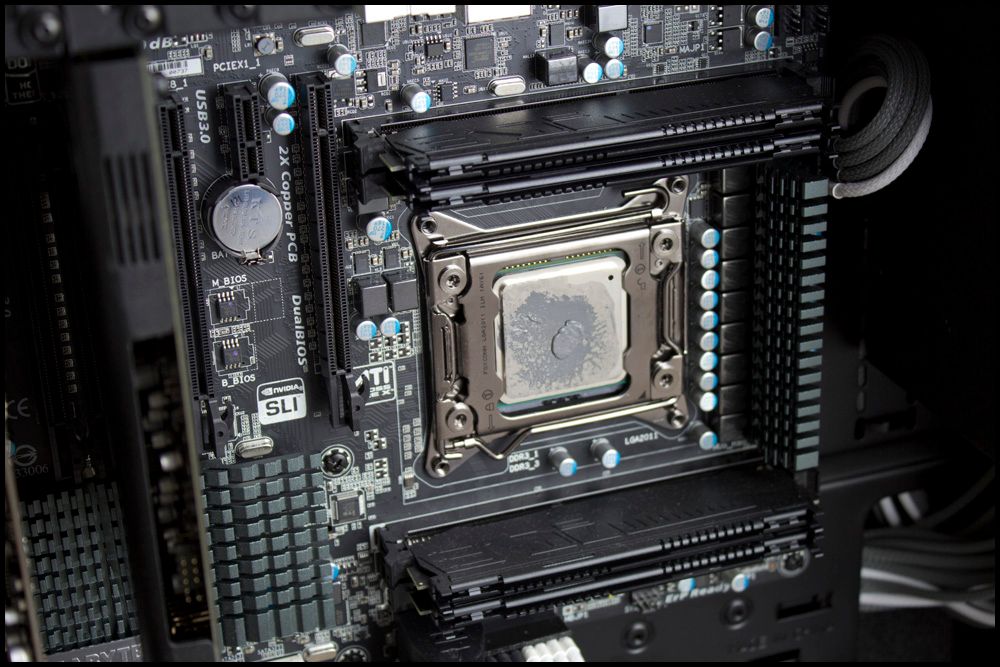

Removed the logos on the ram. Love the way it looks now.

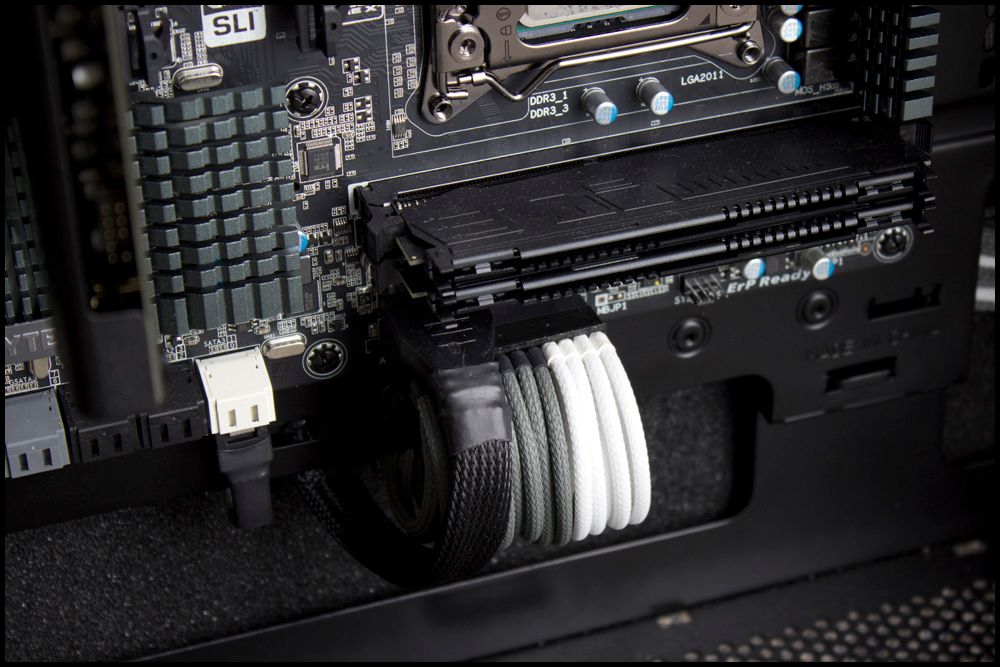

DO NOT WANT. Will be re doing the USB3.0 cable. I do not want to use black, however I can't find any white heatshrink or grey sleeving that will fit it.



[Shrak]

Wow that's a horrid place for the USB3.0 header.

Definitely subbing

Depending on how my check is this week I may make my thread too.
