Discussion Starter · #1 ·
Quote:

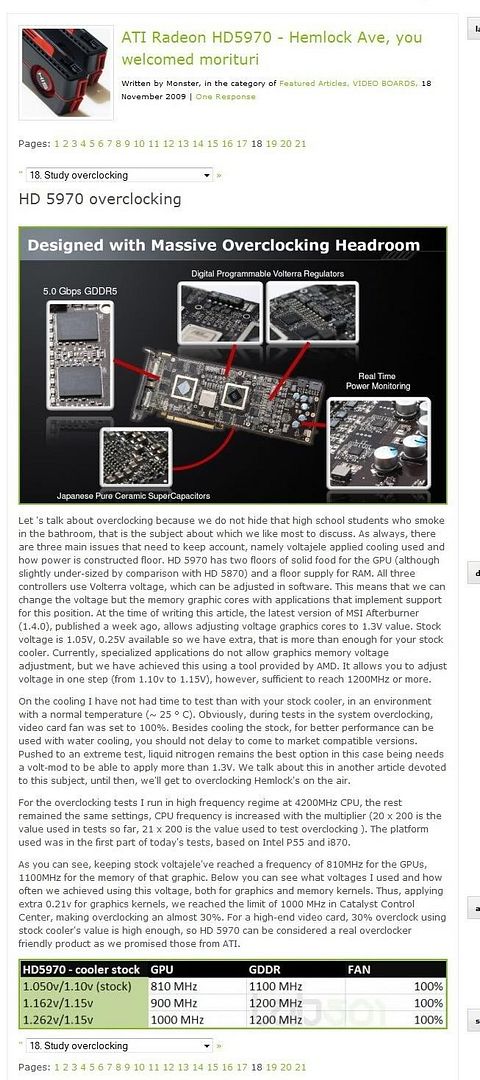

ATI Radeon HD5970

This time we start a very optimistic note. You probably remember how angry I was at the launch of 5870's. Sample sites were not enough, your timing was terrible, we were angry, etc. Well, down hat in front of the AMD & His Gentlemen, this time things stayed very different. Besides sample sites were on time, their number was at least the number of older publications in Romania. Yes, well, I know that does not mean very much, but when AMD has not less than two sample sites and HIS raises with two, provided we are talking about a very expensive product and we are in Romania, like you grow so little heart in the chest. Okay, now imagine that we have seized on all, not what I mean when you refer to the number of sample sites. However, if in Romania there in the first 4 sample sites Hemlock, my personal stuff gives me hope. Okay, not one to import trucks from Hemlock's starting with today, that still talk about a product with a price on its performance measure, but I hope those fools who will want this beast will have to where a buy will not have to give Acatiste to church or to stand in line to catch a copy. And if we think how beautiful covered market with no less than 5 performance products that address a very large range of customers, in less than two months, then that white ball is actually a very large Bilo. Well done AMD!

Google Translated Source
note: site is slow, probably getting many hits at this time.

Good overclocking in this review. Can you say 1Ghz!











·
Junglist
Joined
·
7,233 Posts
1GHZ!!!

Nice review


·
Registered
Joined
·
3,735 Posts
yo... 1GHZ!!! w00t!


·
Premium Member
Joined
·
4,727 Posts
Discussion Starter · #5 ·
If I'm not mistaken, Ati gave the card less stock voltage than a 5870, so the card just needed to up the volts to get the clocks up over 800mhz. Correct me if I'm wrong.


·
Premium Member
Joined
·
3,650 Posts
apparently this card sports 2x ''cypress XT'' GPUs, the stock clocks for the ''XT'' are (875/5200), so we can assume these are the chips & IC's real clocks...

so hypothetically, this card will outperform the CFX 5870s


·
Registered
Joined
·
1,582 Posts
Quote:


Originally Posted by rico2001
View Post

If I'm not mistaken, Ati gave the card less stock voltage than a 5870, so the card just needed to up the volts to get the clocks up over 800mhz. Correct me if I'm wrong.

I noticed that as well. 1.05v on the core at stock. Very nice.


·
Registered
Joined
·
1,723 Posts
Quote:


Originally Posted by rico2001
View Post

If I'm not mistaken, Ati gave the card less stock voltage than a 5870, so the card just needed to up the volts to get the clocks up over 800mhz. Correct me if I'm wrong.

That whole power limitation on PCIe 1.0 slots or something... They had to down the voltage so it could get enough power from Gen 1 slots. Gen 2 slots should be able to go nuts with the voltage/OCing. You're right though.

I think that's also why there was that 10mhz OCed 5970 from Sapphire.


·
Premium Member
Joined
·
3,650 Posts
Quote:


Originally Posted by Rpg2
View Post

That whole power limitation on PCIe 1.0 slots or something... They had to down the voltage so it could get enough power from Gen 1 slots. Gen 2 slots should be able to go nuts with the voltage/OCing. You're right though.

I think that's also why there was that 10mhz OCed 5970 from Sapphire.

please can you elaborate on this...???, where did you hear this..??


·
Premium Member
Joined
·
4,727 Posts
Discussion Starter · #10 ·
Quote:


Originally Posted by sodaholic134
View Post

I noticed that as well. 1.05v on the core at stock. Very nice.


Yea soda. stock voltage for a 5870 is 1.16v and the 5970 apparently was given 1.05, again most likely to keep it under 300W or close to it.

5850 = 1.089v
5870 = 1.162v
5970 = 1.05v


·
Registered
Joined
·
1,582 Posts
Quote:


Originally Posted by skunksmash
View Post

please can you elaborate on this...???, where did you hear this..??


PCI-E 2.0 slots can provide 150W to the graphics cards. Pci-e 1.x can only provide half that. So...PCI-E 1.x slot (75W) + 6-pin (75W) + 8-pin (150W) = 300W. Hence, the reason ATI underclocked it to be right under the 300W limit. 294W is the max for the 5970, I believe.

So, most people have a pci-e 2.0 slot (and basically everyone who is buying this card does / should) and that means they should have about a good 50W+ of overclocking headroom.


·
Premium Member
Joined
·
3,650 Posts
Quote:


Originally Posted by sodaholic134
View Post

PCI-E 2.0 slots can provide 150W to the graphics cards. Pci-e 1.x can only provide half that. So...PCI-E 1.x slot (75W) + 6-pin (75W) + 8-pin (150W) = 300W. Hence, the reason ATI underclocked it to be right under the 300W limit. 294W is the max for the 5970, I believe.

So, most people have a pci-e 2.0 slot (and basically everyone who is buying this card does / should) and that means they should have about a good 50W+ of overclocking headroom.



.......my board is pcie 1.1


so that means, i'll be fine at stock speeds..... but it wont clock at all.


there's always something..


·
Registered
Joined
·
3,735 Posts
Quote:


Originally Posted by skunksmash
View Post

.......my board is pcie 1.1


so that means, i'll be fine at stock speeds..... but it wont clock at all.


there's always something..

you could get a cheap new motherboard with PCI-e 2.0


On topic: There's something that worries me about this card: it is supossed to be faster than the GTX 295 by a large margin, and to be honest, with this review, I haven't seen that. Which means, that Fermi might be much faster than the HD5970...

We'll have to see anyway.


·
Premium Member
Joined
·
3,650 Posts
Quote:


Originally Posted by Icekilla
View Post

you could get a cheap new motherboard with PCI-e 2.0


sigh........im gonna be remortgaging my house to grab a 5970 anyway, the thought of then stripping out the board & finding a load more cash to replace it is out of the question..


looks like the 5870 could be taking its place...


·
Registered
Joined
·
4,497 Posts
Link is dead.

Quote:


This Account Has Been Suspended



·
Registered
Joined
·
3,735 Posts
crap... well... how large is this thing and, on which cases is it gonna fit?
