[Guamon]

Temps of E6750 w/ Push-pins (If you can't see it clearly, scroll down)

The Products

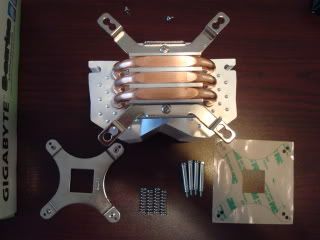

The Parts:

Retention Bracket

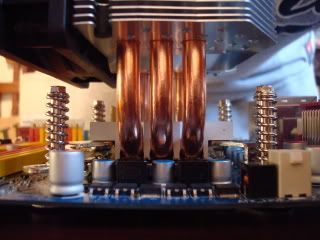

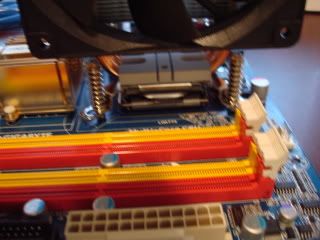

Finished

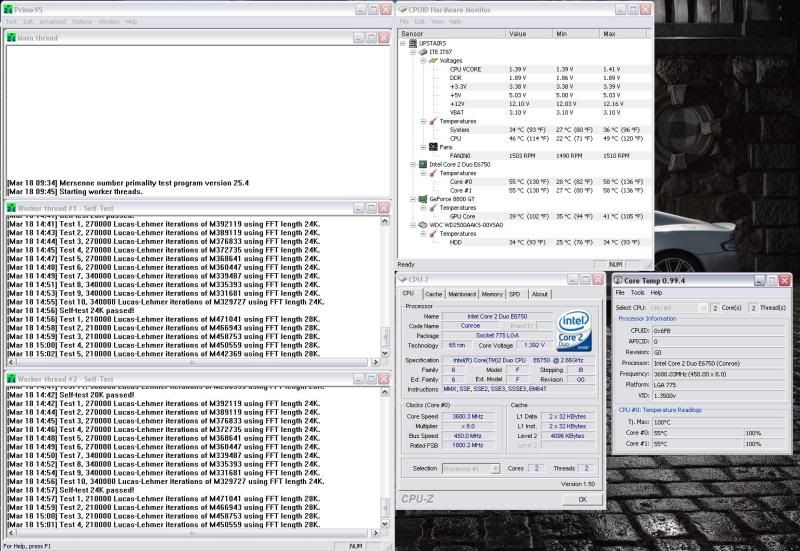

Tests (Check thumbnails, the second one)

Conclusions
3.6 w/o Retention Brakets -> Idle - 30C Load - 57C

3.6 w/ Retention Brakets --> Idle - 27C Load - 58C

Idle temps are better by 3C but load tems are up by 1C. I think I didn't apply thermal paste correctly thats why load temps are 1C higher. Not too bad, could be better. If I have time I might reapply TIM. Thanks guys for staying tuned. Now i'm gonna go for 4.0GHz



[francesthemutes]

Subscribed! I'm really interested in the results as I'm planning on getting a retention bracket at some point.



[happyxix]

Interesting. I just bought the xigamatech one for my vendetta. Haven't test it yet but much more secure than push pins. Waiting for your results =]



[Jolly-Swagman]

Will be interested to see the results too, as I Fabricated my own bolt thru retention backplate mod, as per link in sig.



[skorched]

I use the Xigmatek bracket for my Vendetta 2, works great. I'll be checking back here later.



[dogshome]

Sexy bracket

I had to cut some off the black part of my pushpins to stop the thing bending my board severely! So this looks a much better job.

The base of my cooler (Gladiator Max) was not very flat - how was your Vendetta?



[poohball]

it will work, OCZ heatsink made by Xigmatek.



[francesthemutes]

Hey Guamon, are your tests done yet? I'm looking forward to the results!



[Guamon]

Finished testing check OP. Now i'm going for 4.0GHz hopefully



[francesthemutes]

Hmm, doesn't look to be a large improvement...



[Guamon]

Quote:

Originally Posted by francesthemutes Hmm, doesn't look to be a large improvement...

It looks nice though

and less mobo bending.
