**Official** ASRock Z77 Discussion/Owners Club

Spoiler: Motherboards

Z77E-ITX
Z77 Pro4
Z77 Pro4-M
Z77 Extreme4
Z77 Extreme4-M
Z77 Extreme6
Z77 Extreme9
Fatal1ty Boards
Fatal1ty Pro
Fatal1ty Pro-M
Fatal1ty Performance

Spoiler: Reviews

Review by our very own Erakith
for Z77 Extreme 6
OCN Review of Z77 Extreme4
OCN Member z77 Extreme4

Spoiler: Fixes&Getting Stable Help

Video Card Not being Recognized:
First use onboard graphics to update bios to newer version.

Idle BSOD's when stable in prime/other stress test:
If all else fails, start lowering your VTT. Many have achieved success with this.

Spoiler: Overclocking

aar0nsky 4.6GHz BIOS Settings
BSOD List

Ivy Bridge ASRock Guide
Ivy Bridge OC Guide(also with LN2)
Ivy Bridge Stable Club
ASRock z77 24/7 Club

Spoiler: BIOS's

Coming Soon best BIOS for each board.

Spoiler: Members

aar0nsky
punceh
darksen
conwa
.theMetal
Jocelyn84
Goodfella
Atlas101
Swiftdeathz
Cirdan
Shrak
jrcbandit
malikq86
tbris84
Jamar16
Erakith
sdmodified
iamjon
Chewy
dajez

Spoiler: Signature(Thanks to Big Shabazz)

ASRock Z77 Owners Club

Code:

[center][b]<a href="http://www.overclock.net/t/1254599/official-asrock-z77-discussion-owners-club">[COLOR=#DF0101]AS[/COLOR][color=#000000]Rock[/color][color=#424242][size=4] Z77[/size][/color][color=#000000] Owners Club[/color][/b][/center]

This club will be for sharing information, BIOS's, bugs, and anything else about the ASRock Z77 motherboards.
Anyone that has one is welcome to join and add the link to your signature.
Also PM me if you have information to add to this page.
I am an ivy bridge guy so if you sandy guys can send me links to post I would appreciate it.
I will update this as much as possible.

Ask questions, share information, drink beer.



[darksen]

Nice!! haha, what timing right?

I have asrock z77 extreme4 with 3570k, want to see if there are any tips and tricks to OC.

Currently at 4.5ghz LLC lv1 with 1.24 stable. Still not too happy with these numbers yet, anyone have better luck with them?



[aar0nsky]

Quote:

Originally Posted by darksen

Nice!! haha, what timing right?
I have asrock z77 extreme4 with 3570k, want to see if there are any tips and tricks to OC.
Currently at 4.5ghz LLC lv1 with 1.24 stable. Still not too happy with these numbers yet, anyone have better luck with them?

Yes the timing lol

Another member with the same setup as you and I were collaborating about making a club just before your post.

There are alot of us with a 3570k and extreme4.

I managed to get to [email protected] 1.28. Pretty much every setting on auto except the following:

CPU Ratio(multi) : 46
Additional turbo voltage: .004V
LLC : Level 1
Vcore : 1.28

The numbers I used as a guide getting to 4.6 are in the original post, the ivy bridge overclocking guide.



[conwa]

Nice, i was waiting for this!

Getting my Asrock z77 extreme4 tomorrow and im very curious what it will bring me.
I hope it wont do much less then my Asus gene-z.
I was really done with the slow boot and strange mobo temps with fans attached to my boards fan headers..
I did 4.8 @ 1.28 volt on my 2500K.

Fingers crossed!



[darksen]

Quote:

Originally Posted by aar0nsky

There are alot of us with a 3570k and extreme4.

I managed to get to [email protected] 1.28. Pretty much every setting on auto except the following:
CPU Ratio(multi) : 46
Additional turbo voltage: .004V
LLC : Level 1
Vcore : 1.28
The numbers I used as a guide getting to 4.6 are in the original post, the ivy bridge overclocking guide.

microcenter deal too good to pass up.

Hmm, in your OP thread, the link to the OC guide is directed to a post in page 9, any specific reason?



[aar0nsky]

Quote:

Originally Posted by conwa

Nice, i was waiting for this!
Getting my Asrock z77 extreme4 tomorrow and im very curious what it will bring me.
I hope it wont do much less then my Asus gene-z.
I was really done with the slow boot and strange mobo temps with fans attached to my boards fan headers..
I did 4.8 @ 1.28 volt on my 2500K.
Fingers crossed!

Yeah this thing boots super fast.

Quote:

Originally Posted by darksen

microcenter deal too good to pass up.
Hmm, in your OP thread, the link to the OC guide is directed to a post in page 9, any specific reason?

Yeah out the door at microcent i payed 296.16 i believe for the 3570k and the extreme4.

The reason for that was I copied the url from my subscriptions page lol. Its fixed now.



[darksen]

I got lucky I woke up early that day and MC was shipping

Spoiler: Warning: Spoiler!

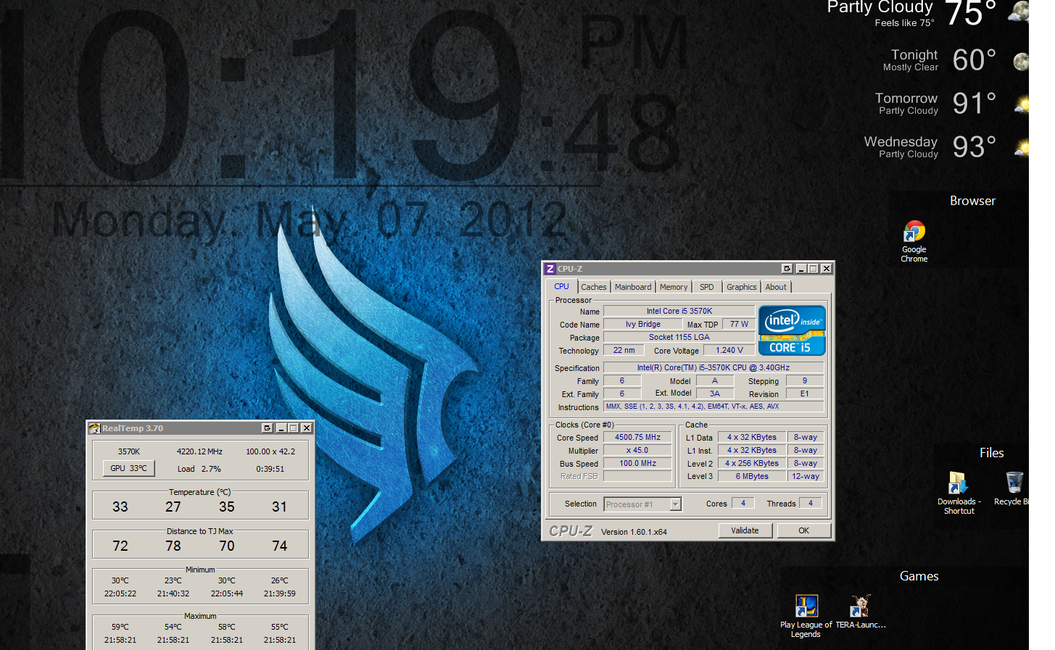

current spects:

Spoiler: Warning: Spoiler!



[.theMetal]

I like this. and again another 3570k +z77 extreme4

wont get it till this weekend unfortunately



[Jocelyn84]

Quote:

Originally Posted by aar0nsky

Yeah this thing boots super fast.

15 second cold boot starts. Five until post ( before monitor turns on) and only ten until you hit the desktop

Why isn't the Z77E-ITX listed? I'm still trying to decide which board to keep, but leaning towards the Asrock.



[darksen]

how are you liking the ITX? specs similar to the extreme series?



[aar0nsky]

Quote:

Originally Posted by Jocelyn84

15 second cold boot starts. Five until post ( before monitor turns on) and only ten until you hit the desktop
Why isn't the Z77E-ITX listed? I'm still trying to decide which board to keep, but leaning towards the Asrock

I will add it. Didn't see the itx boards as overclock boards but I guess people will try anything



[Jocelyn84]

Quote:

Originally Posted by darksen

how are you liking the ITX? specs similar to the extreme series?

Oh I love it, but more on that in a momemt. I bought both the Z77E-ITX and Asus P8Z77-I Deluxe as seen in my last post. When testing with a 3570K, they both needed 1.3v to hit 4.5Ghz (not the best chip lol). I then did some testing with a 2600K @ 4.5Ghz, and the Asrock board could get through stability with a much lower VCore (1.264 vs. 1.3) compared to the Asus. After doing some comparisons, my system shut down for the second time in a week, sort of like a cold/hard reset (no bluescreen), and I started getting worried about the Asrock board. After doing a bit more testing and realizing the Asus needed more voltage with the 2600K @ 4.5Ghz (1.3 vs Asrock's 1.264 with all LLC/Vdroop settings the same), I'm now concluding that the Asrock shut down due to the lack of voltage. I couldn't even boot into Windows with the Asus without providing 1.288, and it needed a little more voltage for stability, so lack of voltage clearly must have been the reasoning for the sudden non blue screen shut down while using the Asrock. Apart from that, I like a lot of things about the Z77E-ITX. It has a lot less overclocking features in the UEFI, but that only makes the overclocking process simpler. Moreover, all the extra eye candy Asus provides (Digi+ VRM, etc.,) doesn't seem to do a damn thing when it comes to overclocking potential. Next the Asrock cold boots in 15 seconds, while the Asus takes 25 or so. The Asrock also provides slightly better SSD benchmark performance, has a better layout for internal neatness, Good Night LED (love this), simpler overclocking (mentioned above), and of course it's less expensive. I have another 3570K coming tomorrow and plan to do some more comparing but I'm currently leaning towards the Asrock. Hope it's okay I sort of did a comparison

Quote:

Originally Posted by aar0nsky

I will add it. Didn't see the itx boards as overclock boards but I guess people will try anything

Thank you and the ITX boards overclock just as well as the other boards. In fact, the Z77E-ITX has a 6 + 2 Power Phase Design, while the Z77 Pro4, Z77 Pro4-M, and Z77 Extreme4-M only have a 4 + 2 Power Phase Design.



[Hjacobson]

Quote:

Originally Posted by Jocelyn84

I'm still trying to decide which board to keep, but leaning towards the Asrock.

Jocelyn,

Weren't you earlier leaning toward the Asus? What's behind the flip-flops?

If I had both boards to play with I might flip-flop, too. Other things (e.g. build quality) being equal I like the Asrock's price and fast boot. I like the Asus' daughter board and greater number of software and hardware widgets even though I may use but a small fraction of them.

Harry



[Jocelyn84]

Quote:

Originally Posted by Hjacobson

Jocelyn,
Weren't you earlier leaning toward the Asus? What's behind the flip-flops?
If I had both boards to play with I might flip-flop, too. Other things (e.g. build quality) being equal I like the Asrock's price and fast boot. I like the Asus' daughter board and greater number of software and hardware widgets even though I may use but a small fraction of them.
Harry

I mentioned the reason in my last post. I had two fluke hard/cold long resets, which initially had me worried about the Asrock's build quality, but I'm now attributing them to lack of voltage. I needed more voltage just to get into Windows with the Asus board, and even more to pass 12 hours of Prime & plenty of LinX compared to the Asrock. If I had similar voltages using the Asrock, I'm willing to guess those fluke shut downs would have never happened. Going to make my decision after testing with a second 3570K, which arrives tomorrow.



[Goodfella]

Checking in with my Z77E-ITX



[aar0nsky]

Quote:

Originally Posted by Jocelyn84

I mentioned the reason in my last post. I had two fluke hard/cold long resets, which initially had me worried about the Asrock's build quality, but I'm now attributing them to lack of voltage. I needed more voltage just to get into Windows with the Asus board, and even more to pass 12 hours of Prime & plenty of LinX compared to the Asrock. If I had similar voltages using the Asrock, I'm willing to guess those fluke shut downs would have never happened. Going to make my decision after testing with a second 3570K, which arrives tomorrow.

you have sparked my interest in ITX. Although I probably wont get one right now, I may use one in the next build for my fiance.



[Jocelyn84]

Quote:

Originally Posted by Goodfella

Checking in with my Z77E-ITX

Welcome! I really do like the board.
Quote:

Originally Posted by aar0nsky

you have sparked my interest in ITX. Although I probably wont get one right now, I may use one in the next build for my fiance.

Get her an SG05 and GTX 680 too! lol



[Atlas101]

Quote:

Originally Posted by aar0nsky

Yes the timing lol
Another member with the same setup as you and I were collaborating about making a club just before your post.
There are alot of us with a 3570k and extreme4.
I managed to get to [email protected] 1.28. Pretty much every setting on auto except the following:
CPU Ratio(multi) : 46
Additional turbo voltage: .004V
LLC : Level 1
Vcore : 1.28
The numbers I used as a guide getting to 4.6 are in the original post, the ivy bridge overclocking guide.

Same setup here; looks like you guys might've gotten lucky? MC cancelled the chip but still sent me the board.

Anyway, I'm new to OCing a Sandy or Ivy. I'm coming from Conroe so its been awhile.

At 4.4, 1.25V, LLC 1 I seem to be stable when using Prime, my issue though is when the volts come back down...I get locked up frequently..Ill have to check my addition turbo voltage (might be set to auto); shouldnt we just turn that off if we dont want the fluctuation in voltage?



[aar0nsky]

Quote:

Originally Posted by Atlas101

Same setup here; looks like you guys might've gotten lucky? MC cancelled the chip but still sent me the board.
Anyway, I'm new to OCing a Sandy or Ivy. I'm coming from Conroe so its been awhile.
At 4.4, 1.25V, LLC 1 I seem to be stable when using Prime, my issue though is when the volts come back down...I get locked up frequently..Ill have to check my addition turbo voltage (might be set to auto); shouldnt we just turn that off if we dont want the fluctuation in voltage?

We cannot turn turbo mode off in asrock bios. Make sure speedstep is disabled and make sure on the advanced cpu screen thermal throttling is disabled to remove the throttling of voltage and frequency.



[Atlas101]

Quote:

Originally Posted by aar0nsky

We cannot turn turbo mode off in asrock bios. Make sure speedstep is disabled and make sure on the advanced cpu screen thermal throttling is disabled to remove the throttling of voltage and frequency.

Nice, I'll start there.. Thx bud.
