Thanks! I'd always found their product line confusing. This makes it clearer. +rep.
P45 motherboard selection chart (Gigabyte & Asus)
Given the overwhelming diversity of P45 based motherboards, I thought it would be helpful to have a selection chart for all motherboards that use this chipset.
I started by sorting the offering by Gigabyte, grouping first by memory type, number of PCI-E x16 slots (crossfire capability), and RAID support.
***Edit*** Added charts for Asus

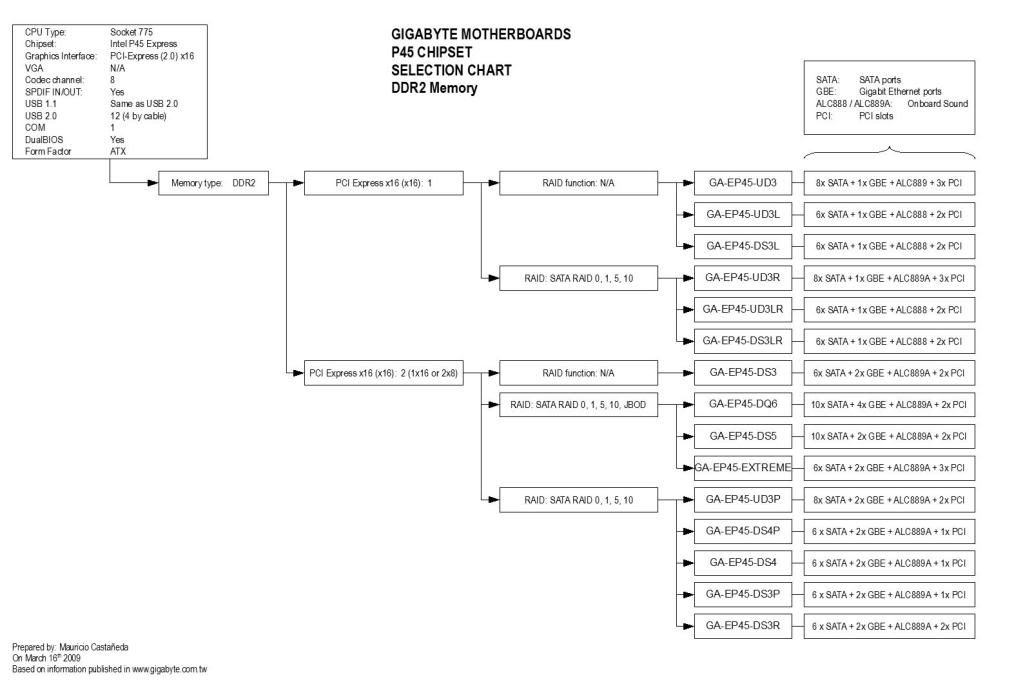

This chart sorts the Gigabyte motherboards that are designed solely for DDR2 memory
![]()
This one sorts the Asus motherboards that are designed solely for DDR2 memory
![]()
This one sorts the Gigabyte motherboards designed for DDR3 memory and combined for DDR2 & DDR3 memory
![]()
Finally, this one sorts the Asusmotherboards designed for DDR3 memory and combined for DDR2 & DDR3 memory
![]()
For future reference, these charts were prepared based on the product comparison sheet as published by gigabyte's website on March 16th 2009.
For Asus, the data was obtained on MArch 16th 2009, from http://usa.asus.com/products_compare.aspx
When a same model was published in Gigabyte's website with more than 1 revision, I only considered the latest.
I started by sorting the offering by Gigabyte, grouping first by memory type, number of PCI-E x16 slots (crossfire capability), and RAID support.
***Edit*** Added charts for Asus
This chart sorts the Gigabyte motherboards that are designed solely for DDR2 memory
This one sorts the Asus motherboards that are designed solely for DDR2 memory
This one sorts the Gigabyte motherboards designed for DDR3 memory and combined for DDR2 & DDR3 memory
Finally, this one sorts the Asusmotherboards designed for DDR3 memory and combined for DDR2 & DDR3 memory
For future reference, these charts were prepared based on the product comparison sheet as published by gigabyte's website on March 16th 2009.
For Asus, the data was obtained on MArch 16th 2009, from http://usa.asus.com/products_compare.aspx
When a same model was published in Gigabyte's website with more than 1 revision, I only considered the latest.
4
1 - 4 of 4 Posts
Quote:
Well, the sole difference between these 2 motherboards is that the EP45-UD3P is made for DDR2 while the EP45T-UD3P is made for DDR3.
I would think that they have different overclocking abilities, since frequencies are different between DDR2 and DDR3.
Originally Posted by Al plants Corn  So does the EP45T-UD3P overclock just as good as the the EP45-UD3P? |
I would think that they have different overclocking abilities, since frequencies are different between DDR2 and DDR3.
