PROJECT NAME " SCARLET"

Scarlet (from the Persian säqirlāt) is a bright red color with a hue that is somewhat toward the orange. It is a pure chroma on the color wheel. It is redder than vermilion. Traditionally, scarlet is the color of flame. It may also refer to the color of the blood of a living person

Special thanks to Ken Carter Of Wardjet for working on SCARLET's sidepanel. http://wardjet.com

THANK YOU KEN FOR MAKE THIS HAPPEN!

HERE'S A VIDEO OF SCARLET'S SIDE PANEL GETTING CUT WARET-JET STYLE!

YouTube- WARDJet - Overclock.net - Scarlet - Waterjet cutting a Computer Case -

PICTURES / UPDATES DIRECTORY!:

1st UPDATE--- Tear down for Powder coating!
2nd UPDATE--- Custom Backplate getting fitted and hard drives go in the back side!
3rd UPDATE--- got it back from TDN, planning out for the dual loop watercooling
4th UPDATE--- ARTIC ram sink, to coat? or not to coat?

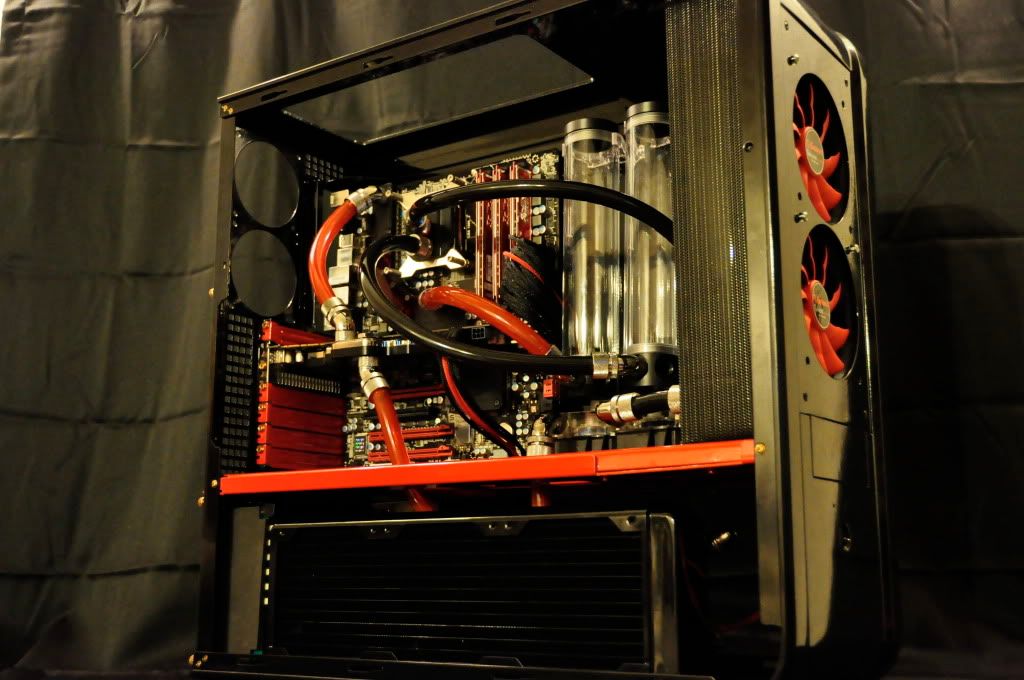

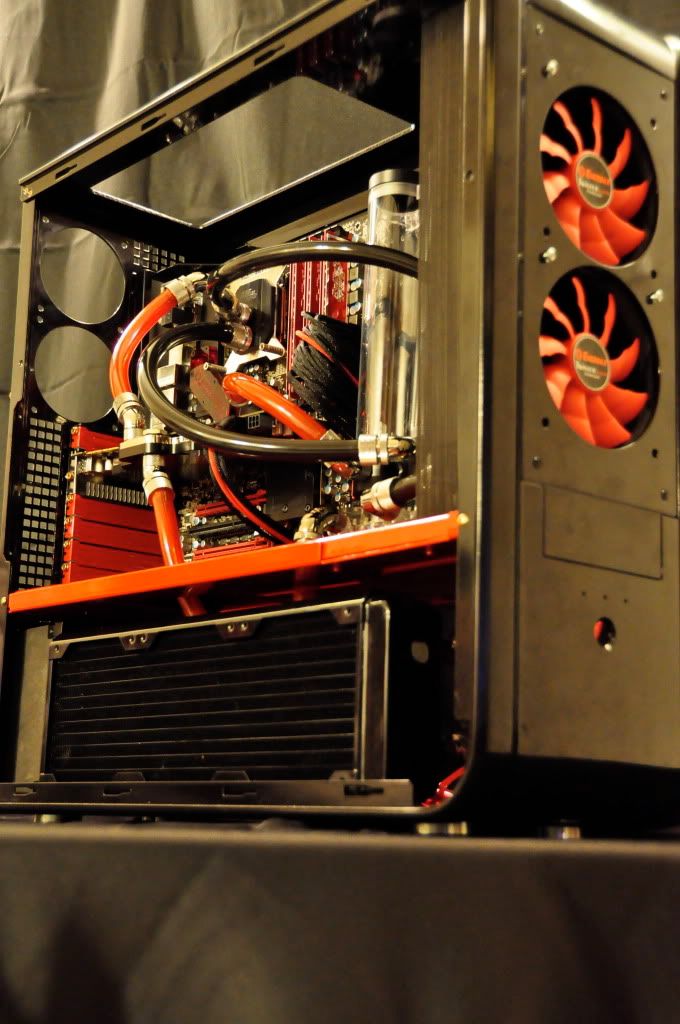

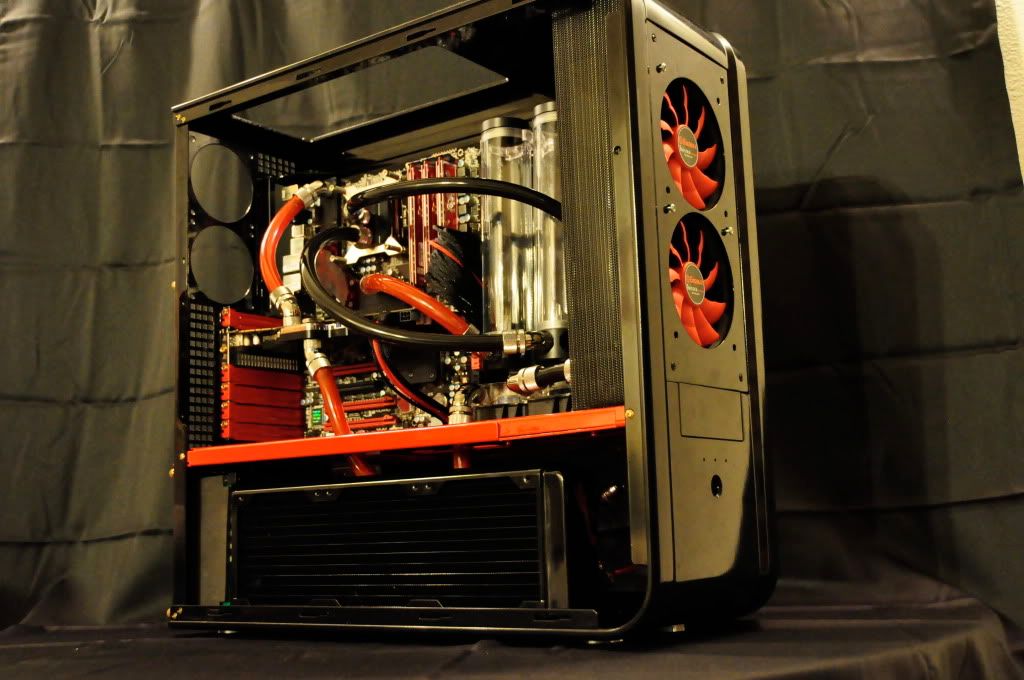

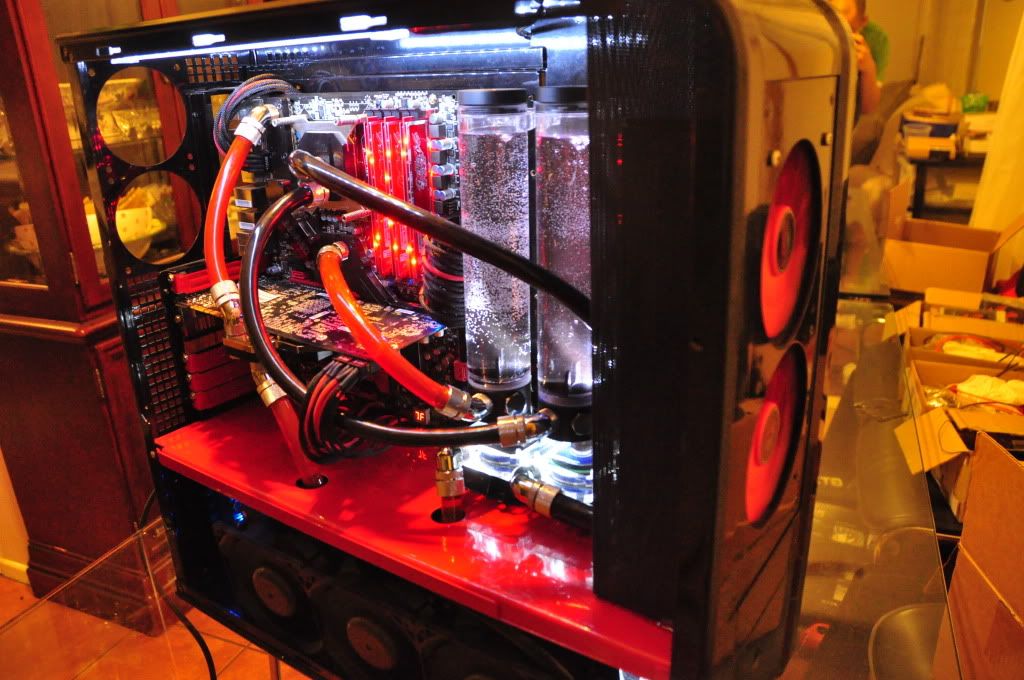

5th UPDATE--- Water Cooling Getting retro fitted!
6th UPDATE--- Water-Jet Custom Side PANEL!
7th UPDATE--- EK Classified Full Board Solutions Water Block Get's installed!
8th UPDATE--- Heatkiller Block, Artic Ramsinks, more tubing, more stuff!!
9th UPDATE--- Fan Controller assembly, mesh cage for gtx240
10th UPDATE--- SCARLET STENCIL GETS CUT water-jet style
11th UPDATE--- MOAR Unfinished pics lol

MORE TO COME!



[oblivion.sky]

Getting Prepped for POWDER COATING BABY!

WOW, i was surprised when i saw these pics!

The RED part is done!

AND NOW! the GOLDEN screws!!!

No words for this but DAYYUUUM

HERE WE GO!

Powder coating of all parts is now DONE

OK now the bare custom front panel and the midplate is getting fitted.

we might trash this aluminum front and midplates for acrylic/plexi ones..

especially for the front panel becuase theres going to be 2 fan holes

thats going to go there. And a little surprise on the midplate

LATEST UPDATE GUYS!!!

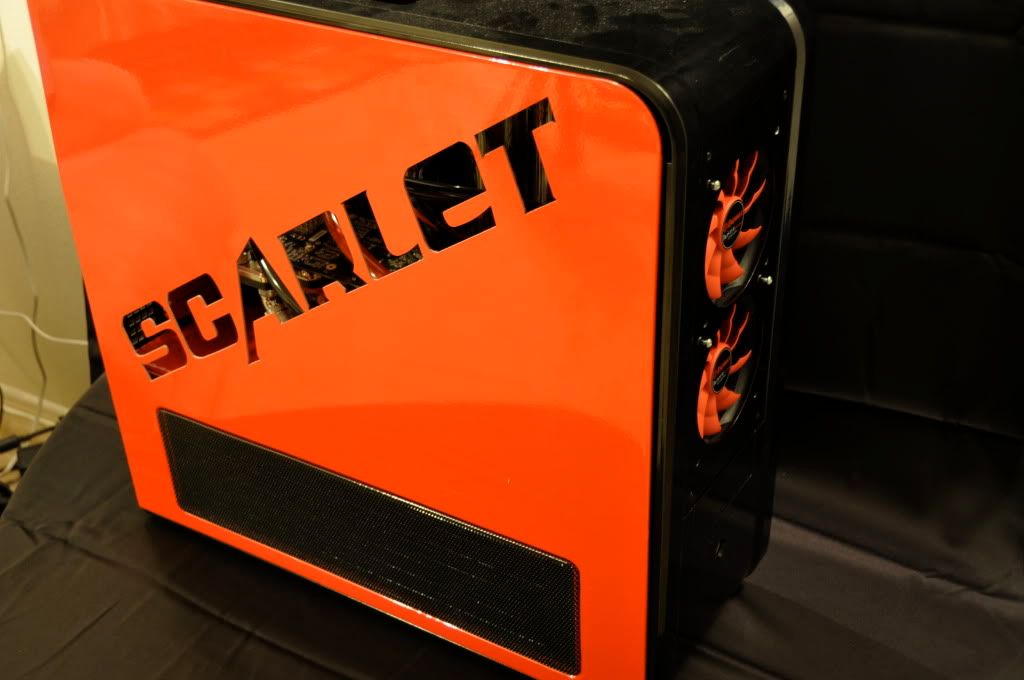

the project name "SCARLET" will machine cut across the side door!

along with a smoked acrylic on the backside? HAWTTTT!!!

any other thought u guys?

FRONT PANEL IS COMING TO LIFEEEE!!!!

IT WILL BE COATED BLACK! WITH RED ENERMAX FANS!



[kidshenlong]

Oooo I like Rep+ Clever, I like your labelling system btw!!



[kidshenlong]

And subbed of course.



[unknownSCL]

hmmm.. when can i be expecting this at my doorstep?

subb'd



[oblivion.sky]

Quote:

Originally Posted by unknownSCL hmmm.. when can i be expecting this at my doorstep? subb'd

ill ship it 2nd day air...



[kimosabi]

Oooh, another TJ07 build! *subbed*

I am a bit worried about powdercoating the side grilles though. It fills quite good. Those holes are small enough as it is IMO.



[noahmateen1234]

Where are you going to mount your rads and pumps? What are the ones your using btw?



[oblivion.sky]

Quote:

Originally Posted by kimosabi Oooh, another TJ07 build! *subbed* I am a bit worried about powdercoating the side grilles though. It fills quite good. Those holes are small enough as it is IMO.

hmmm should i just paint them myself?

im no expert on tj07'ssss so please advise.

thanks!



[oblivion.sky]

Quote:

Originally Posted by noahmateen1234 Where are you going to mount your rads and pumps? What are the ones your using btw?

a gtx 240 rad on top just like the tj07 from sirilian

and a gtx 360 on the bottom.



[kimosabi]

Quote:

Originally Posted by oblivion.sky hmmm should i just paint them myself? im no expert on tj07'ssss so please advise. thanks!

As far as the grilles go, yes. That's what I would do. Paint doesnt fill as much as powdercoating does and those vent-holes are small man.

Another thing you may consider(if you haven't already) is to plug every threaded hole you're going to use. The powdercoat get's hard as stone and it would be a PITA to clean up the threading afterwards. That stuff gets in everywhere.
Put a piece of masking tape or whatever in there before powder is applied.

Good luck on the build! I'll be following this one. Looove the TJ07.



[oblivion.sky]

Quote:

Originally Posted by kimosabi As far as the grilles go, yes. That's what I would do. Paint doesnt fill as much as powdercoating does and those vent-holes are small man. Another thing you may consider(if you haven't already) is to plug every threaded hole you're going to use. The powdercoat get's hard as stone and it would be a PITA to clean up the threading afterwards. That stuff gets in everywhere. Put a piece of masking tape or whatever in there before powder is applied. Good luck on the build! I'll be following this one. Looove the TJ07.

ohhhh, sweet, thanks! i guess i should get the nuts and bolts annodized rather than powdercoated.

that was great help thanks!



[kimosabi]

Quote:

Originally Posted by oblivion.sky ohhhh, sweet, thanks! i guess i should get the nuts and bolts annodized rather than powdercoated. that was great help thanks!

I didn't mean it that way. I meant the holes, with threads, the ones you screw stuff into. With bolts.
Sorry if I wasn't clear enough.

But I second your anodizing plan. A nice gold, smoke or brass anodized finish would look sweet.



[oblivion.sky]

Quote:

Originally Posted by kimosabi I didn't mean it that way. I meant the holes, with threads, the ones you screw stuff into. With bolts. Sorry if I wasn't clear enough. But I second your anodizing plan. A nice gold, smoke or brass anodized finish would look sweet.

oh yeah i totally get what you mean, that being said i got concerned about the screws and bolts that will get powdercoated.. gold is i nice color for screws! sweet... thanks again



[oblivion.sky]

going out today for Powder coating!!! thanks to artisan TDN1979 for accepting the project!

Gloss Red and Gloss Black color scheme

with peripherals coated with GOLD! <- thanks to kimosabi for the suggestion.

I hope our artisan do a good job!



[kimosabi]

Like the colorscheme man! Epic incoming!



[TDN1979]

Sorry I just now got to this thread. The powder, as long as it's not really thick, will flow out just fine on those grills. You would be surprised at just how small of a hole you can make with it. But, they will get a little smaller. There is a deal called a Farade cage effect where it won't let the charged powder in tight spots unless you know how to get it in there. This will help with keeping the holes open.

The screws are going to be done in a candy gold that will show the chrome of the heads really well. I will do what I can to make this look the best I can as I do with any job. I look forward to getting it and making this happen.



[oblivion.sky]

Quote:

Originally Posted by TDN1979 Sorry I just now got to this thread. The powder, as long as it's not really thick, will flow out just fine on those grills. You would be surprised at just how small of a hole you can make with it. But, they will get a little smaller. There is a deal called a Farade cage effect where it won't let the charged powder in tight spots unless you know how to get it in there. This will help with keeping the holes open. The screws are going to be done in a candy gold that will show the chrome of the heads really well. I will do what I can to make this look the best I can as I do with any job. I look forward to getting it and making this happen.

wOOOHO!!! go artisan!



[oblivion.sky]

tryna come up with a name for her...

red tide or red scarlet?



[TDN1979]

LMAO, I will prolly think of one when I'm coating it but I won't be able to post it here

. I will try to think of something though.
