120mm fans for radiator around 2000 RPM min. loud max. air flow.

8.5K views 29 replies 14 participants last post by  Kashtan
#1 · (Edited)
What is better 120mm fans for radiator around 2000 RPM min. loud max. air flow?
Few opinions:
SilentWings 3 120mm PWM high-speed (BL070) 2200 RPM
NoiseBlocker 12038-2800-12
Gentle Typhoon 1850, 120mm (D1225C12B5AP-15)
Gentle Typhoon 2150
Noctua NF-A12x25 PWM 2000 rpm
Noctua NF-F12 industrialPPC 750-3000rpm
Air Series™ SP120 PWM High Performance Edition High Static Pressure 2350 RPM
SKU CO-8950002 Hydro Series™ H80i/H100i SP120L 2700 RPM Replacement PWM Fan
Arctic BioniX P120 2100 rpm
TOUGHFAN 12 Turbo High Static Pressure Radiator Fan CL-F121-PL12GM-A 2500 R.P.M
EK-FURIOUS MELTEMI 3500 rpm

All info is below.

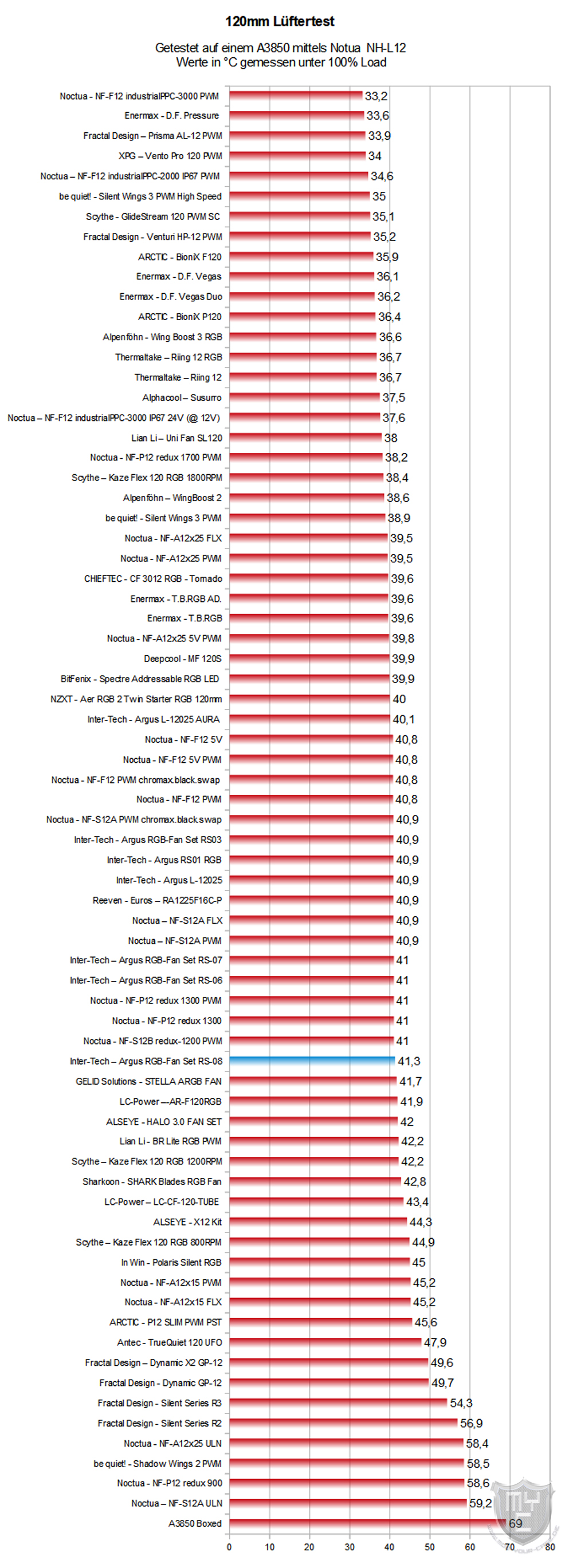

Im to analyse a lot of reviews, example techpowerup.com
CFM 1200dBA 1200CFM 1500dBA 1500
QL12025.934.028.737.1
LL12026.335.530.938
PH-F120MP27.131.831.937.0
HD12027.236.832.139.1
NJORD 12027.335.631.438.1
NF-F12 PWM27.438.732.543.4
NJORD DUAL FIN27.835.233.639.6
Master fan Pro 120 Air pressure27.936.233.139.7
Silent wings 3 120mm high speed28.635.134.239.3
NF-A12x25 PWM28.932.834.436.4
Darkside GT1850 PWM2937.934.342.3
ML120 PRO2935.434.439.7
NF-P12 redux-1700 PWM29.935.735.543
SST-FM12129.940.235.647.8
EK Meltemi 120 ER30.639.736.843.8
EK vardar EVO 120 ER31.239.937.345.3

NF-A12x25 - winner.

Here - Обзор набора вентиляторов Deepcool MF120 GT с адресуемой RGB-подсветкой
NF-A12x25 not better on 25dB for airflow with high pressure then Cooler Master MasterFan MF122R RGB - 28.9 - 30.5 m3h.
Here - Fractal Design Prisma AL-12 PWM - Fan Pack Review
NF-A12x25 the same performance Noiseblocker eloop b12p.
Here - Nous avons essayé • Les Thermaltake Pure 14 aRGB Sync
NF-A12x25 - the same performance NF-S12B Redux (20 - 20.3 temps, 46.5 - 46.7 dB)
Here - Corsair QL120 RGB Review - Benchmarks Thermal Results
NF-A12x25 example versus Arctic Bionix P120 (40.9 - 44.4 temps, 35.5 - 38.9 dB )
Here - Тест и обзор: Corsair iCUE QL120 RGB - 120-мм вентиляторы со всенаправленной подсветкой - Hardwareluxx Russia
NF-A12x25 just best.


Artic f12 and noiseblocker B12-ps better then nf-12x25 - but only on CPU-cooler.
On radiator - dominante of NF-12x25 - undisputed.





Here overclockers.ru
Rad AX-140 Thermaltake.





Attachments

#2 ·
quick warning, the total current of the fans might exceed the rating of the fan header, so adding a fan hub or a splitter that adds a sata or molex power to them might be needed.
the EK-FURIOUS MELTEMI fans are best i have found.

#4 ·
agreed there, i like the pwm making my rad sound like a sports car when it revs up.o_O

#18 ·
Second this. I have 3 NF-F12 3000's on my RAD in a simple push config. They move A LOT of air. They aren't overly loud either for what you're getting. My old Coolermaster fans were just as loud at 2100RPM and were way worse.

#11 ·
Don't buy EK fans. They're a menace to society, i'm not sure about the Meltemi specifically but my experience with 3 versions of the Evo models are that they should all be discontinued and never seen again.

Give the Arctic P12s a shot, otherwise i really like my high speed SW3's. I like them more than any of the Noctua fans i've used, but I've never tried the sterrox ones.. and you probably shouldn't spend twice as much on them anyway.

  • Rep+
Reactions: Shawnb99
#14 ·
SW3 High-speed are good, I have several in my system and happy with their range of performance.

#15 ·
not read a review for the meltemi yet, but
Performance characteristics:
  • Max Air Flow: 121 CFM = 205 m³/h
  • Static Pressure: 7.13mm H2O = 70Pa
is the best i have found so far.

#17 ·
not read a review for the meltemi yet, but
Performance characteristics:
  • Max Air Flow: 121 CFM = 205 m³/h
  • Static Pressure: 7.13mm H2O = 70Pa
is the best i have found so far.
It's typically a good idea not to solely judge a fan, or any product, by it's marketing material. TPU's summation of the performance tests says it best:
"So yeah, looks like EKWB did not strike gold here with the Meltemi. If anything, these tests show that the fan is woeful compared to the 25 mm thick EK-Vardar EVO fans this fan is based off. There is definitely the effect of my testing these fans in a push configuration, which does not help that massive deadspot in airflow in the center owing to the huge motor hub, but regardless, it is a shame to see the fan louder and less effective than an older 25 mm thick fan that even costs less. "

#22 ·
There is absolutely nothing special about the Toughfan. They shouldn't even be mentioned in the same conversation with the NF-A12X25, unless the context is "Tt ripped off the NF-F12X25 look and blade design for the Toughfan, but it's still as disappointing as you would expect a Tt product to be".


#24 ·
I agree about not supporting Thermaltake, but in that video, and these other 3 reviews Toughfan 12 is very close to the Noctua in performance-to-silence ratio.




Granted we need higher quality reviews, but if the Toughfan 12 is cheaper and a person doesn't want Noctua color, nor cares about warranty, there's no reason not to buy.
However, personally I would recommend the Noctua NF-A12x25, more silent(better motor), better warranty, and supporting Noctua.

#26 · (Edited)
Im to analyse a lot of reviews, example techpowerup.com
CFM 1200dBA 1200CFM 1500dBA 1500
QL12025.934.028.737.1
LL12026.335.530.938
PH-F120MP27.131.831.937.0
HD12027.236.832.139.1
NJORD 12027.335.631.438.1
NF-F12 PWM27.438.732.543.4
NJORD DUAL FIN27.835.233.639.6
Master fan Pro 120 Air pressure27.936.233.139.7
Silent wings 3 120mm high speed28.635.134.239.3
NF-A12x25 PWM28.932.834.436.4
Darkside GT1850 PWM2937.934.342.3
ML120 PRO2935.434.439.7
NF-P12 redux-1700 PWM29.935.735.543
SST-FM12129.940.235.647.8
EK Meltemi 120 ER30.639.736.843.8
EK vardar EVO 120 ER31.239.937.345.3

NF-A12x25 - winner.

Here - Обзор набора вентиляторов Deepcool MF120 GT с адресуемой RGB-подсветкой
NF-A12x25 not better on 25dB for airflow with high pressure then Cooler Master MasterFan MF122R RGB - 28.9 - 30.5 m3h.
Here - Fractal Design Prisma AL-12 PWM - Fan Pack Review
NF-A12x25 the same performance Noiseblocker eloop b12p.
Here - Nous avons essayé • Les Thermaltake Pure 14 aRGB Sync
NF-A12x25 - the same performance NF-S12B Redux (20 - 20.3 temps, 46.5 - 46.7 dB)
Here - Corsair QL120 RGB Review - Benchmarks Thermal Results
NF-A12x25 example versus Arctic Bionix P120 (40.9 - 44.4 temps, 35.5 - 38.9 dB )
Here - Тест и обзор: Corsair iCUE QL120 RGB - 120-мм вентиляторы со всенаправленной подсветкой - Hardwareluxx Russia
NF-A12x25 just best.


Artic f12 and noiseblocker B12-ps better then nf-12x25 - but only on CPU-cooler.
On radiator - dominante of NF-12x25 - undisputed.




#28 ·
Hi. What would be the best for pulling air through demciflex filter and then same fans pulling air through the filter pushes through a ek 240 PE radiator? Corsair Obsidian 750D Dust Filter Kit

Something like 3000rpm?

#29 ·
